CSF 060
YUZEY
CSF 060

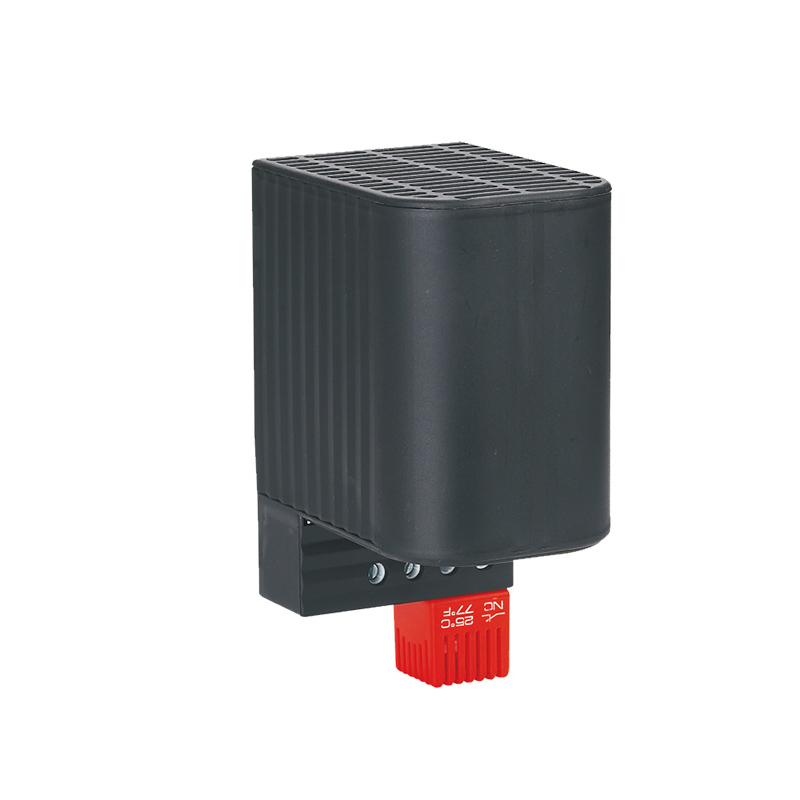

The compact PTC enclosure heater with integrated tamper-proof thermostat provides reliable protection against condensation in enclosures and casings. Practical: The integrated, fixed thermostat makes an external thermostat superfluous. Two tried-and-tested presets are available (switch-off and switch-on temperature: +15 °C and 5 °C; +25 °C and 15 °C).
With integrated tamper-proof thermostat
Safe to touch, low surface temperature
This enclosure heater is designed for continuous operation
PTC heating element
| Operating voltage | 120-240VAC/DC*(min.110V,max.265V) |
| Heating capacity | see table |
| Heater element | PTC resistor-temperature limiting |
| Surface temperature | <80°C((176°F),except upper protective grille |
| Connection | 4-pole terminal 2,5mm²，torpue 0.8Nm max. |
| Casing | Pastic according to UL94-V-0,black |
| Mounting | clip for 35mm DIN rail,EN 50022 |
| Installation position | Vertical |
| Operating/storage tmperature | -20 to+70°C(-4 to +158°F)/-45 to+70°C(-49 to +158°F) |
| Ptotection type/Protection class | IP20/ll (double insulated) |
| Approvals | VDE+UL File No,E15057(according to UL499 in combination with UL508A) |
| Note | other voltages on request |
PRODUCT VARIANTS

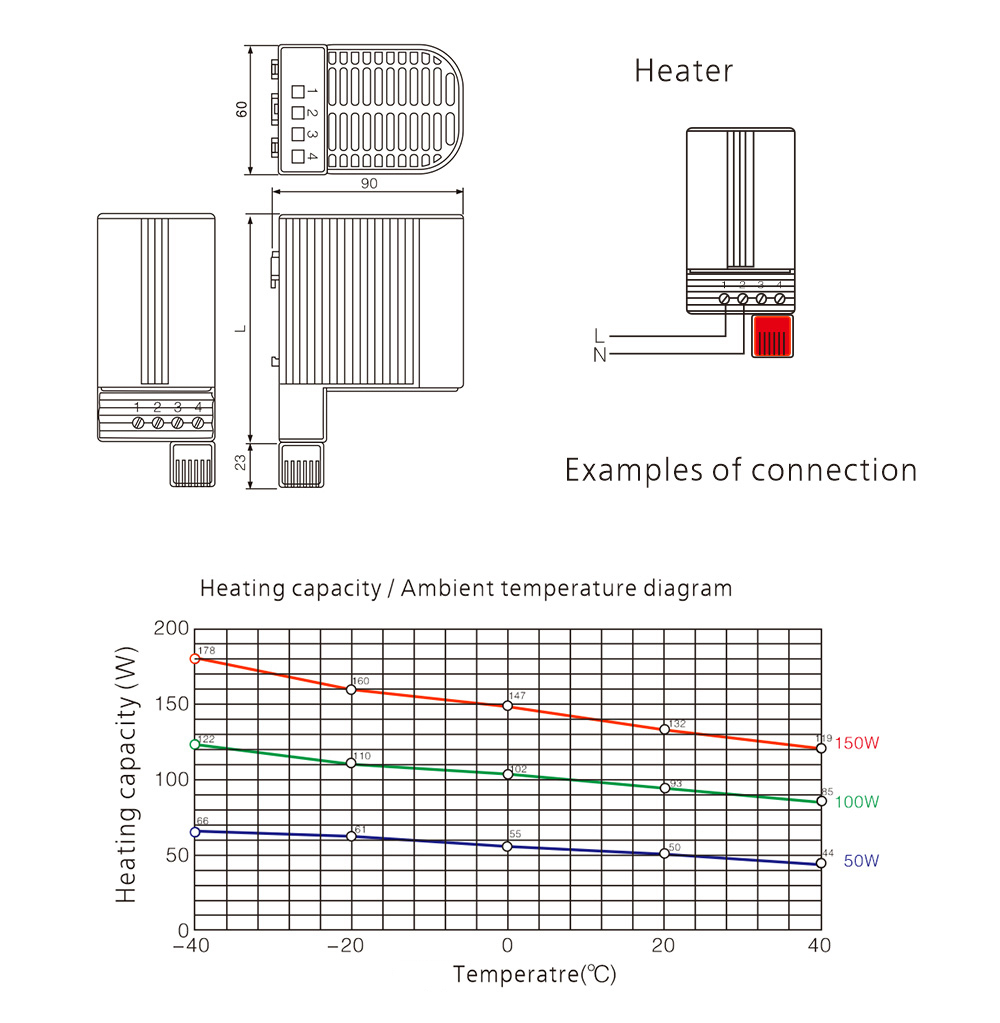

| Art. No. | Heating capacity | Inrush current max | Air outlet temperature | Dimensions | Weight (approx.) |
| 06001.0-00 | 50W | 2.5A | +86℃(186.8°F) | 110x60x90mm | 0.30kg |
| 06002.0-00 | 50W | 2.5A | +86℃(186.8°F) | 110x60x90mm | 0.30kg |
| 06011.0-00 | 100W | 4.5A | +120℃(248°F) | 110x60x90mm | 0.30kg |
| 06012.0-00 | 100W | 4.5A | +120℃(248°F) | 110x60x90mm | 0.30kg |
| 06021.0-00 | 150W | 8A | +145℃(293°F) | 150x60x90mm | 0.50kg |
| 06022.0-00 | 150W | 8A | +145℃(293°F) | 150x60x90mm | 0.30kg |
