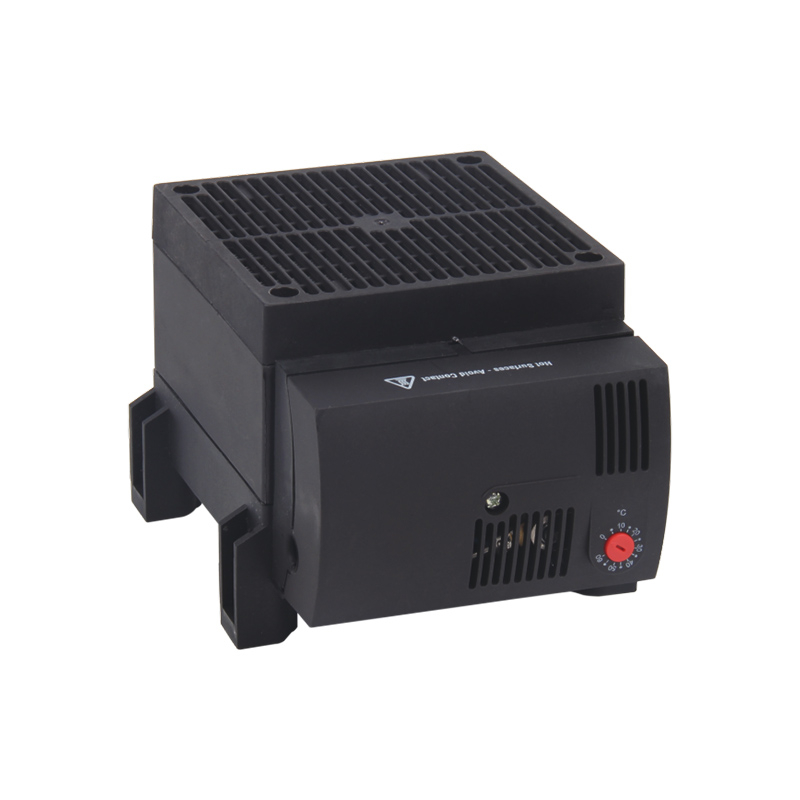

CS 030
YUZEY
CS 030
The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.
The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 030 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fanheater CS 130 is recommended.
Compact design
Double insulated
Integrated thermostat(optional)
DIN rail or screw fixing
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| Axial fan, ball bearing | 160m3/h, free flow |
| service life 50,000h at 25°C(77°F) | |
| Connection | 2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max. |
| torque 0.8Nm max. | |
| Casing | plastic according to UL94 V-0, black |
| Mounting | Screw fixing (M5) |
| Installation position | horizontal |

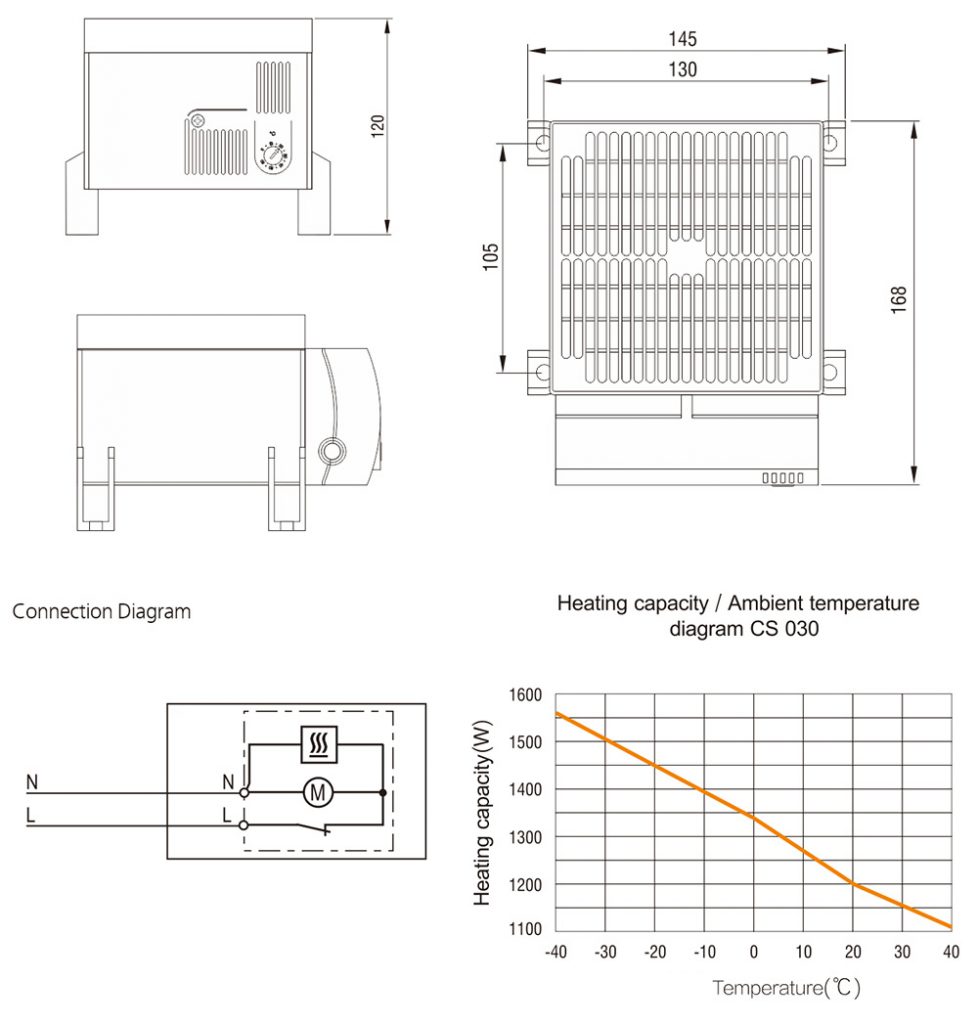

| Dimensions | 182 x 145x 120mm |
| Weight | approx.1.20kg |
| Operating/storage tmperature | -45 to+70°C(-49 to +158°F) |
| Ptotection type/Protection class | IP20/ll (double insulated) |
PRODUCT VARIANTS
| Art. No | Model | Operating voltage | Heating capacity | Inrush current max. | Setting range |
| 03060.0-00 | Fan Heater with thermostat | 230VAC，50/60Hz | 1200W | 13A | 0 to +60°C |
| 03060.0-01 | Fan Heater without thermostat | 230VAC，50/60Hz | 1200W | 13A | – |
| 03060.9-00 | Fan Heater with thermostat | 120VAC，50/60Hz | 1200W | 16A | +32 to +140°F |
| 03060.9-01 | Fan Heater without thermostat | 120VAC，50/60Hz | 1200W | 16A | – |
