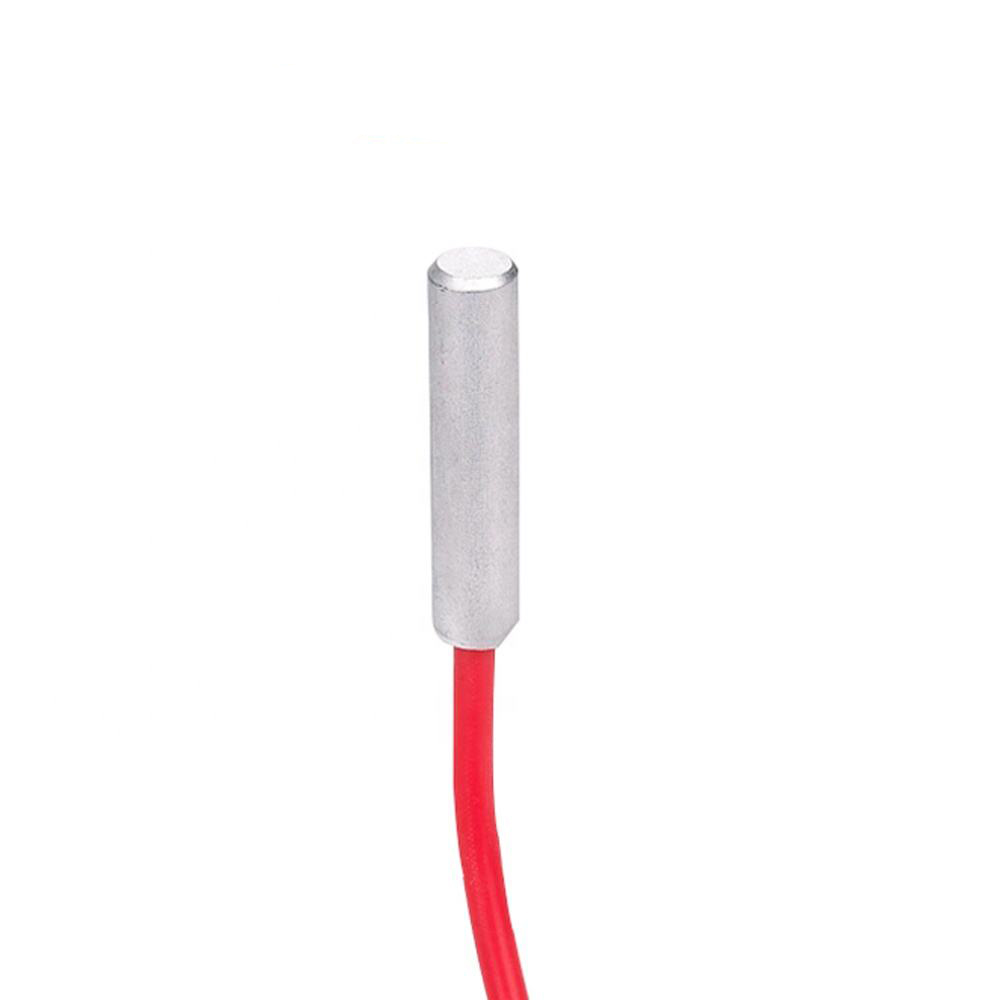

RCE 016
This compact cartridge heater for controlling the temperature of small casings and enclosures protects against condensation. The PTC heating element embedded in the aluminium heater body is temperature-limiting (self-regulating).
Wide voltage range for electrical connection
PTC heating element with dynamic response behavior
Application: e.g. as heating for valve housings, gearboxes, servomotors
Energy-saving contact heating
| Operating voltage | 120-240V AC/DC(min. 110V, max. 265V) |
| Heating element | PTC resistor, self regulating and temperature limiting |
| Heater body | aluminium, anodised |
| Connection | screw fixing |
| Installation position | variable |
| Operati ng/Storage temperatu re | -45 to +70℃(-49 to +158° F) |
| Protection type/Protection class | IP32 / II (double insulated) |
| Dimensions | length 45mm, Φ10 mm |

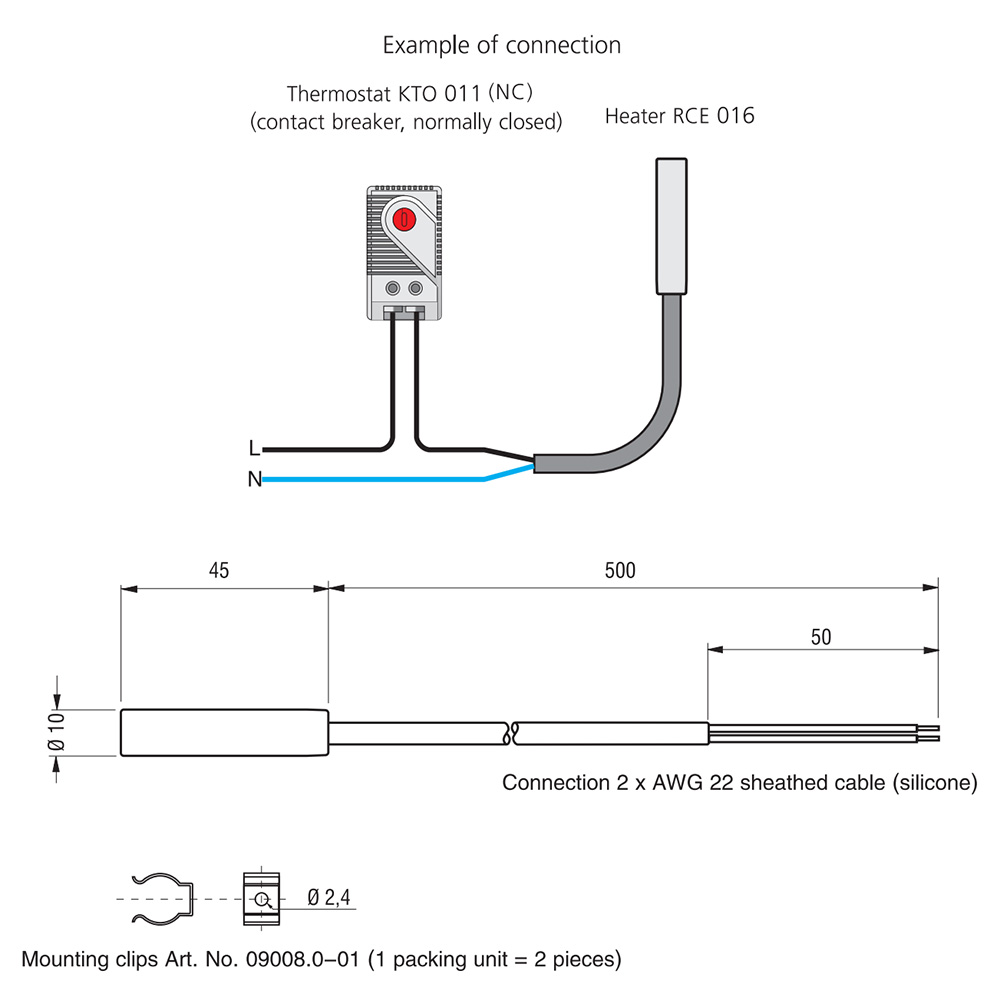

| Accessories | mounting clips(see illustration), Art.No.09008.0-01 |
*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
PRODUCT VARIANTS
| Art. No. | Heating capacity | Inrush current max. | Surface temperatu re (approx.) | Connection | Weight (approx.) |
| 01623.0-00 | 5W | 2.0A | 165° C | 2xAWG 22 sheathed cable(silicone) | 20g |
| 01622.0-00 | 9W | 2.5A | 175° C | 2xAWG 22 sheathed cable(silicone) | 20g |
*at 20,C (68°F) ambient temperature
