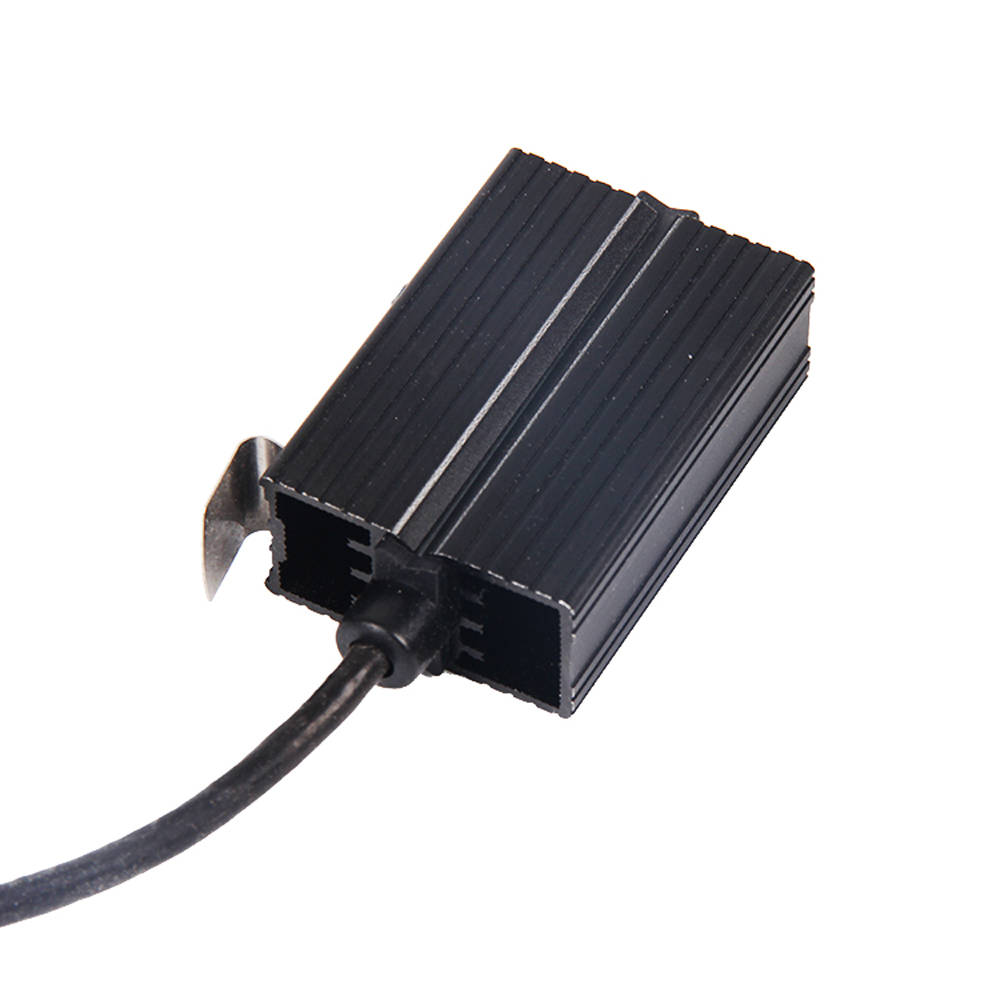

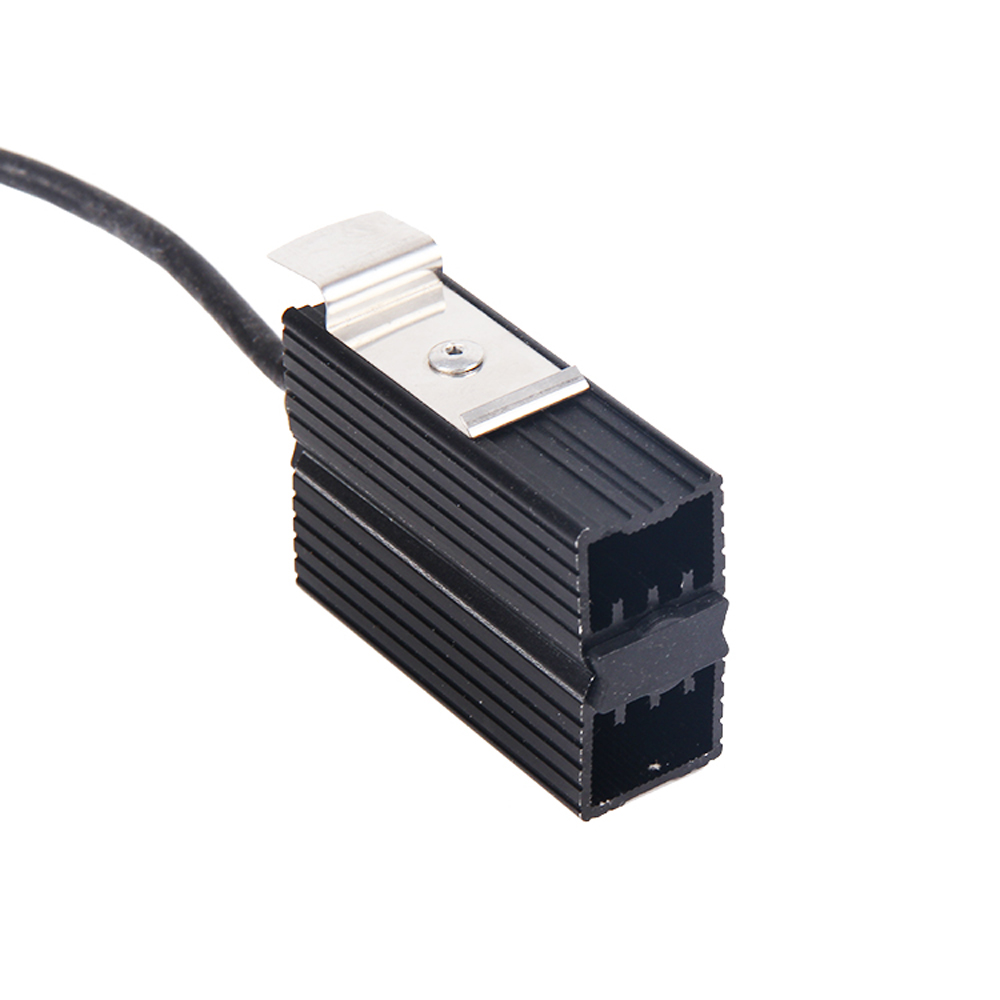

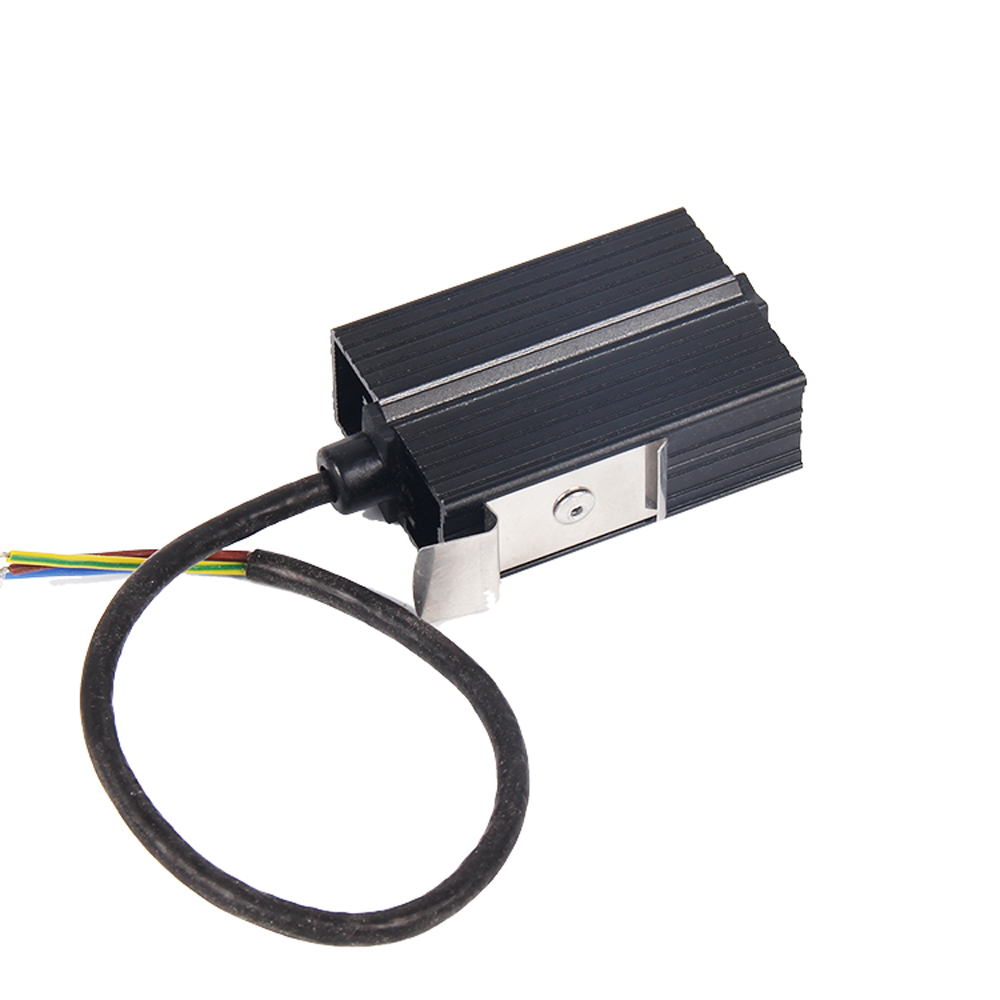

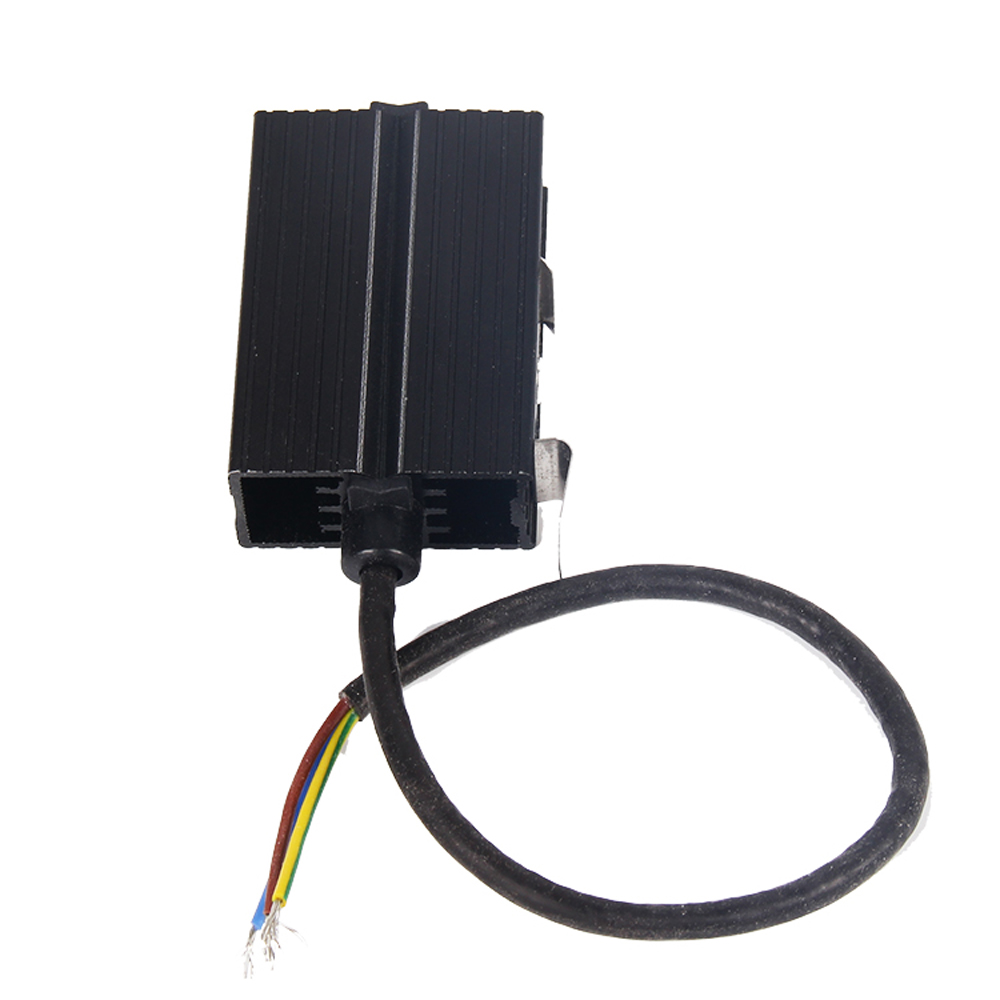

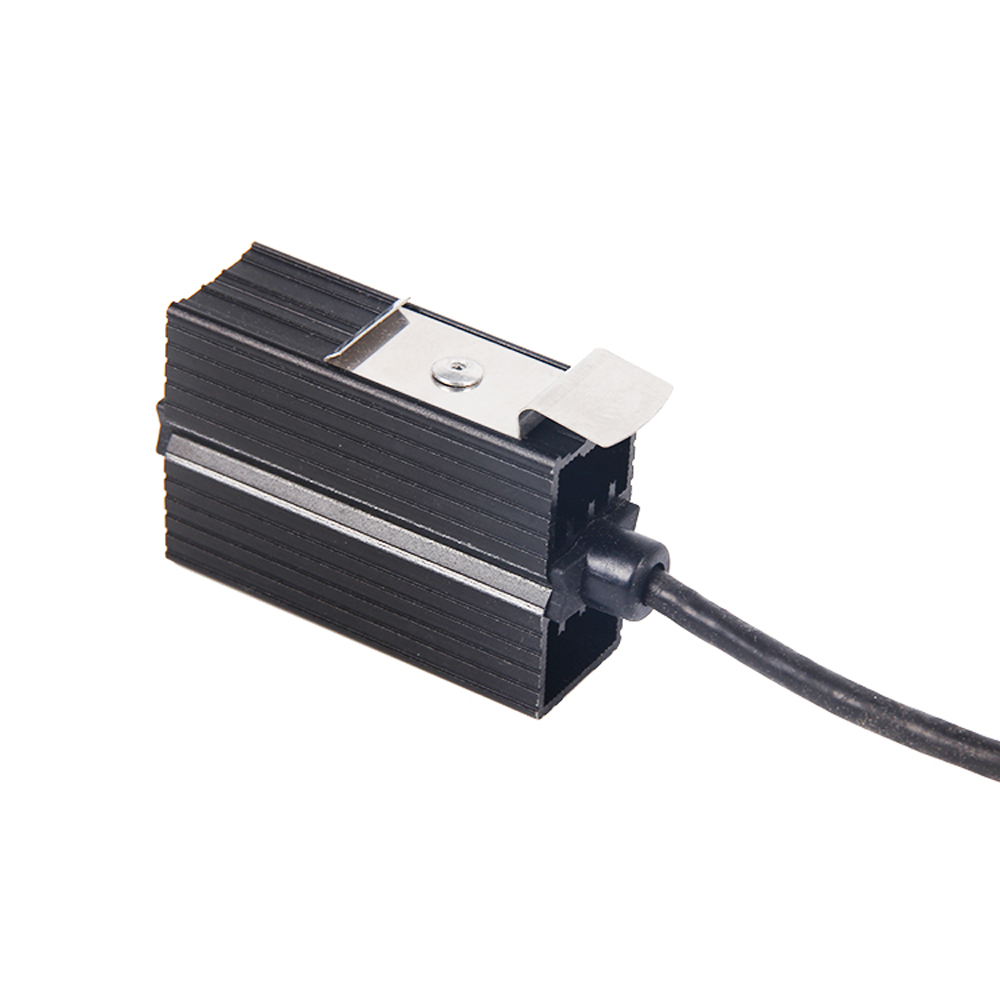

HGK 047
YUZEY
HGK 047
The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.
Dynamicheating up
Energy saving
Wide voltage range
Temperature limiting
Din Rail Mounted
| Heater body | extruded aluminium profile, anodised |
| Mounting | EN 50022clip for 35mm DIN rail, EN 60715 |
| Installation position | vertical |
| Operation/storage environment | -45 to +70℃(-49to +158°F) |
| Protection type/Protection class | IP54/I (earthed) |
PRODUCT VARIANTS

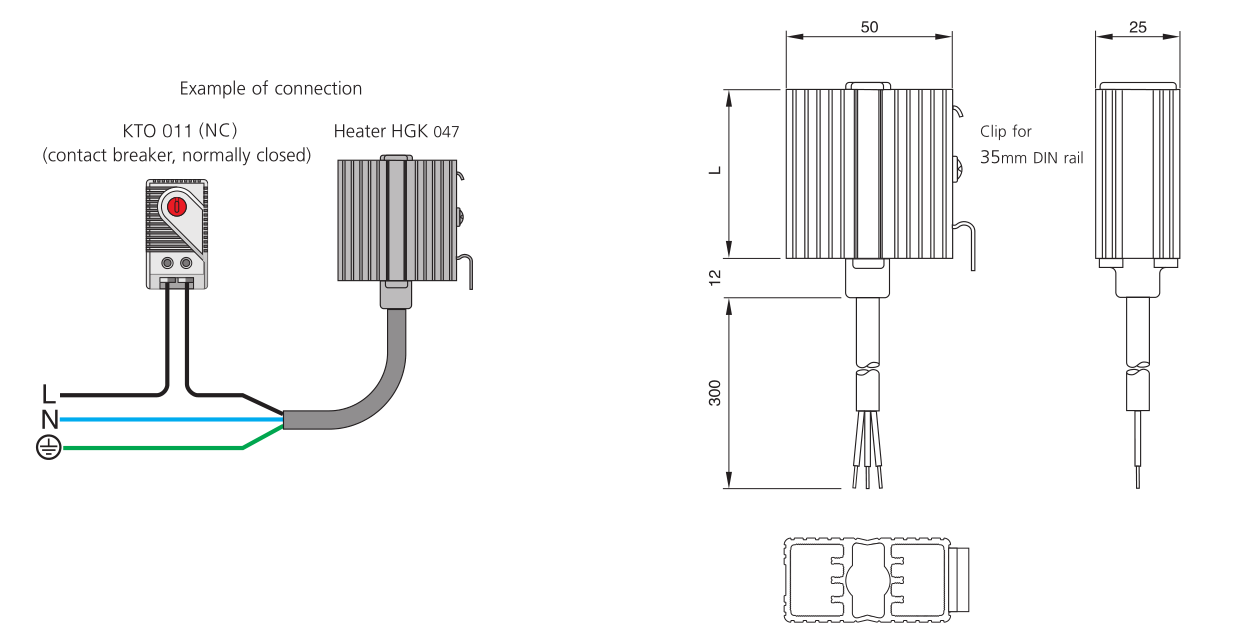

| Art. No. | Operating voltage | Heating capacity1) | Inrush current max. | Length (L) | Weight(approx.) | Connection |
| 04700.0-00 | 120-240V AC/DC | 10W | 1.0A | 50mm | 0.10kg | 3 x 0.5mm2x 300mm sheathed cable(silicone) |
| 04701.0-00 | 120-240V AC/DC | 20W | 2.5A | 60mm | 0.20kg | 3 x 0.5mm2x 300mm sheathed cable(silicone) |
| 04702.0-00 | 120-240V AC/DC | 30W | 3.0A | 70mm | 0.20kg | 3 x 0.5mm2x 300mm sheathed cable(silicone) |
| 04700.9-00 | 110-120V AC/DC | 10W | 1.0A | 50mm | 0.10kg | 3 x AWG 20 x 300mm sheathed cable |
| 04701.9-00 | 110-120V AC/DC | 20W | 1.5A | 70mm | 0.20kg | 3 x AWG 20 x 300mm sheathed cable |
| 04702.9-00 | 110-120V AC/DC | 30W | 1.5A | 100mm | 0.20kg | 3 x AWG 20 x 300mm sheathed cable |
1)at 20℃(68°F) ambient temperature
2)(min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%
