CS 060
YUZEY
CS 060

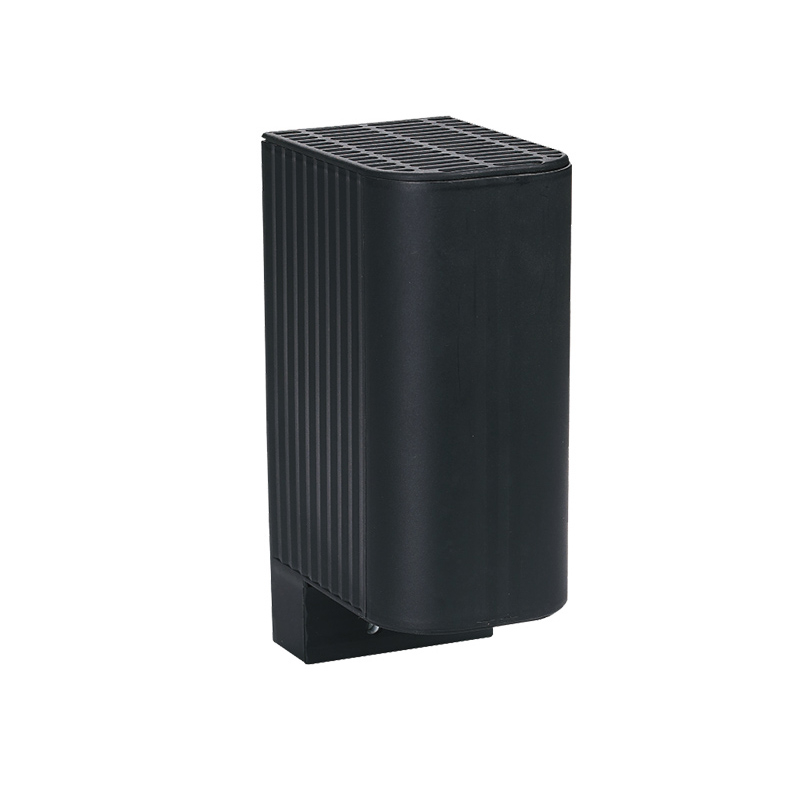

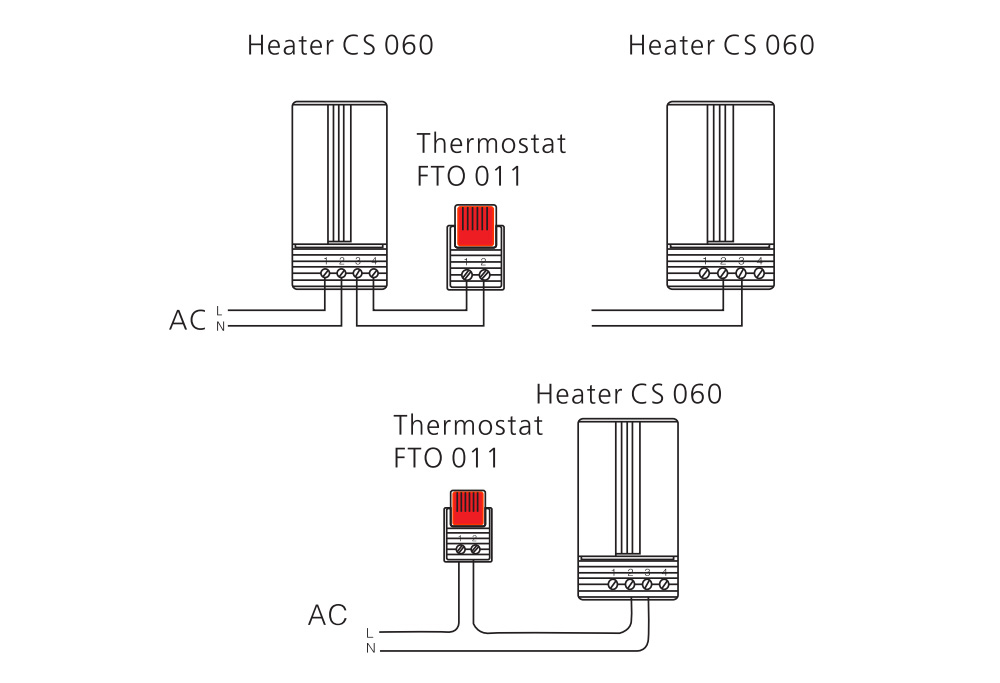

Touch-safe heater for the use in enclosures with electrical/electronical components.The design of the heater supports the natural convection which results in a high air-current of warm air.The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design . Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060. This heater is also available in a version with plug-in thermostat requiring no additional wiring (CSF 060). Both versions are designed for permanent operation.
Low surface temperature
DIN rail mounted
Doble insulated (plastic)
Wide ovltage range
| Operating voltage | 120-240VAC/DC*(min.110V,max.265V) |
| Heating capacity | See table |
| Heater element | PTC resistor-temperature limiting |
| Surface temperature | <80°C((176°F),except upper protective grille |
| Connection | 4-pole terminal 2,5mm²，torpue 0.8Nm max. |
| Casing | Pastic according to UL94-V-0,black |
| Mounting | clip for 35mm DIN rail,EN 50022 |
| Installation position | Vertical |
| Operating/storage tmperature | -45 to+70°C(-49 to +158°F) |
| Ptotection type/Protection class | IP20/ll (double insulated) |
| Approvals | CE |
| Note | other voltages on request |
*Operating with voltages below 140V AC/DC reduces heating performance by approx,10%
PRODUCT VARIANTS
| Art. No. | Heating capacity | Inrush current max | Air outlet temperature | Dimensions | Weight (approx.) |

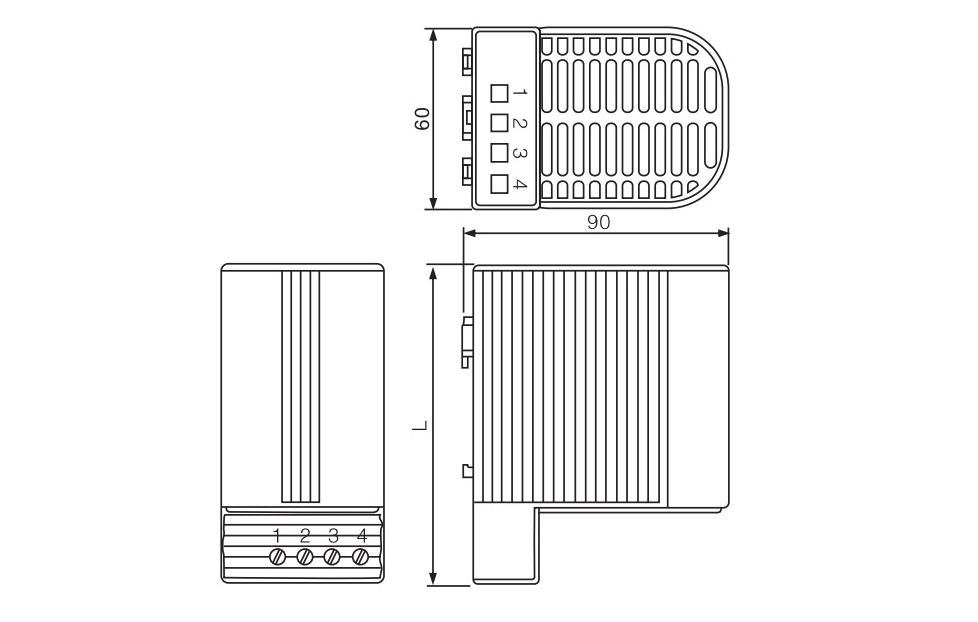

| 06000.0-00 | 50W | 2.5A | +86℃(186.8°F) | 110x60x90mm | 0.30kg |
| 06010.0-00 | 100W | 4.5A | +120℃(248°F) | 110x60x90mm | 0.30kg |
| 06020.0-00 | 150W | 8A | +145℃(293°F) | 150x60x90mm | 0.30kg |

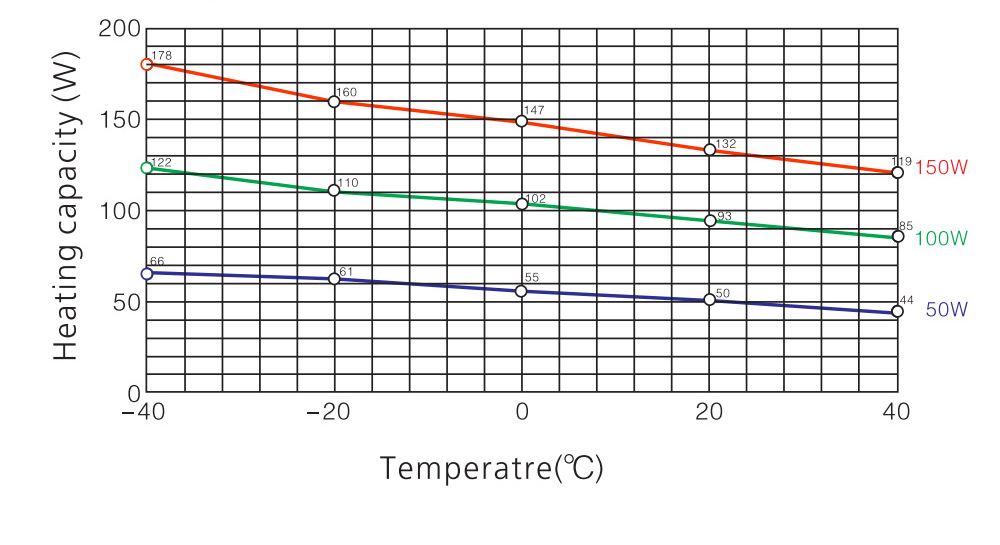

1)amdient temperature-see Heating capacity/Ambient temperattre diagram; 2)measured 50mm above protective grille
