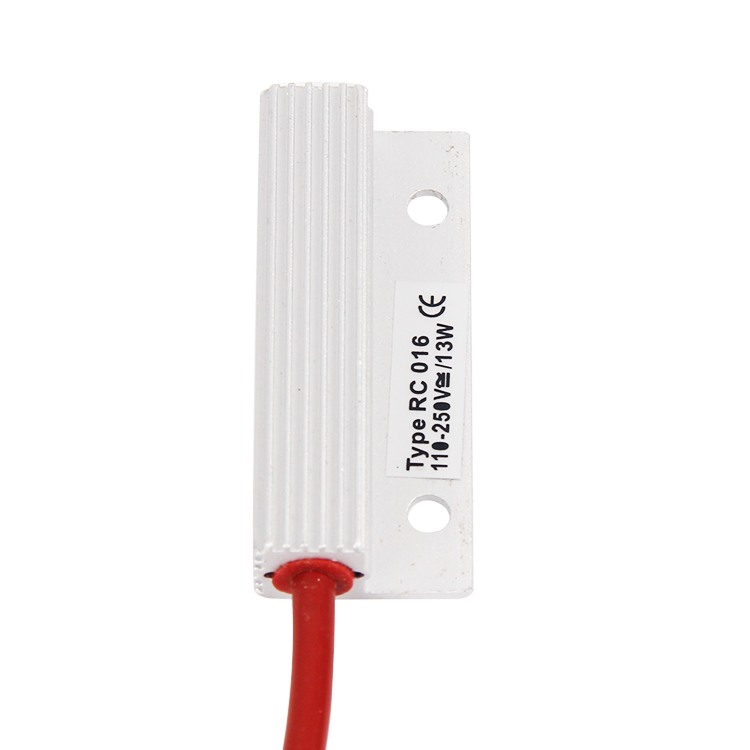

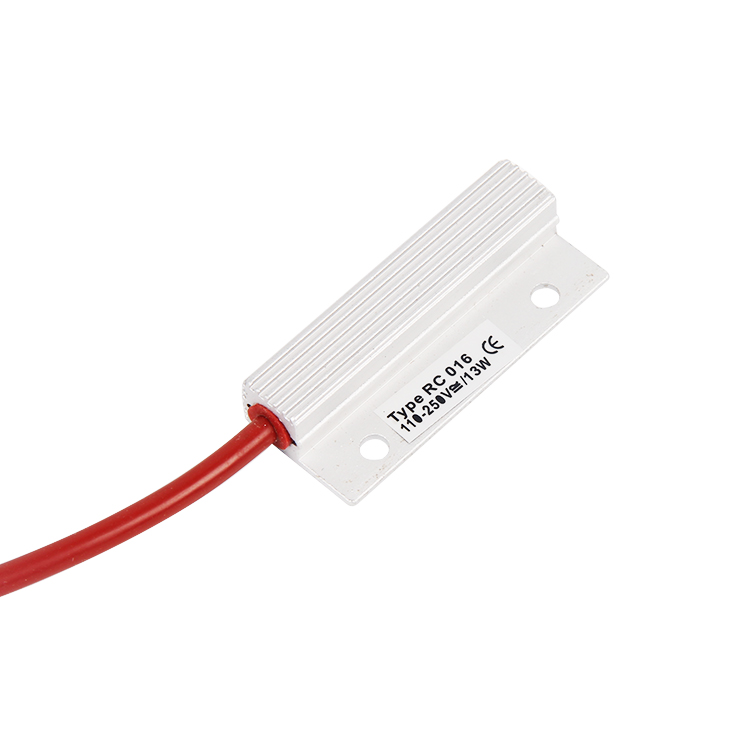

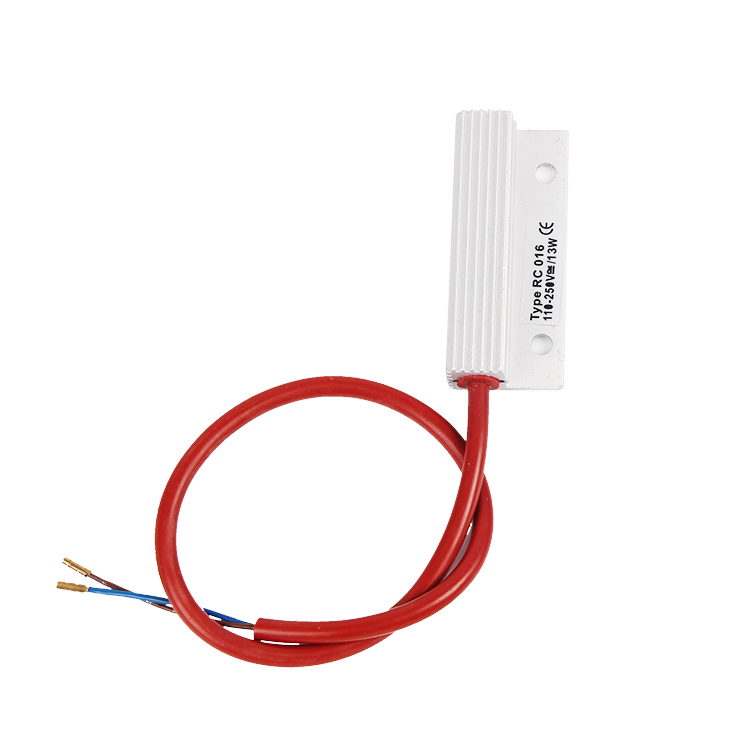

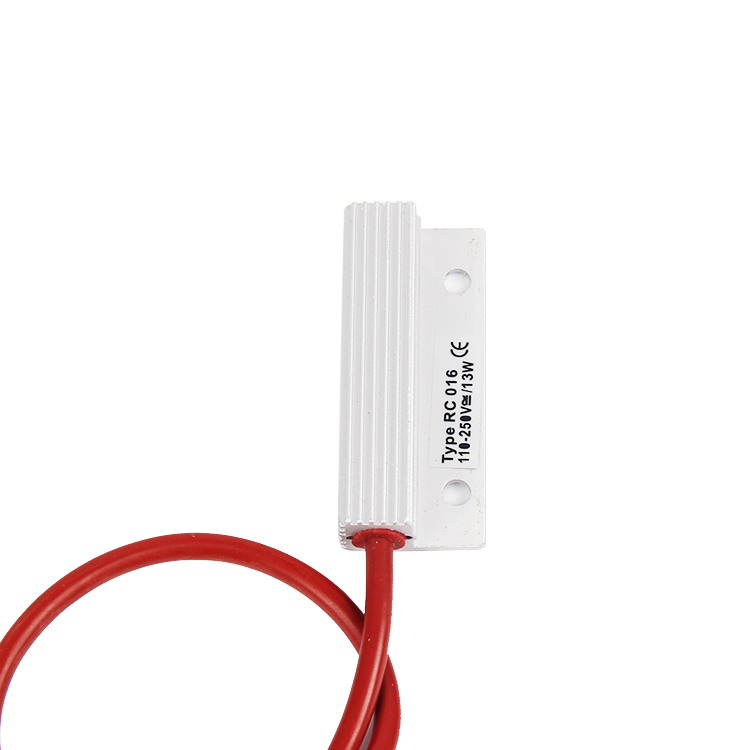

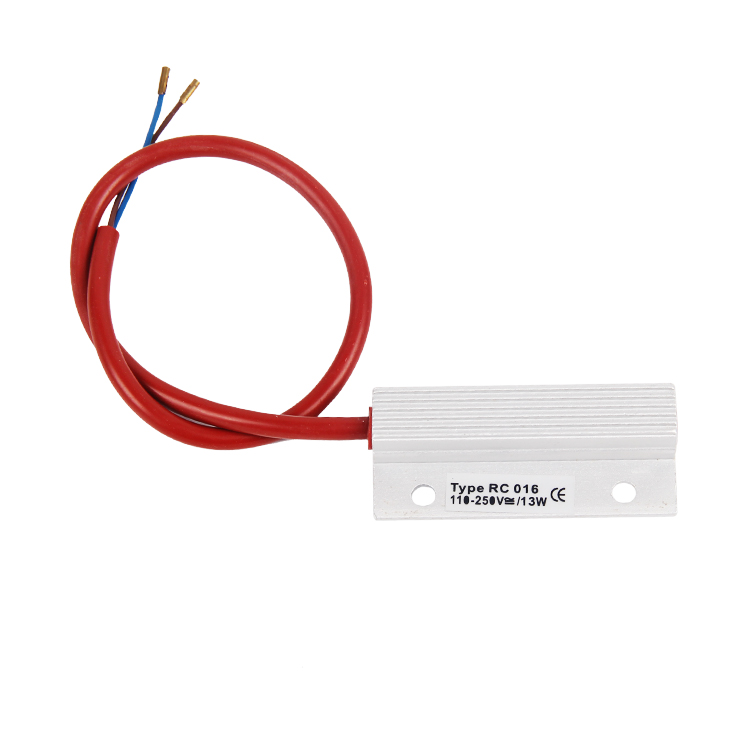

RC 016
Contact heater for use in small casings if the temperature must not fall below a minimum temperature and condensation is to be prevented. The heaters are designed for continuous operation.
Wide voltage range for electrical connection
PTC heating element with dynamic response behavior
Application: e.g. as heating for valve housings, gearboxes, servomotors
Energy-saving contact heating
OVERVIEW TECHNICAL DATA
| Operating voltage | 120-240V AC/DC(min. 110V, max. 265V) |
| Heating element | PTC resistor, self regulating and temperature limiting |
| Heater body | aluminium, anodised |
| Connection | screw fixing |
| Installation position | variable |
| Operating/Storage temperature | -45 to +70℃(-49 to +158° F) |
| Protection type/Protection class | IP32 / II (double insulated) |
PRODUCT VARIANTS
| Art. No. | Heating capacity | Inrush current max. | Surface temperature (approx.) | Connection | Weight (approx.) |
| 01602.0-00 | 8W | 2.0A | 150 | 2 x AWG 18 stranded wire | 20g |
| 01609.0-00 | 10W | 2.5A | 155 | 2 x AWG 22 sheathed cable (silicone) | 30g |
| 01610.0-00 | 13W | 3.0A | 170 | 2 x AWG 22 sheathed cable (silicone) | 40g |
