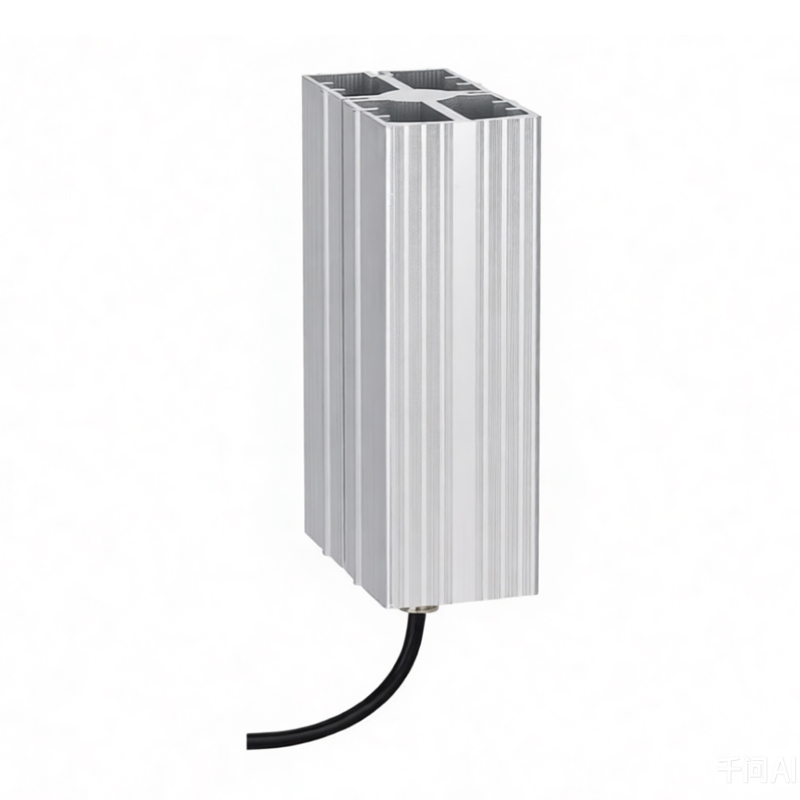

CREX 020
YUZEY
CREX 020
Compact convection heater for use in areas with explosion hazard for prevention of formation of condensation, temperature fluctuations and for protection against frost in transmitter housings, switch cabinets and measuring equipment.
Maintenance-free convection heater without fan
High-performance heating cartridge
Heater body: aluminium profile, anodised
Mounting types: screw flange, clip
| Explosion protection according to EN | LCIE(Laboratoire Central des Industries Electriques) |
| Conformity certificate | 01 ATEX 6073/03,LCIE N° 06 ATEX Q8011,IECEx LCI07.0020 |
| Heating element | high performance cartridge |
| Heater body | aluminium profile, black anodised |
| Connection | Si HF-JZ 3 x 0.75mm² cable, length 1m |
| Connection PE | 4mm² |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Installation position | vertical |
| Operating/Storage temperature | -20 to +40℃(-4 to +104° F)/-45 to +70℃(-49 to +158° F) |
| Protection type/Protection class | IP65 / I (earthed) |
PRODUCT VARIANTS
| Art. No. | Operating voltage | Heating capacity | Ex protection type | Surface temperature | Length (L) | Weight (approx.) |
| 02010.0-00 | 230-240VAC | 50W |  d IIC T5 – Ex tD A21 IP6X T100° F | 100°F | 150mm | 1.30kg |
| 02011.0-00 | 230-240VAC | 100W | d IIC T4 – Ex tD A21 IP6X T135° F | 135°F | 180mm | 1.50kg |
| 02010.0-01 | 110-120VAC | 50W | d IIC T5 – Ex tD A21 IP6X T100° F | 100°F | 150mm | 1.30kg |
| 02011.0-01 | 110-120VAC | 100W | d IIC T4 – Ex tD A21 IP6X T135° F | 135°F | 180mm | 1.50kg |
