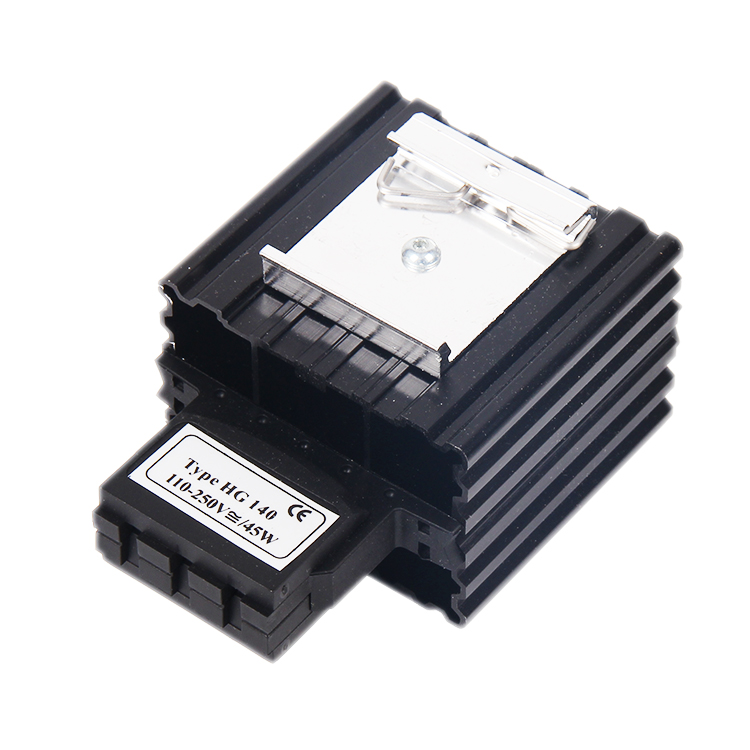

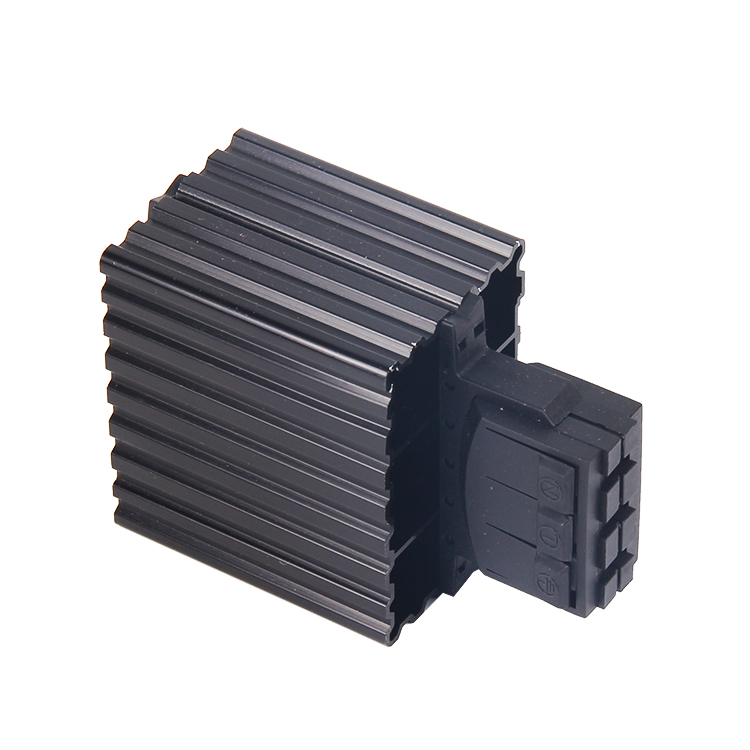

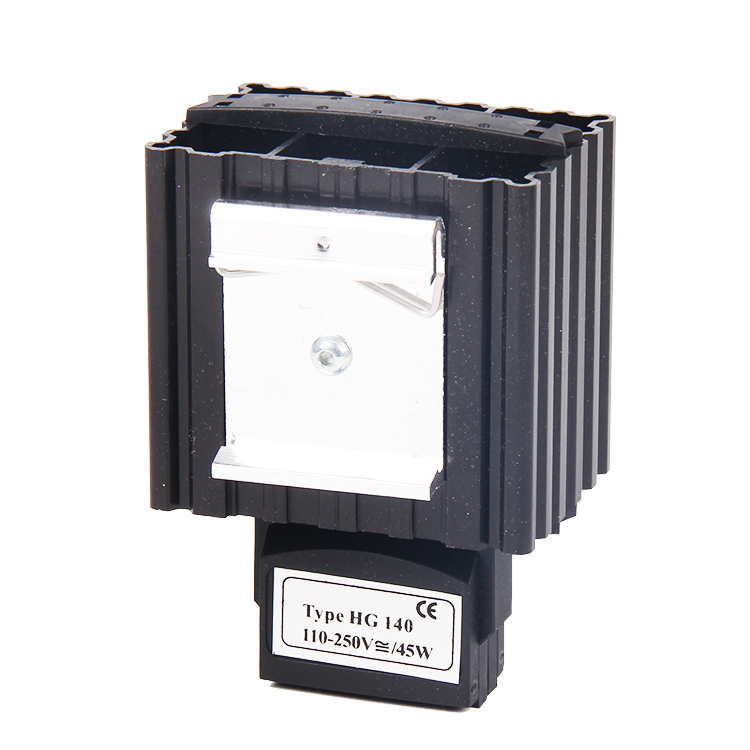

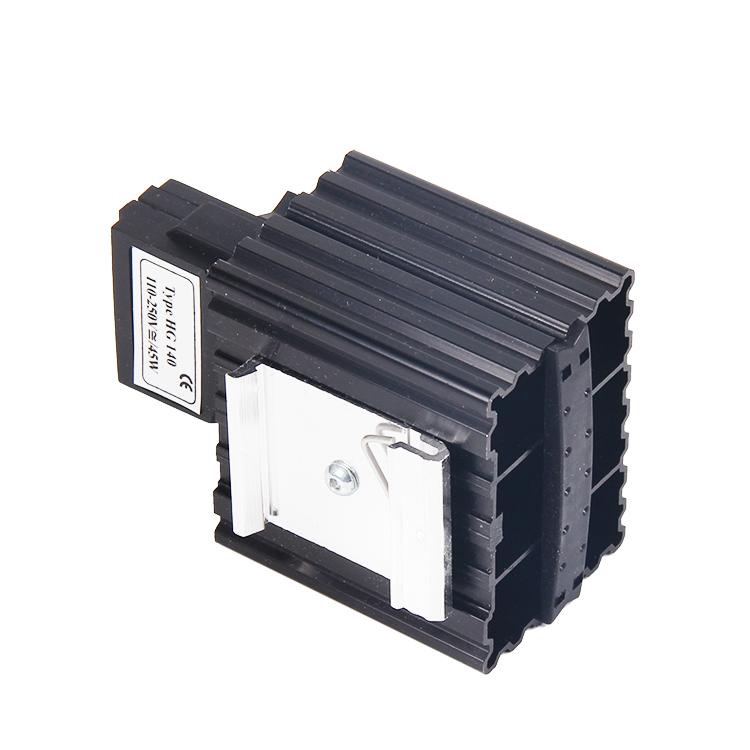

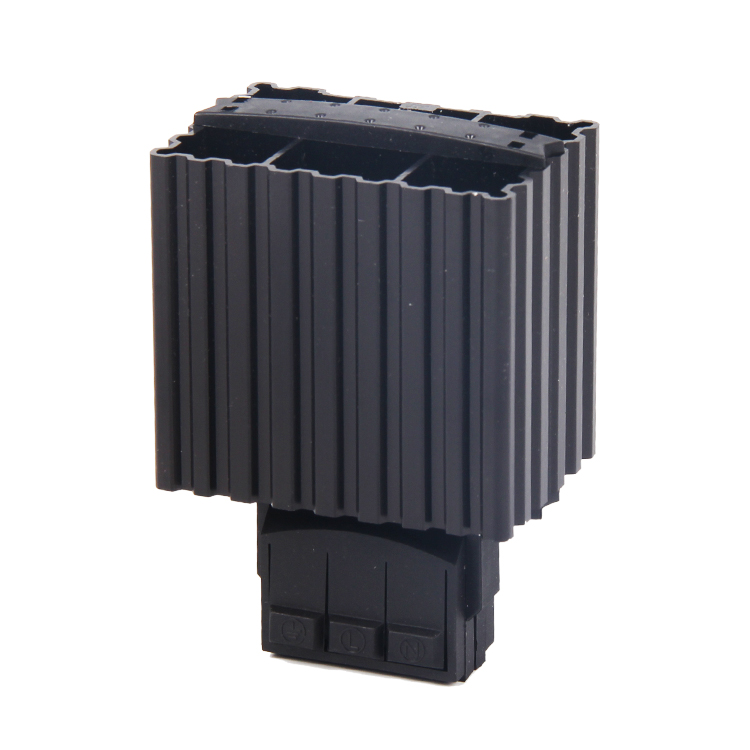

HG 140
YUZEY
HG 140
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.
Dynamicheating up
Pressure clamp connectors
Energy saving
Wide voltage range
Temperature limiting
Din Rail Mounted
| Operating voltage | 120-240V AC/DC(min. 110V, max. 265V) |
| Heating element | PTC resistor, self regulating and temperature limiting |
| Heater body | extruded aluminium profile, anodised |
| Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5-1.5mm² |
| Connection casing | plastic according to UL94 V-0,black |
| Mounting | 35mmDIN RAIL ,clip for 35mm DIN rail, EN 60715 |
| Installation position | variable |
| Operating/Storage temperature | -20 to +70℃(-4 to +158° F) |
| Protection type/Protection class | IP54 / I (earthed) |
*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
PRODUCT VARIANTS
| Art. No. | Heating capacity | Inrush current max. | Length (L) | Weight(approx.) |
| 14000.0-00 | 15W | 1.5A | 65mm | 0.30kg |
| 14001.0-00 | 30W | 3.0A | 65mm | 0.30kg |
| 14003.0-00 | 45W | 3.5A | 65mm | 0.30kg |
| 14005.0-00 | 60W | 2.5A | 140mm | 0.40kg |
| 14006.0-00 | 75W | 4.0A | 140mm | 0.50kg |
| 14007.0-00 | 100W | 4.5A | 140mm | 0.50kg |
| 14008.0-00 | 150W | 9.0A | 220mm | 0.70kg |
*at 20°C(68°F) ambient temperature
