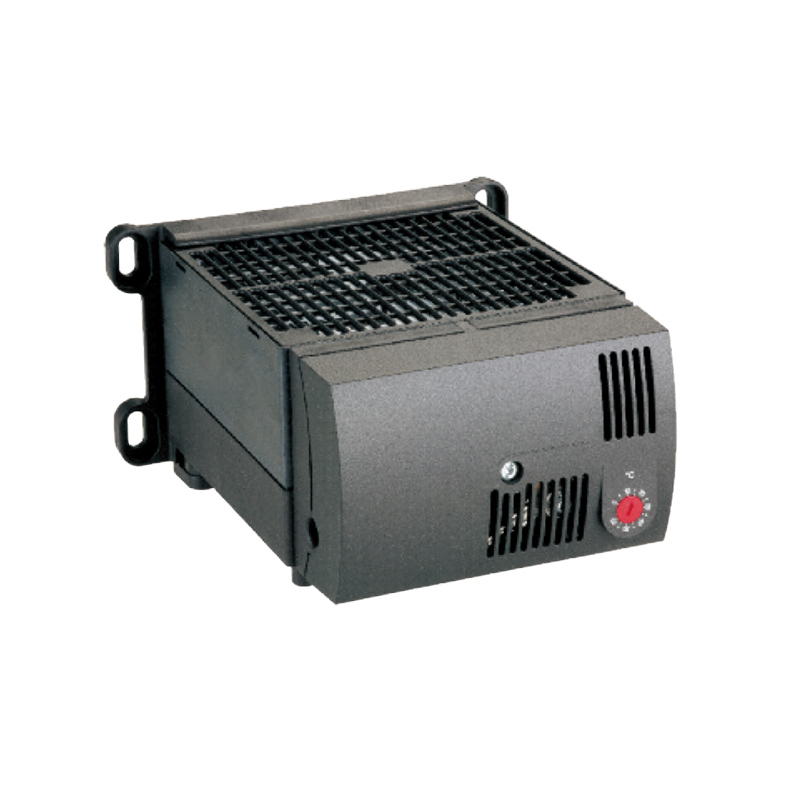

CR 130
YUZEY
CR 130
The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.
The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control The CR 030 was designed as a stationary unit for the bottom of the enclosure.
For wall fixing the fan heater CR 130 is resommended.
Compact design
Double insulated
Integrated thermostat(optional)
DIN rail or screw fixing
| Heater element | High performance cartridge |
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| automatic reset | |
| Heater body | extruded aluminium profile |
| Axial fan, ball bearing | Airflow 160m³/h,free flow |
| service life 50,000h at 25°C(77°F) | |
| Connection | 2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Mounting | Clip for 35mm Din rai,EN 50022,Screw fixing (M6) |
| Installation position | horizontal |

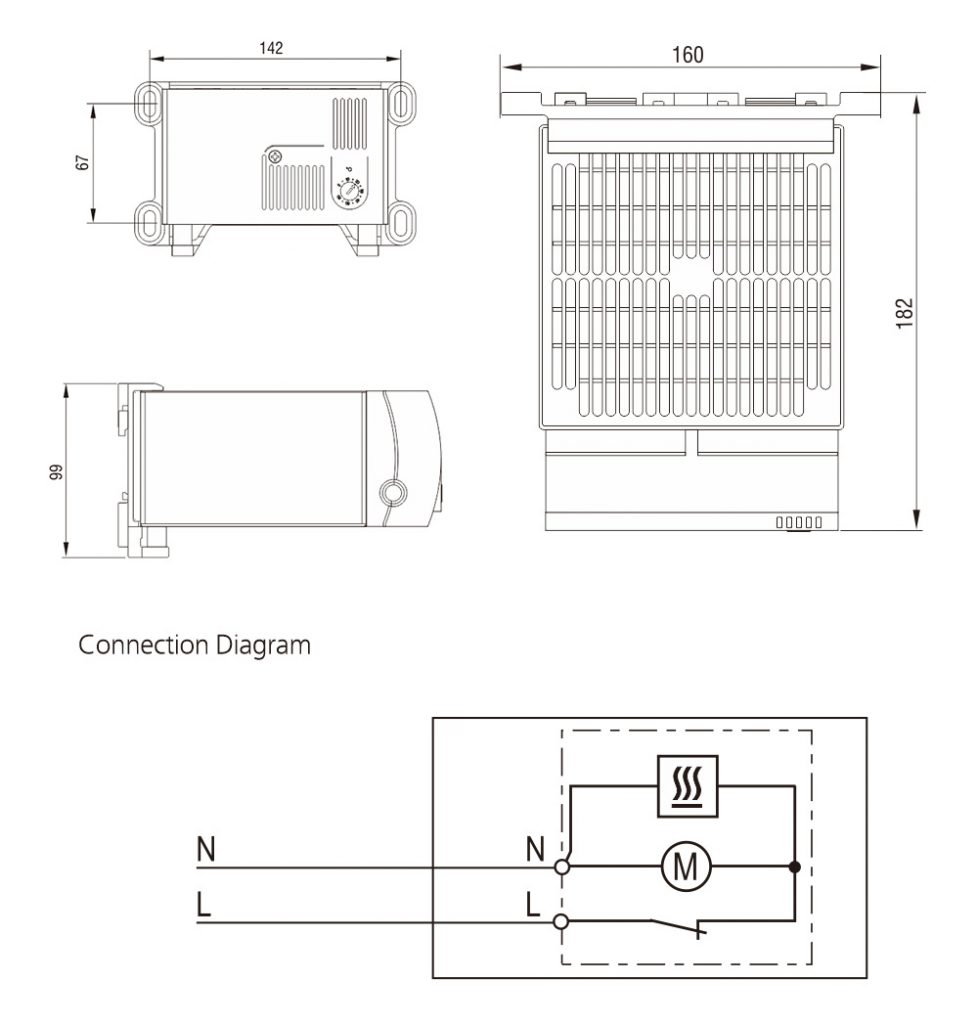

| Dimensions | 182 x 160x 99mm |
| Weight | approx.1.45kg |
| Operating/storage tmperature | -45 to+70°C(-49 to +158°F) |
| Ptotection type/Protection class | IP20/ll (double insulated) |
| Note | Other heating capacities from 200W up available on request |
Operating temperature of heater with integrated hygrostat: 0 to +60°C(+32 to +140°F)
PRODUCT VARIANTS
| Art. No | Model | Operating voltage | Heating capacity | Setting range |
| 13051.0-00 | Fan Heater with thermostat | 230VAC，50/60Hz | 950W | 0 to +60°C |
| 13051.0-01 | Fan Heater with hygrostat | 230VAC，50/60Hz | 950W | 65% RH, Factory-set |
| 13059.9-00 | Fan Heater with thermostat | 120VAC，50/60Hz | 950W | +32 to +140°F |
