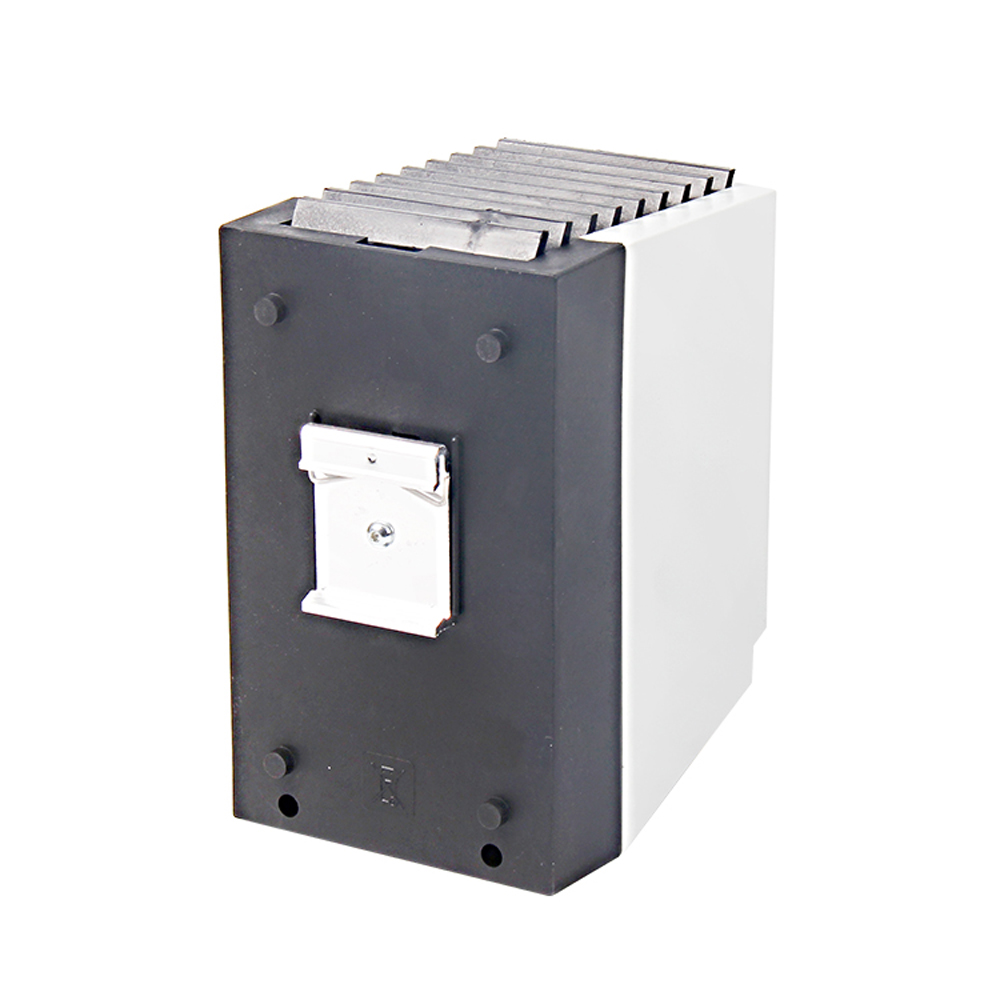

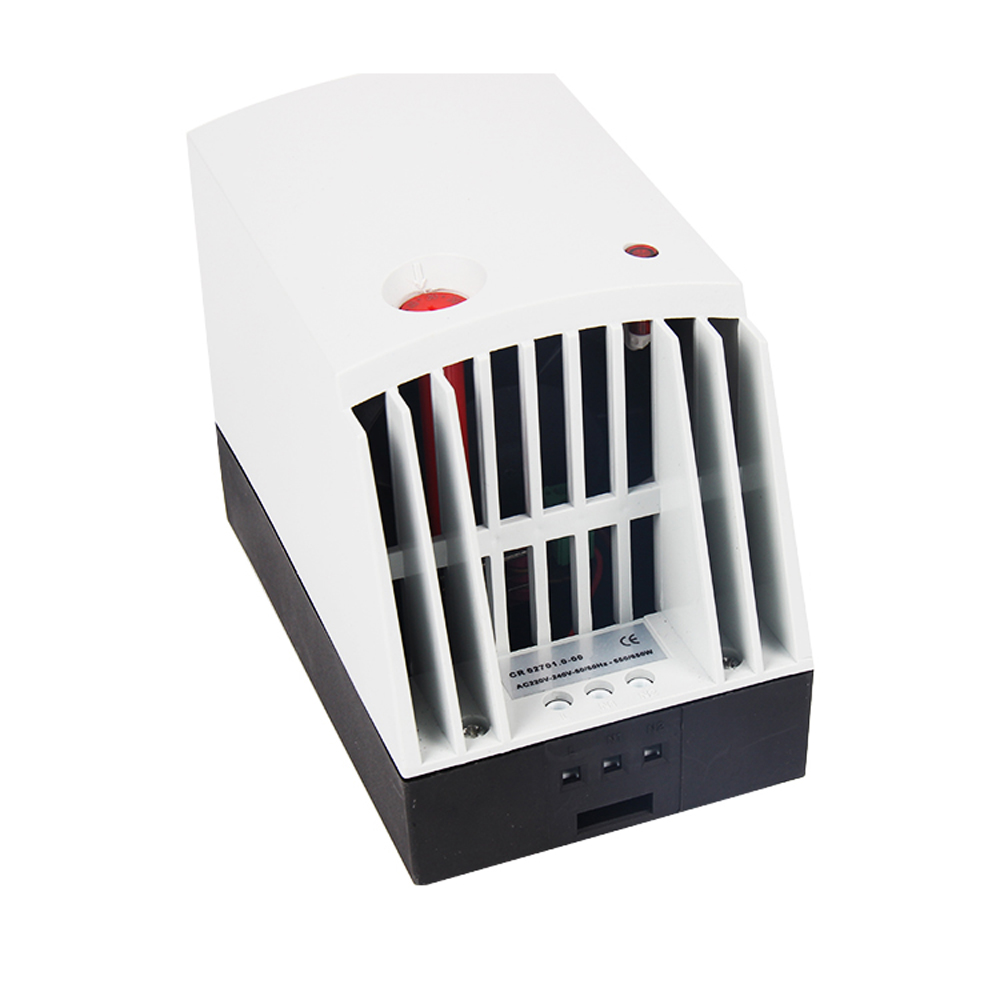

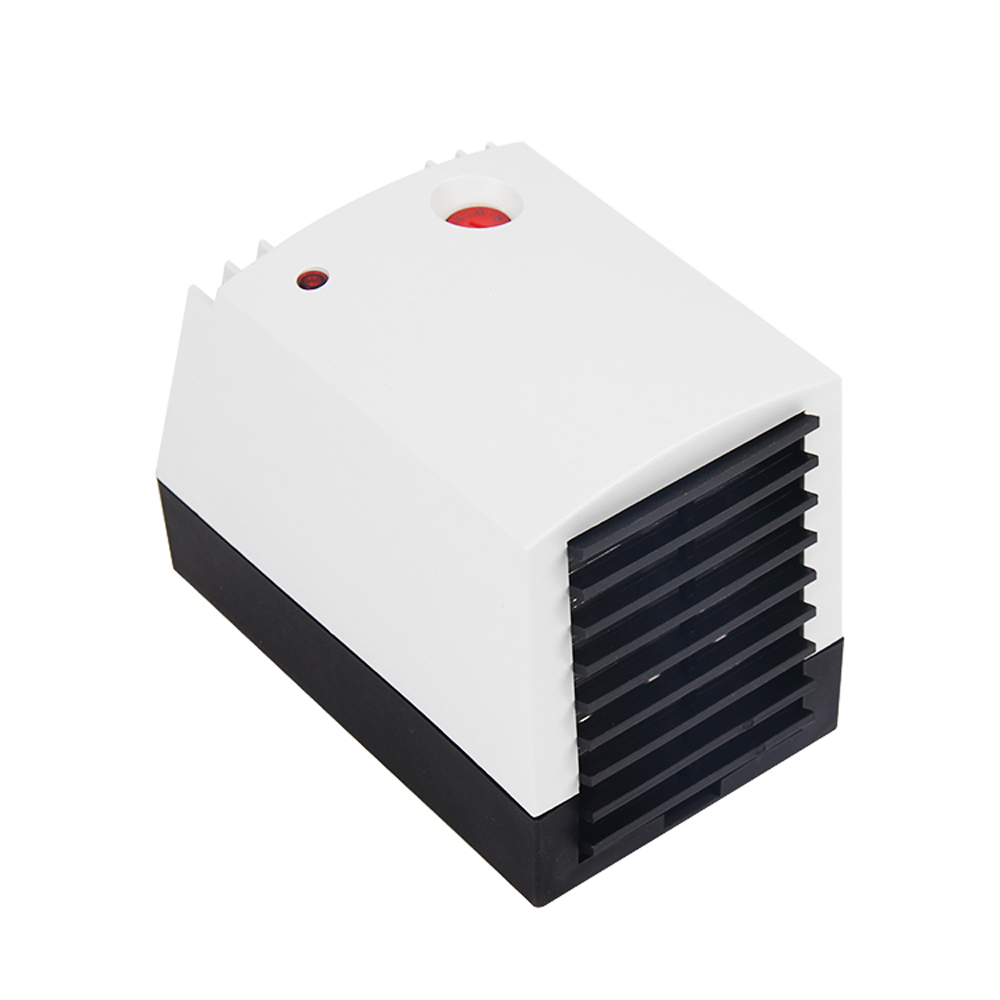

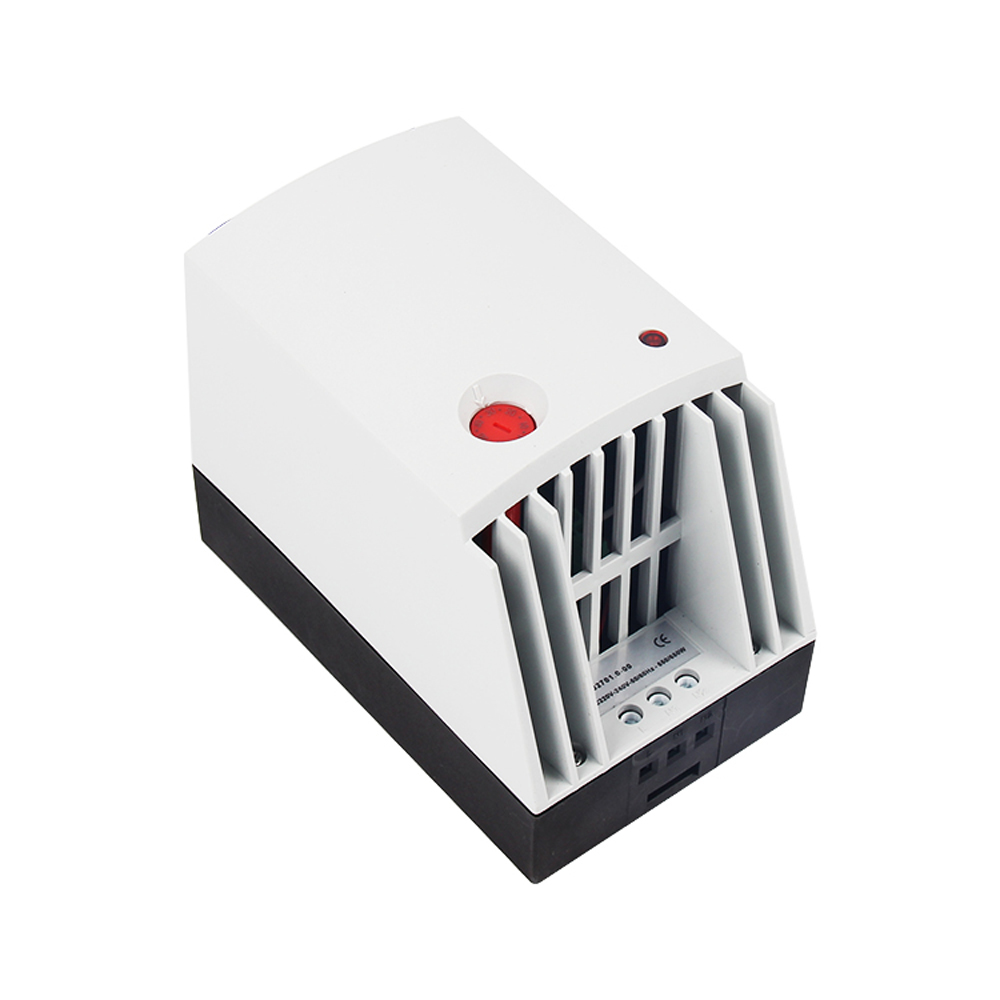

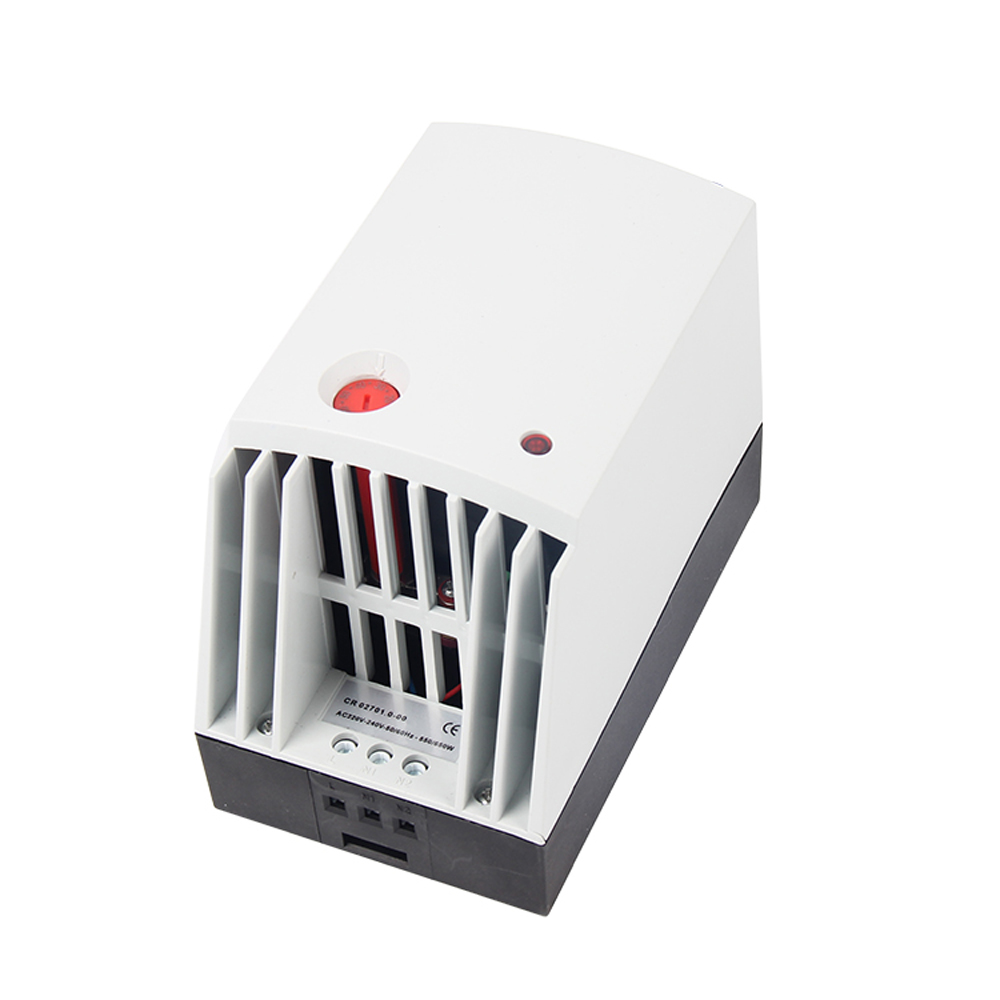

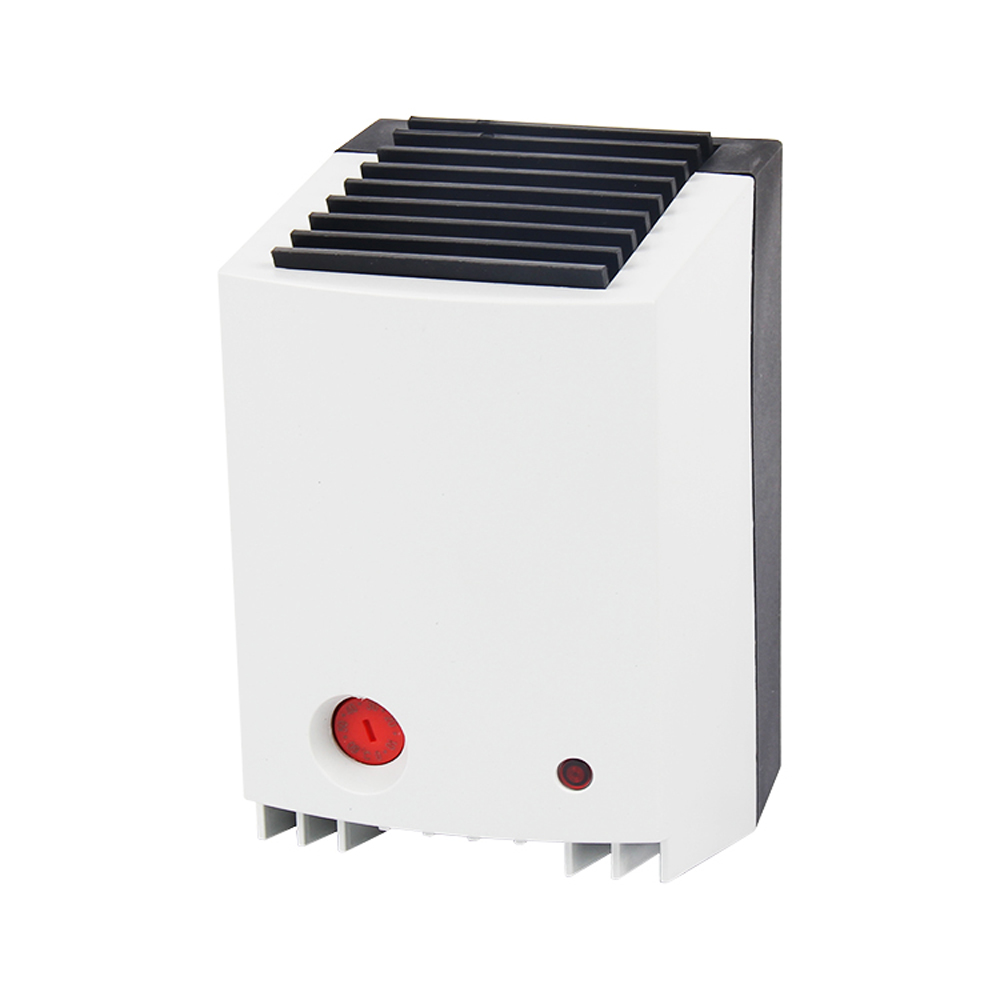

CR 027
YUZEY
CR 027
This heating with PTC element is used to prevent frost and condensation in the enclosure and casing. The built-in fan further intensifies the heating effect through convection. The integrated, adjustabl thermostat saves space in the application.
Compact heater
Heating capacity adjusts to ambient temperature
Adjustable temperature range
Din Rail Mounted
Temperature safety cut-out
Optical indicator
| Heater body | PTC resistor, self regulating and temperature limiting |
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| Axial fan, ball bearing | service life 50,000h at 25°C(77°F) |
| Connection | 2-pole clamp max. 2.5mm²clamping screw torque 0.8Nm max. |
| Casing | plastic according to UL94 V-0,light grey |
| Optical indicator | thermostat control lamp |
| Mounting | clip for 35mm DIN rail,EN 60715 |
| Installation position | vertical |

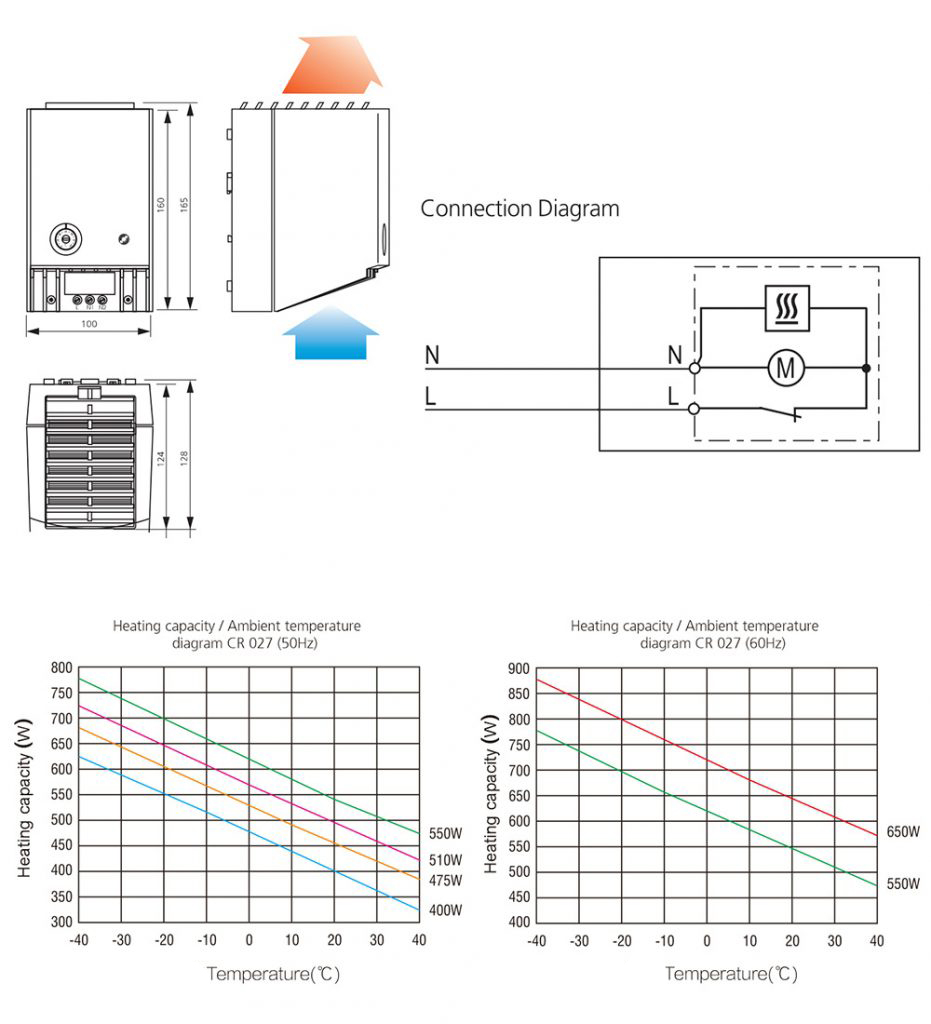

| Dimensions | 100 x 128 x 165mm |
| Operating/storage tmperature | -45 to+70°C(-49 to +158°F) |
| Ptotection type/Protection class | IP20/ll (double insulated) |
PRODUCT VARIANTS
| Art. No | Operating voltage | Heating capacity（50HZ） | Heating capacity（60HZ） | Inrush current max | Airflow,free flow | Setting rangeTemp.regulator | Weight |
| 02700.00-00 | 220-240VAC,50/60Hz | 475W | 550W | 11.0A | 35m³/h | 0 to +60°C | 0.90kg |
| 02701.00-00 | 220-240VAC,50/60Hz | 550W | 650W | 13.0A | 45m³/h | 0 to +60°C | 1.10kg |
| 02700.90-00 | 100-120VAC,50/60Hz | 400W | 550W | 14.0A | 35m³/h | +32 to +140°F | 0.90kg |
| 02701.90-00 | 100-120VAC,50/60Hz | 510W | 650W | 15.0A | 45m³/h | +32 to +140°F | 1.10kg |
