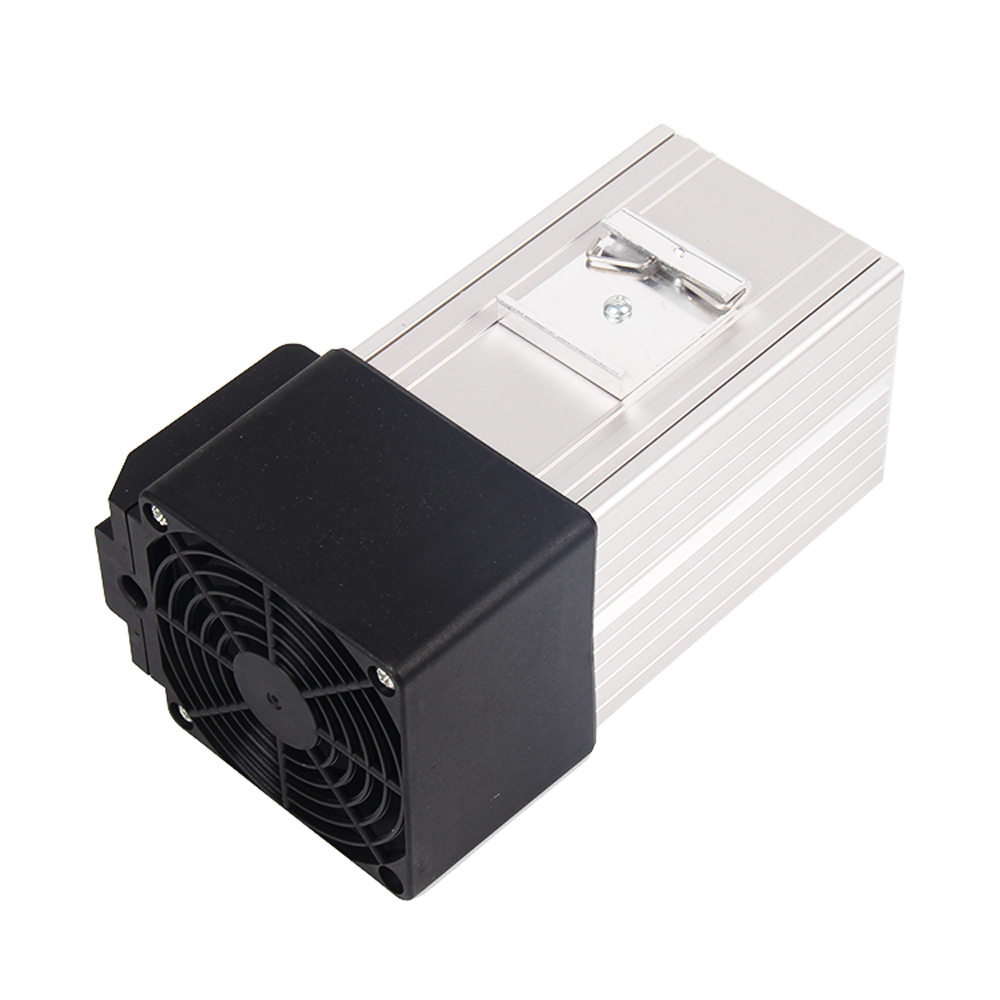

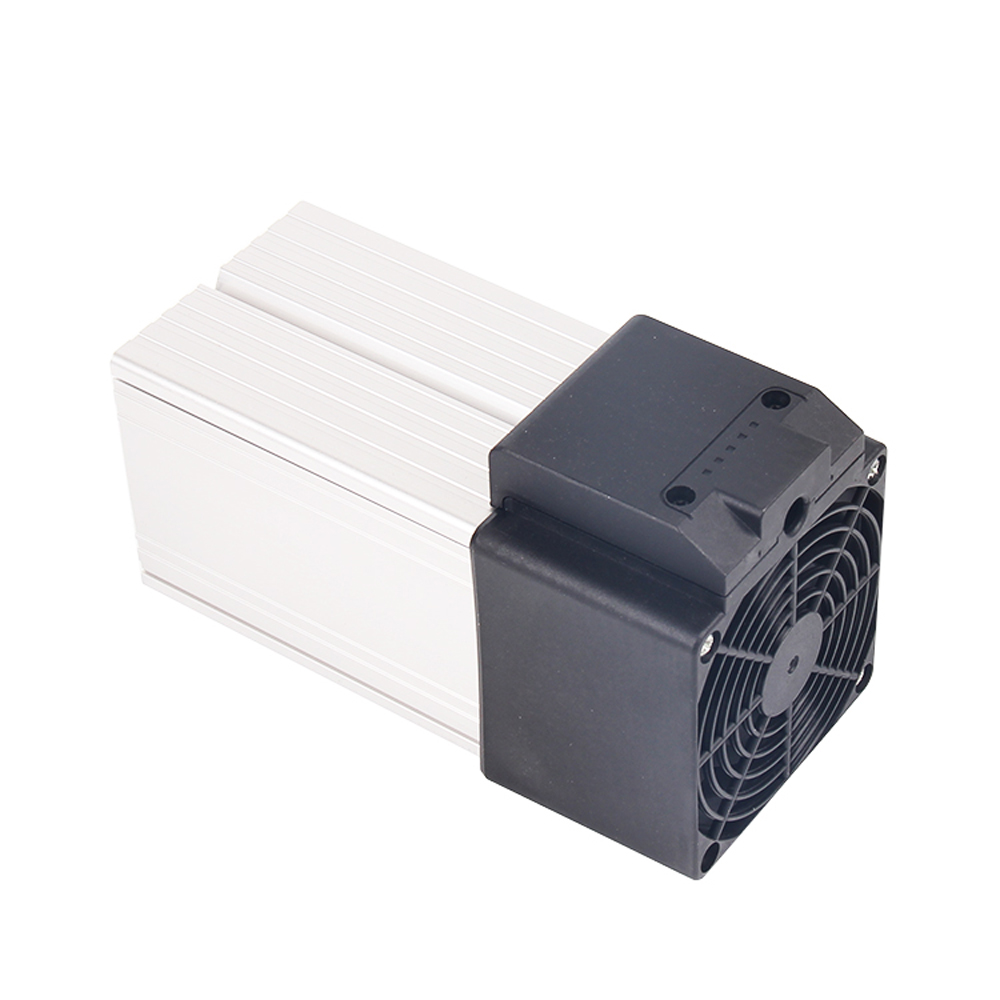

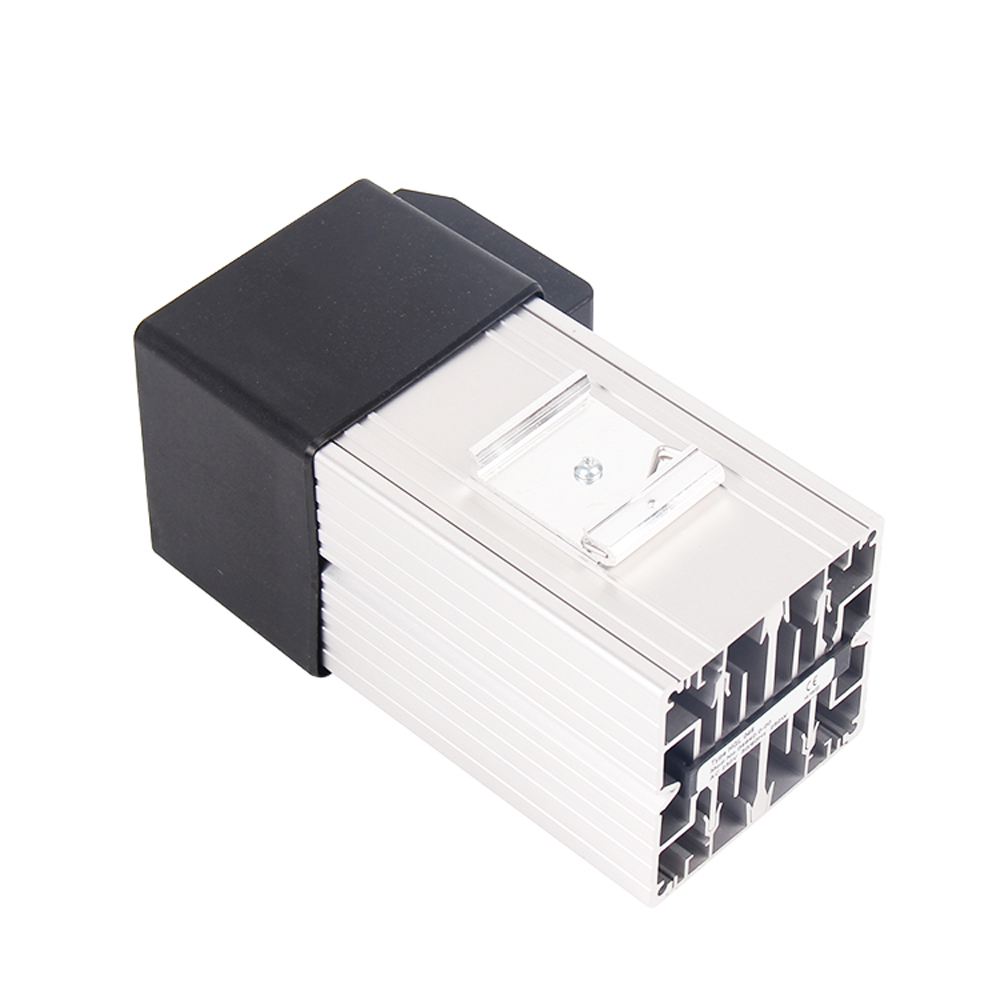

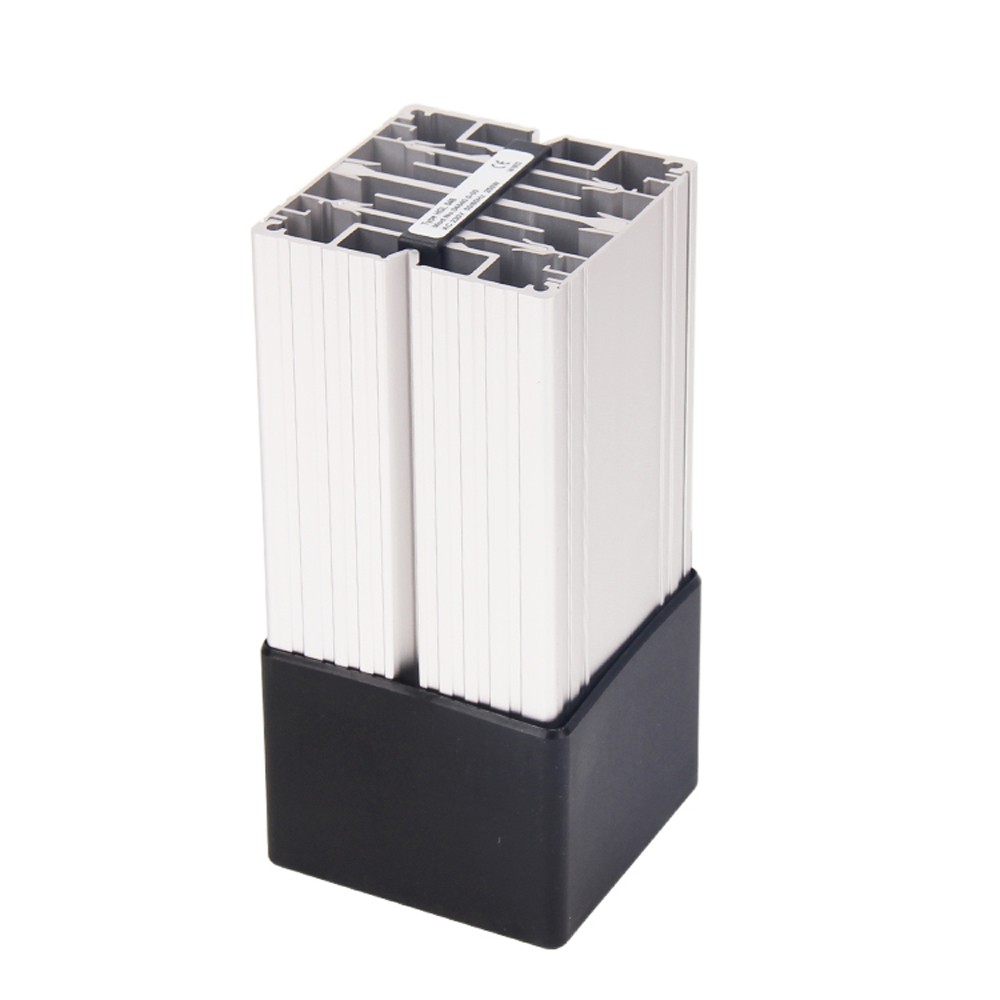

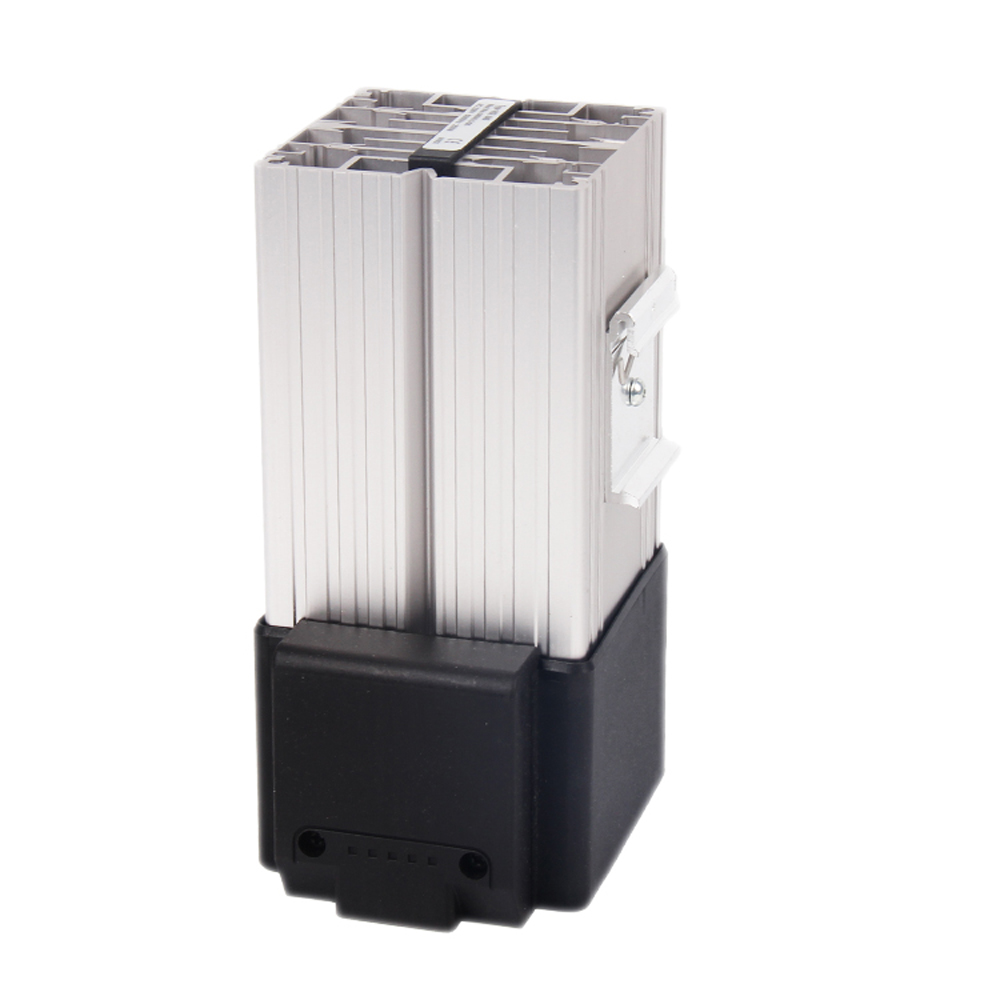

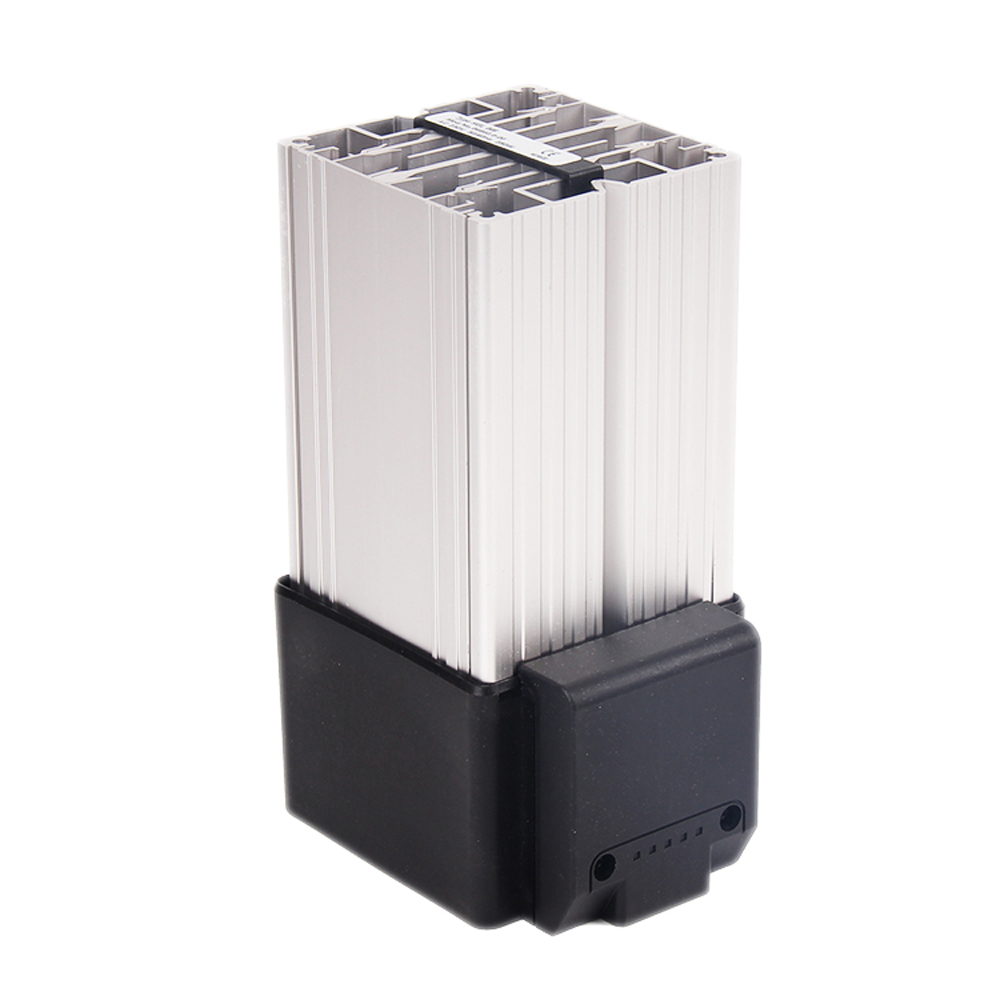

HGL 046
Compact fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. With internal terminal connector.
Compact design
Din Rail mounted
Long service life
Maintenance free
Temperature safety cut-out
| Heating capacity | resistance heater |
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| Heater body | anodised extruded aluminium profile |
| Surface temperature | max. 75℃(400W) |
| Axial fan, ball bearing | Airflow, free flow AC:45m³/h(50Hz) or 54m³/h(60Hz) DC:54m³/h service life 50,000h at 25℃(77°F) |
| Connection | internal connection terminal 1.5mm² with strain relief, clamping torque 0.8Nm max. |
| Connection casing | Pastic according to UL94-V-0,black |
| Mounting | clip for 35mm DIN rail,EN 60715 |
| Installation position | Vertical |
| Operating/storage tmperature | -45 to+70°C(-49 to +158°F) |
| Ptotection type/Protection class | IP20/ll (earthed) |

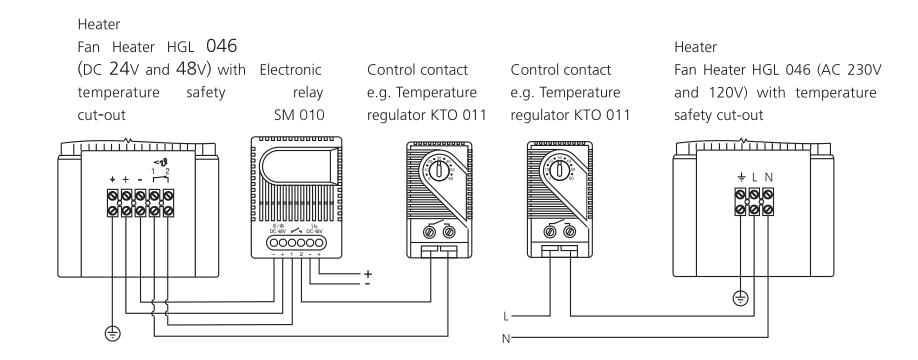

Note:In the case of 24VDC and 48VDC the fan heater has to be switched via a relay. For this purpose we recommend
our electronic relay SM 010 (Art. No, 01000,0-00 and 01001.0-00).
PRODUCT VARIANTS

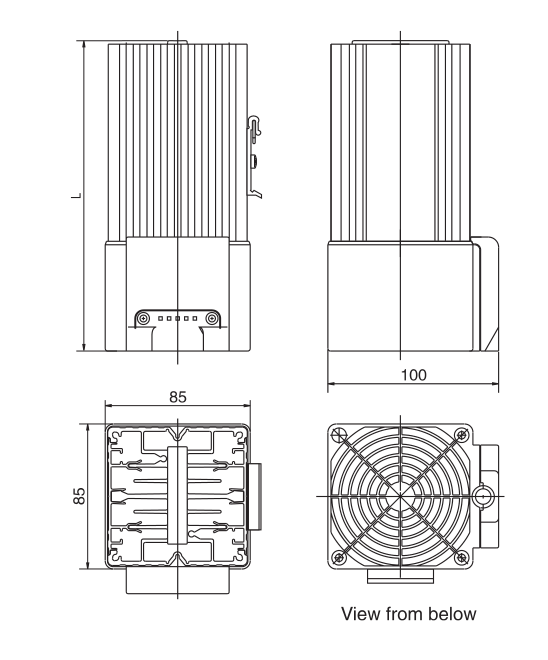

| Art. No. | Operating voltage | Heating capacity | Length (L) | Weight (approx.) |
| 04640.0-00 | 230VAC,50/60Hz | 250W | 182mm | 1.10kg |
| 04641.0-00 | 230VAC,50/60Hz | 400W | 222mm | 1.40kg |
| 04640.9-00 | 120VAC,50/60Hz | 250W | 182mm | 1.10kg |
| 04641.9-00 | 120VAC,50/60Hz | 400W | 222mm | 1.4kg |
| 04640.1-00 | 24VDC | 250W | 182mm | 1.10kg |
| 04640.2-00 | 48VDC | 250W | 182mm | 1.10kg |
| 04641.2-00 | 48VDC | 400W | 222mm | 1.40kg |
