HV 031 / HVL 031
YUZEY
HV 031 / HVL 031

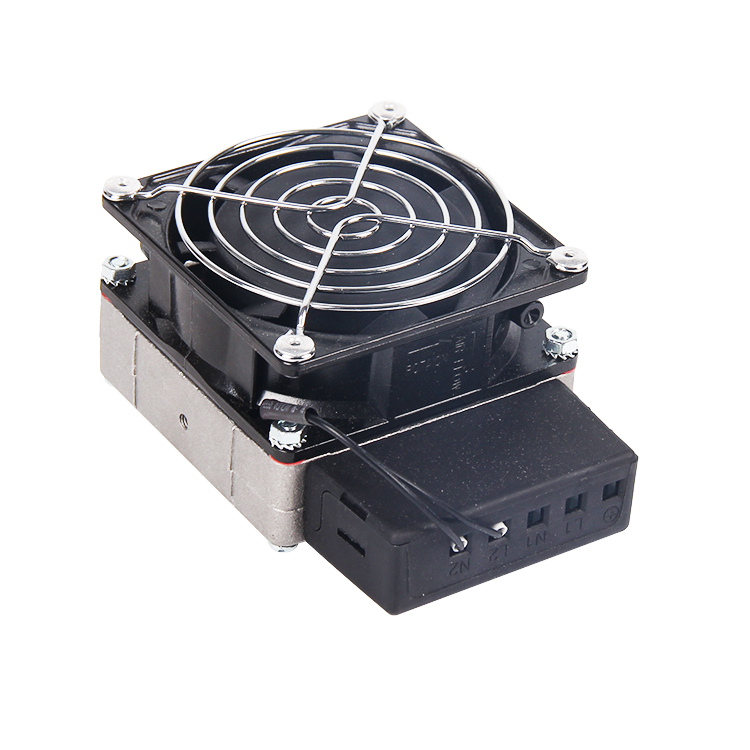

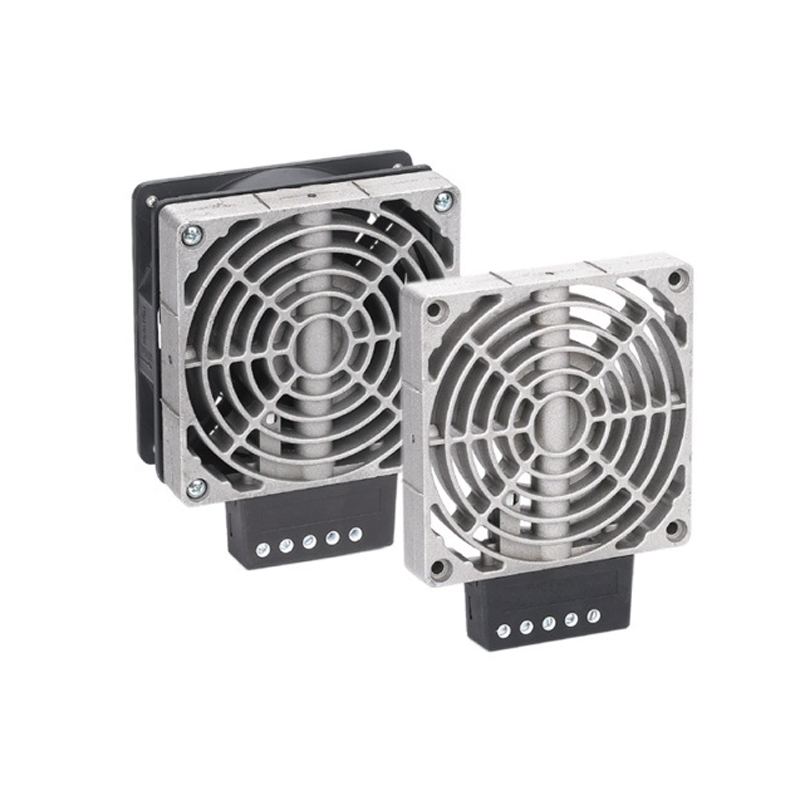

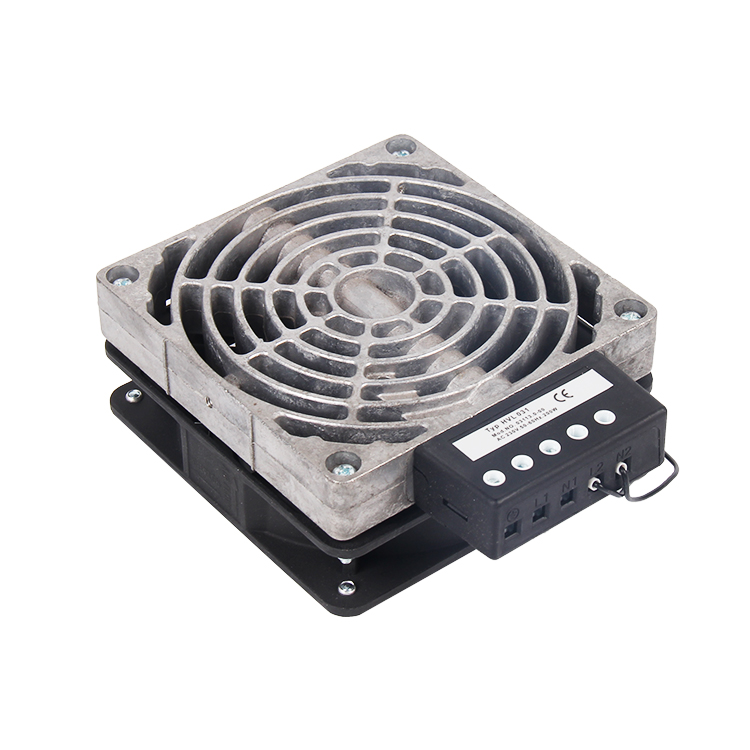

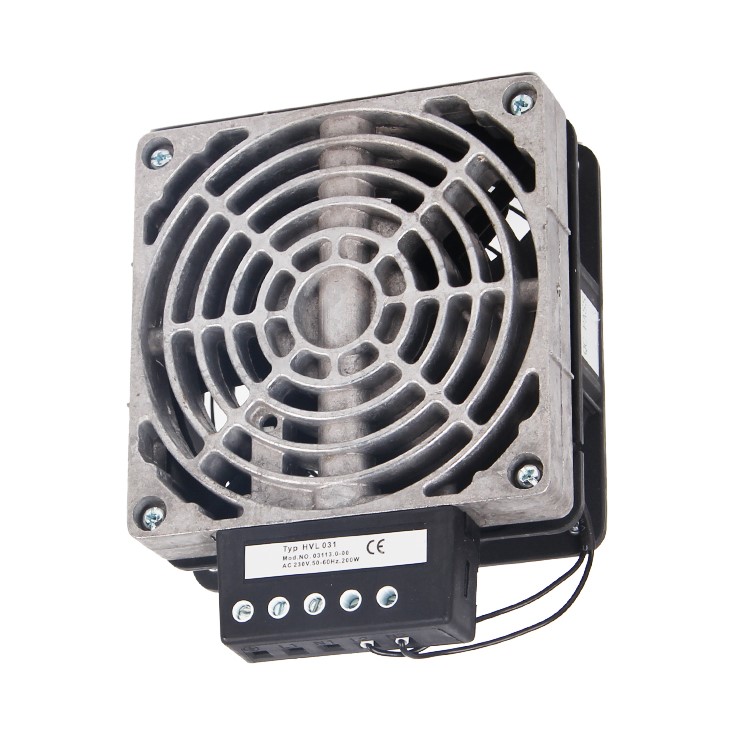

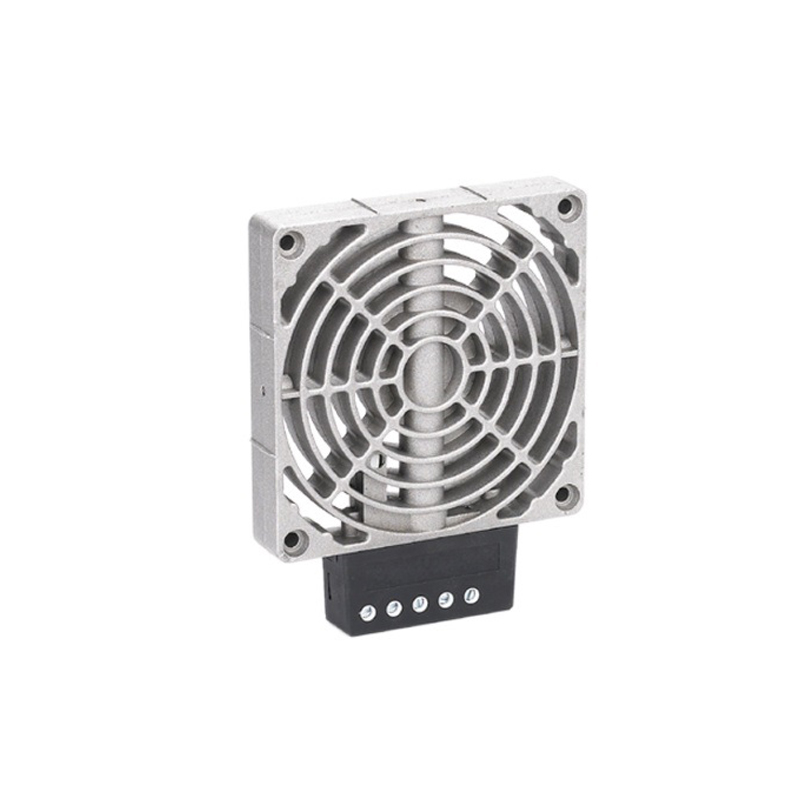

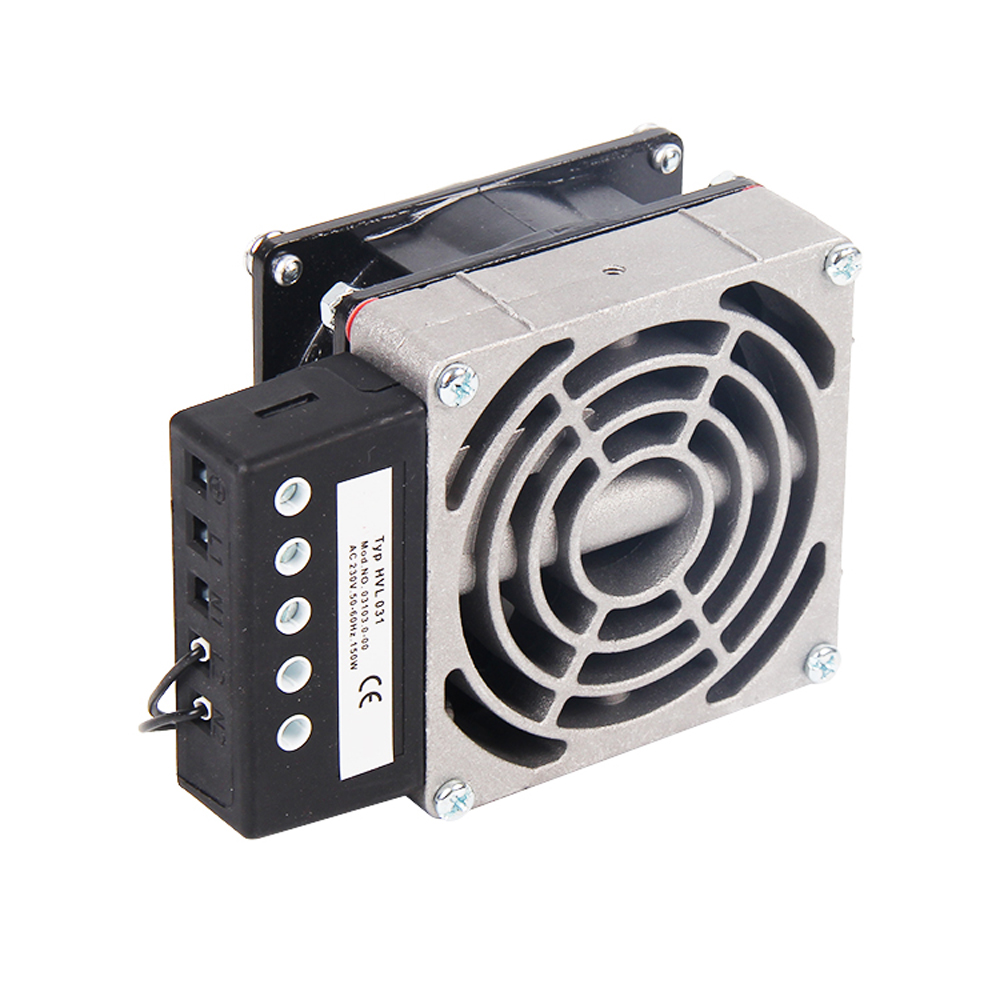

The compact high-performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is available without fan (HV 031) as well as with fan (HVL 031).
Compact
High air through-flow
Flat design
Din Rail Mounted
Temperature safety cut-out
| HV 031 | Heater without fan (fan mounting kit included) |
| HVL 031 | Heater with fan |
| Heating element | high performance cartridge |
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| Heater body | die-cast aluminium (glass bead blasted) |
| Connection | 3-pole screw connector 2.5mm² clamping torque 0.8Nm max |
| Connection casing | plastic according to UL94 V-0,black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Installation position | horizonta |
| Operating/storage tmperature | -45 to+70°C(-49 to +158°F) |
| Ptotection type/Protection class | IP20/ll (earthed) |
| Axial fan, ball bearing | airflow see table service life 50,000h at 25℃(77°F) |
| Connection(axial fan) | 2-pole screw connector 2.5mm²(L2/N2) |
PRODUCT VARIANTS

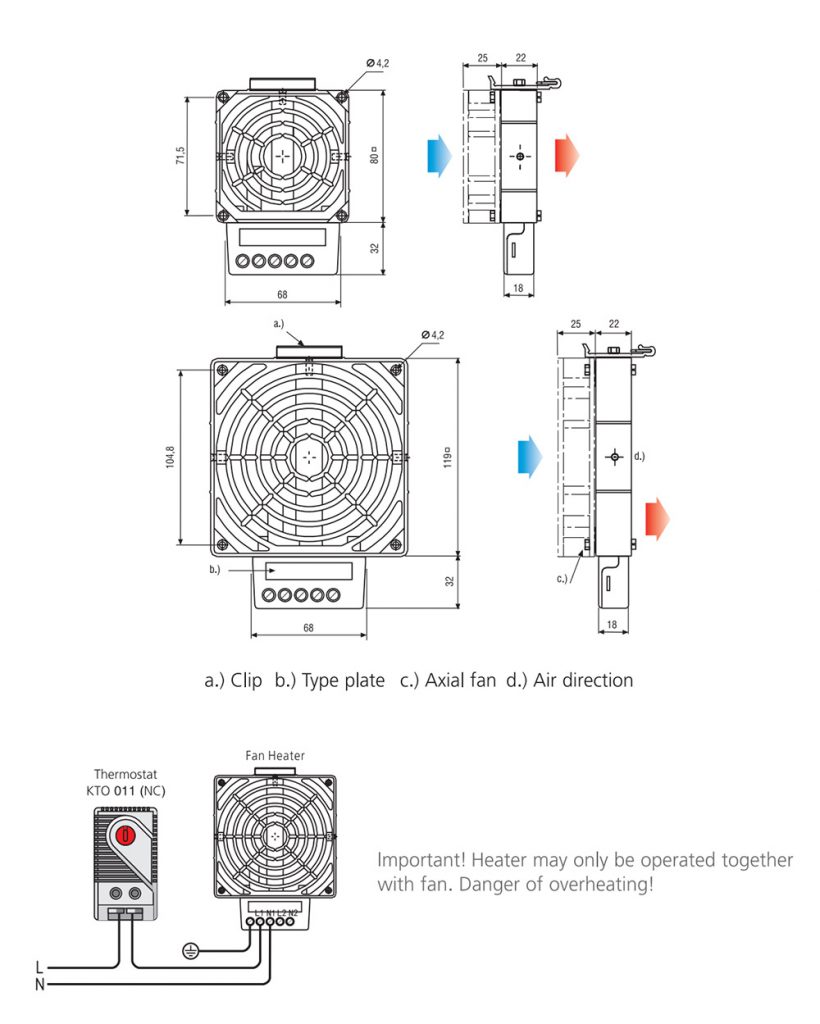

| Art. No. HV 031 | Art. No. HV 031 | Heating capacity | Dimensions | Weight (approx.) |
| 230VAC,50/60Hz | 120VAC,50/60Hz | |||
| 03100.0-00 | 03100.9-00 | 100W | 80 x 112 x 22mm | 0.40kg |
| 03101.0-00 | 03101.9-00 | 150W | 80 x 112 x 22mm | 0.40kg |
| 03110.0-00 | 03110.9-00 | 200W | 119 x 115 x 22mm | 0.50kg |
| 03111.0-00 | 03111.9-00 | 300W | 119 x 115 x 22mm | 0.50kg |
| 03112.0-00 | 03112.9-00 | 400W | 119 x 115 x 22mm | 0.50kg |
| Art. No. HVL 031 | Art. No. HVL 031 | Heating capacity | Airflow min.,free flow | Dimensions | Weight (approx.) |
| 230VAC,50/60Hz | 120VAC,50/60Hz | ||||
| 03102.0-00 | 03102.9-00 | 100W | 35mm³/h | 80 x 112 x 47mm | 0.60kg |
| 03103.0-00 | 03103.9-00 | 150W | 35mm³/h | 80 x 112 x 47mm | 0.60kg |
| 03113.0-00 | 03113.9-00 | 200W | 108mm³/h | 119 x 115 x 47mm | 0.90kg |
| 03114.0-00 | 03114.9-00 | 300W | 108mm³/h | 119 x 115 x 47mm | 0.90kg |
| 03115.0-00 | 03115.0-00 | 400W | 108mm³/h | 119 x 115 x 47mm | 0.90kg |
