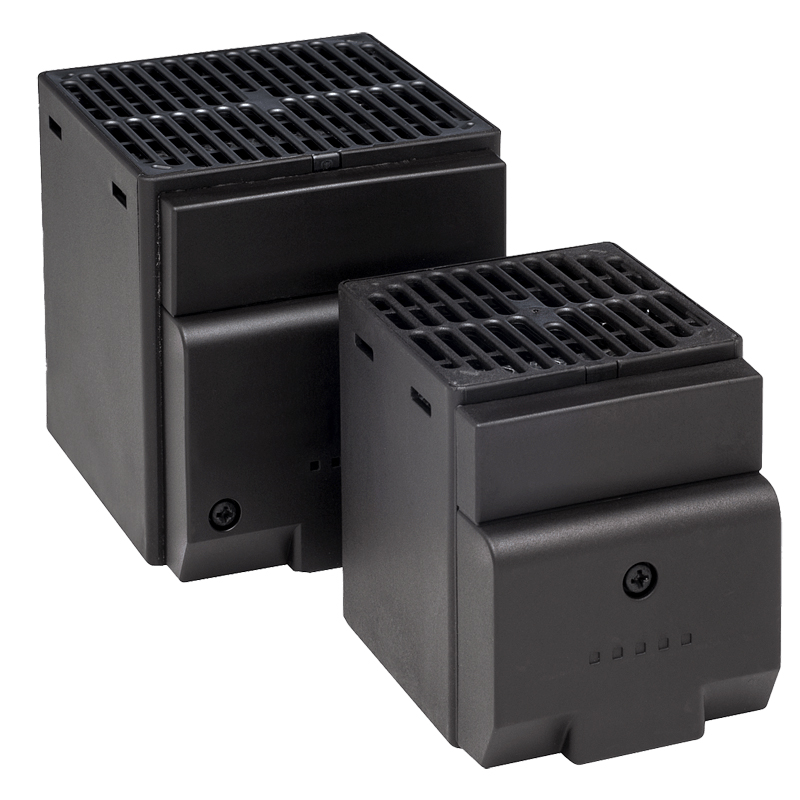

Compact Semiconductor Fan Heater CSL 028


Availability:

Quantity:



Inquire Add to Basket

CSL 028

This compact enclosure heater with fan and PTC heating element prevents condensation in enclosures with a high component density. The touch-safe plastic casing ensures user safety by protecting against heat.

Model:
CSL 028
Brand:
YUZEY

Semiconductor Heater Industrial Heater Cabinet Heater Enclosure Heater enclosure heater with fan Electric Heater PTC Heater Fan Heater Stego Heater aluminum heater

Product Description

CSL 028

PTC heating element: temperature-limiting, direct response behavior
Touch-safe heat protection
Screw fixing and mounting with clip fixing for DIN rail 35 mm possible
Electrical connection via pressure clamps
Temperature safety cut-out to prevent overheating

OVERVIEW TECHNICAL DATA

Device type	Fan heater;Touchsafe
Protection class	II
Protection type	IP20
Heating element	PTC resistor (PTC)
Casing	Plastic to UL94 V-0, black
AC/DC	AC
Frequency	50;60 Hz
Service life	>40000 h
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C
Connection type	Connection terminal
Torque	0,8 Nmmax.
Connection	2-pole clamp 2.5 mm², max. torque 0.8 Nm
Installation position	Airflow direction "in" vertical / connection at the bottom
Height	90 mm
Width	85 mm
Depth	113 mm
Weight	500 g
Item number accessories 1	252017
Accessory 1	Air routing for improved heat distribution
Note	Other voltages on request;Heating capacity at +20°C (+68°F) ambient temperature.

PRODUCT VARIANTS

Article number	Operating voltage	Operating voltage tolerance	Inrush current	Recommended backup fuse	Heating capacity	Mounting
02810.0-00	230 V	208 V - 253 V	15 A	16 A	400 W	Clip for 35 mm DIN rail
02810.0-01	230 V	208 V - 253 V	15 A	16 A	400 W	Screw fixing
02810.9-00	120 V	108 V - 132 V	9 A	10 A	400 W	Clip for 35 mm DIN rail
02810.9-01	120 V	108 V - 132 V	9 A	10 A	400 W	Screw fixing
02811.0-00	230 V	208 V - 253 V	9 A	10 A	250 W	Clip for 35 mm DIN rail
02811.0-01	230 V	208 V - 253 V	9 A	10 A	250 W	Screw fixing
02811.9-00	120 V	108 V - 132 V	6 A	10 A	250 W	Clip for 35 mm DIN rail
02811.9-01	120 V	108 V - 132 V	6 A	10 A	250 W	Screw fixing
