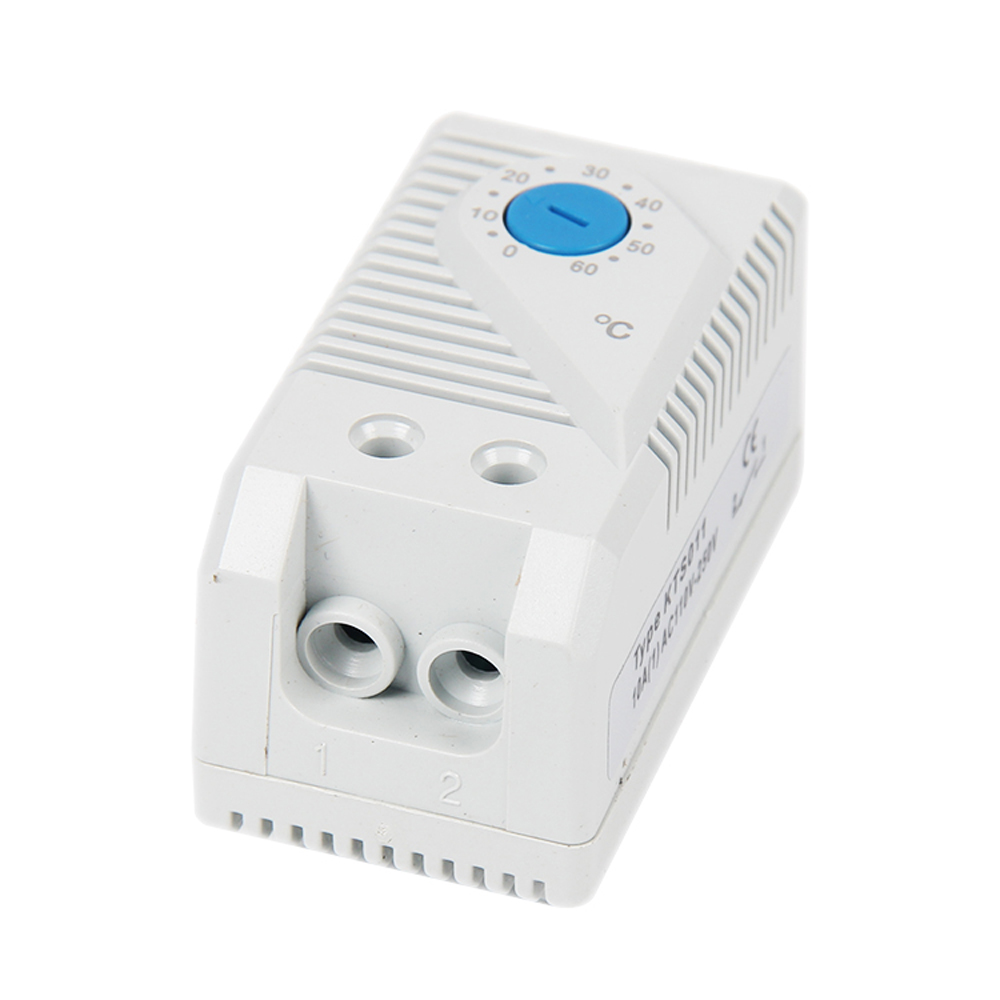

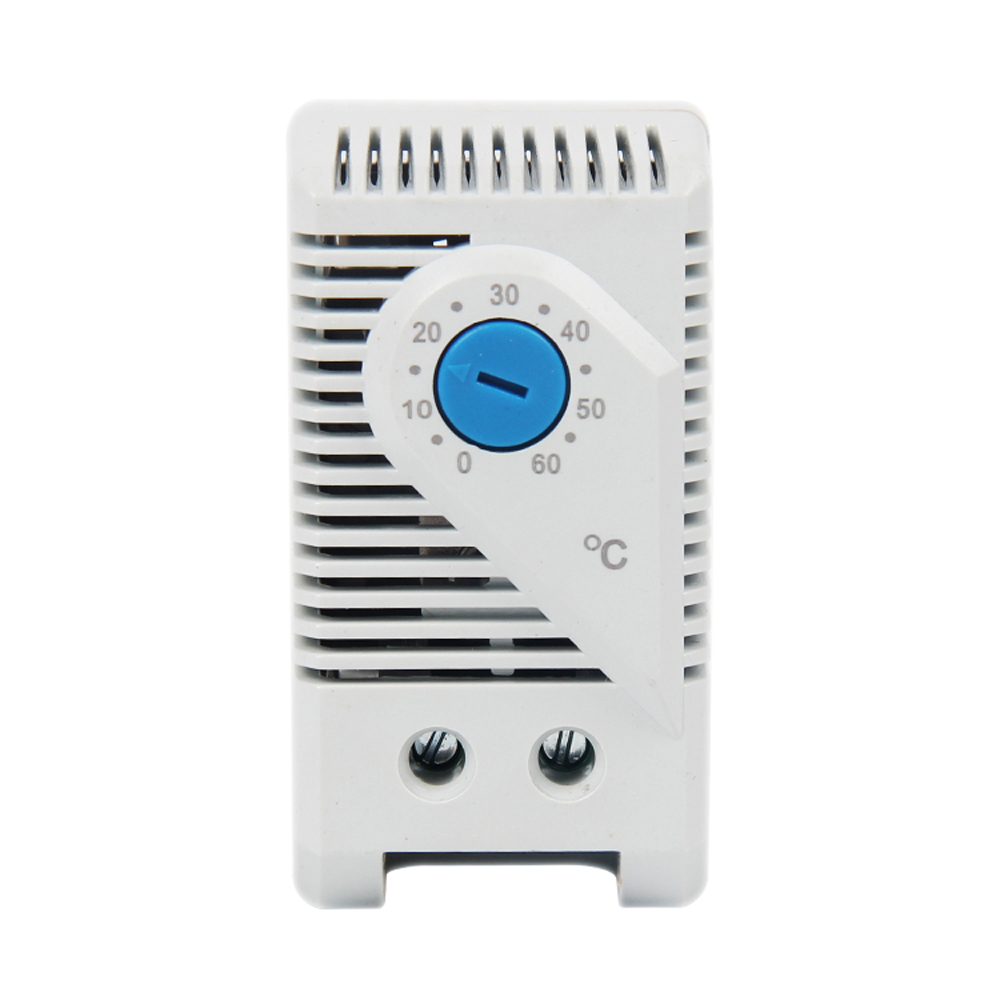

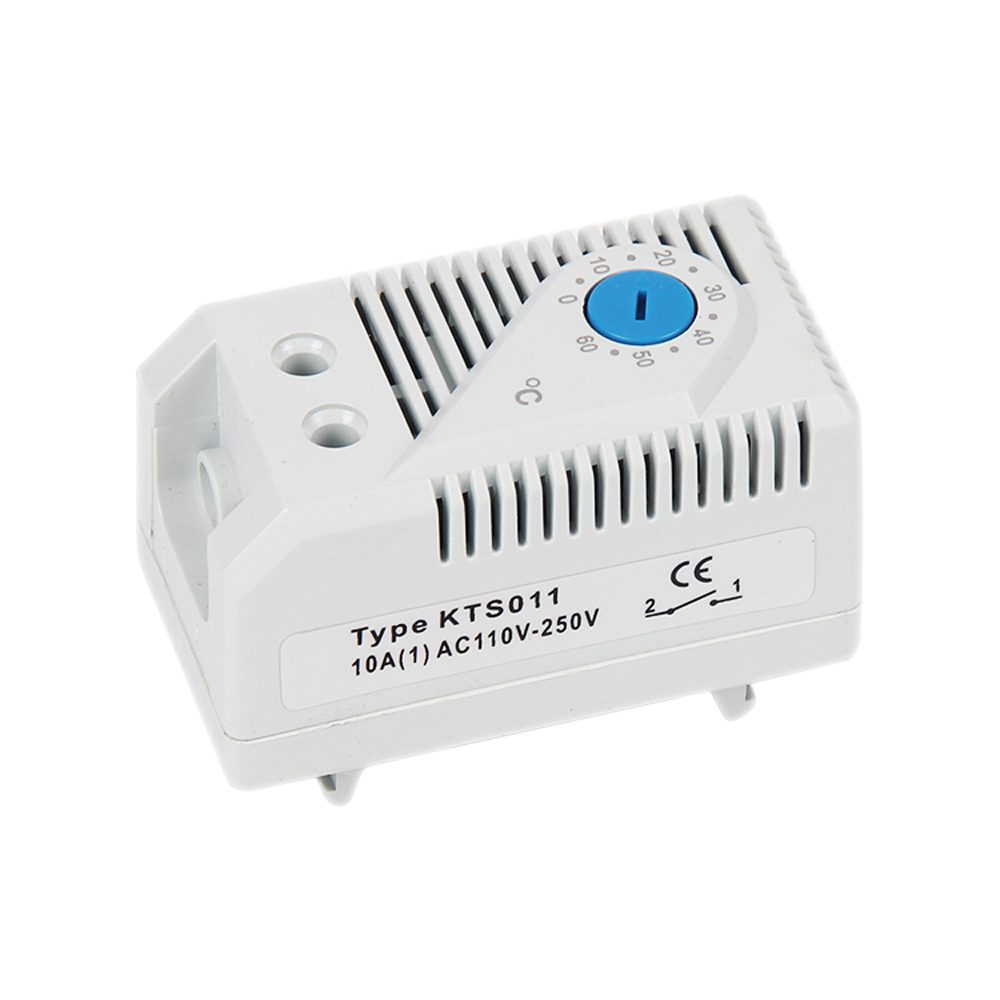

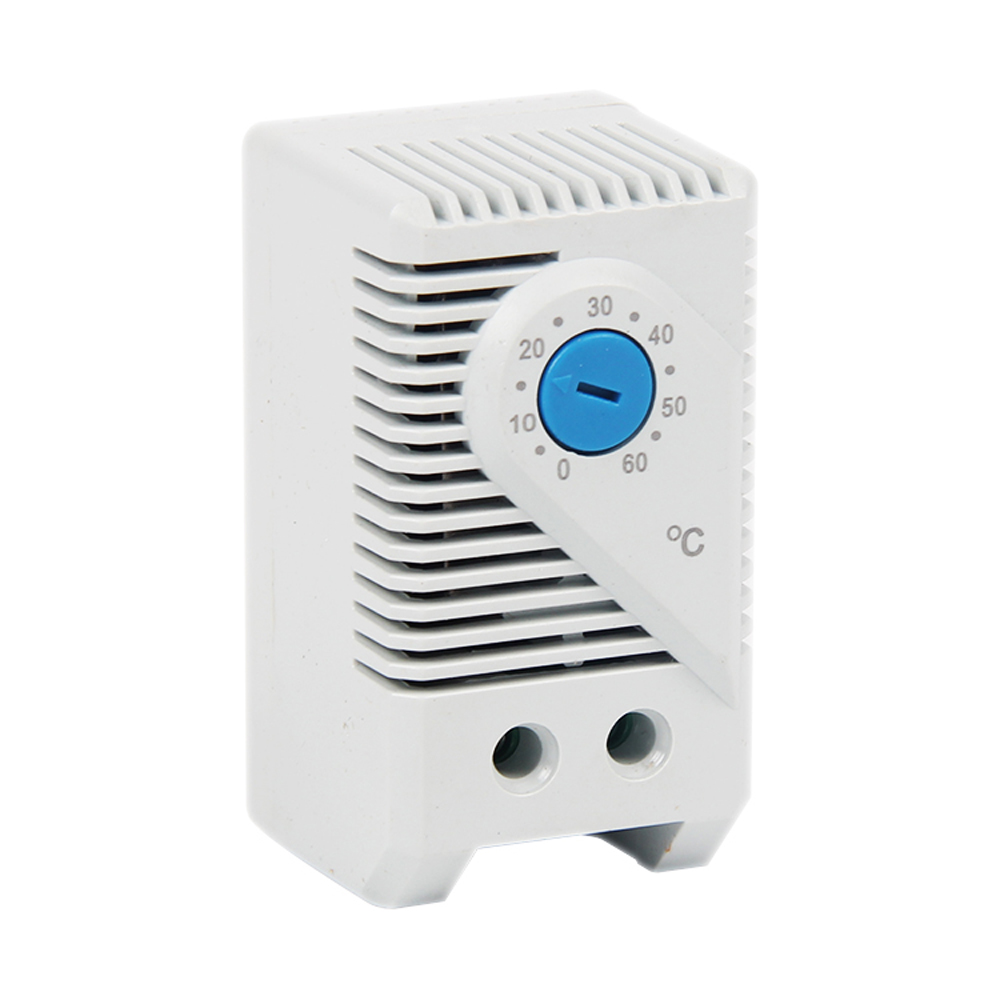

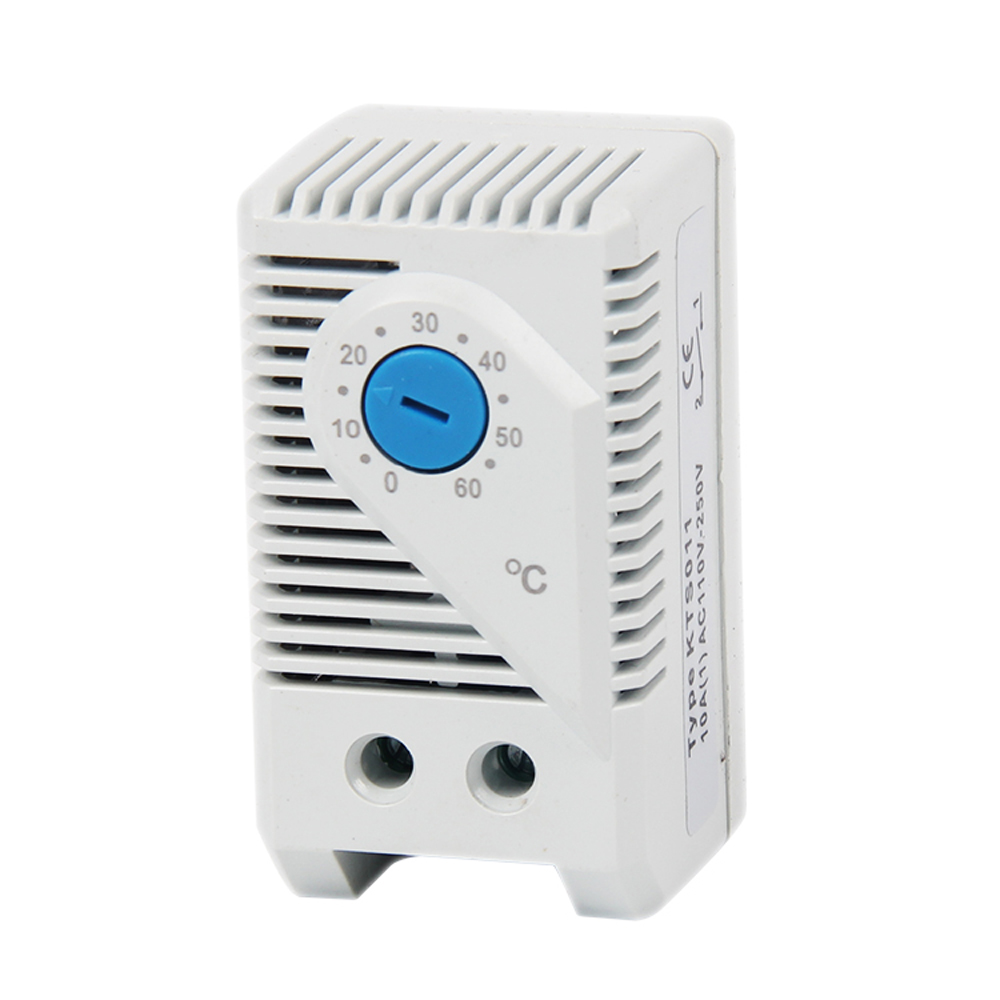

KTS 011
YUZEY

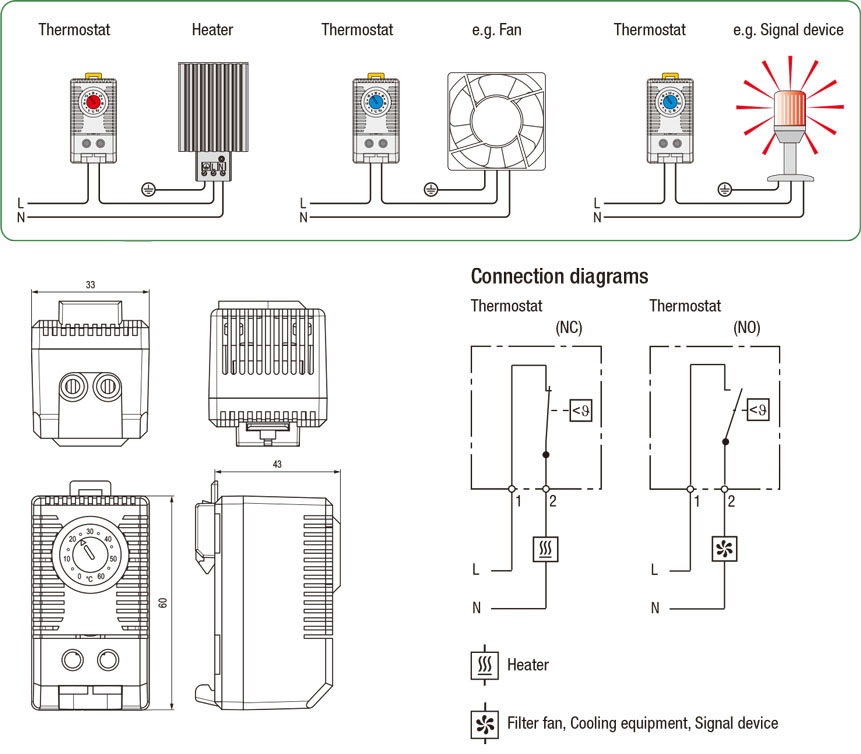

The mechanical NO thermostat closes when the temperature rises and is used to control filter fans, heat exchangers, cooling devices or to switch signal transmitters when the temperature is exceeded. The use of push-in terminals prevents the supply lines from coming loose.

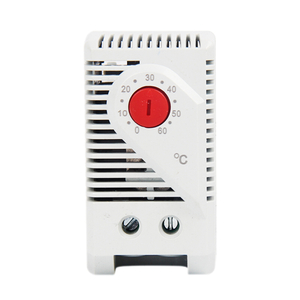

KT0 011:Thermostat (NC);contact breaker for regulating heaters.Ihe contact opens when temperature is rising

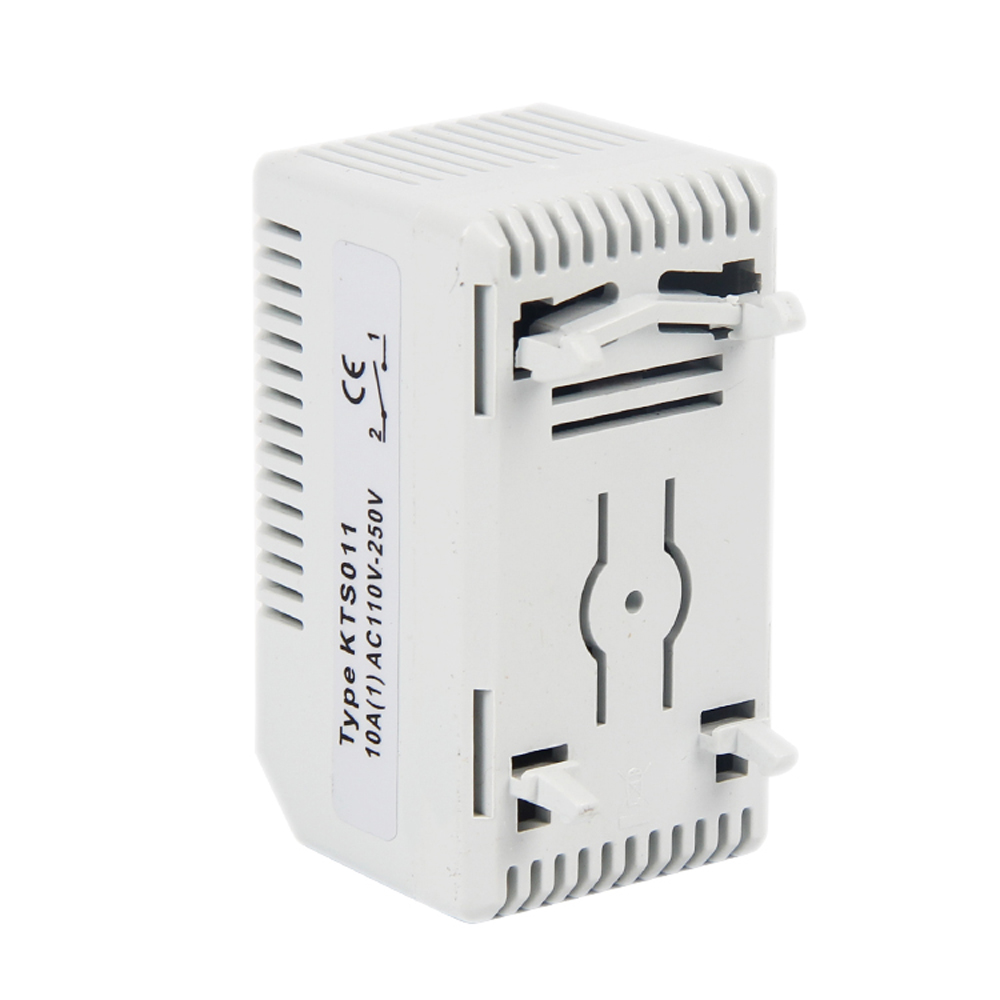

KTS 011:Thermostat (NO);contact maker for regulating of filter fans and heat exchangers or for switching signal
devises when temperature limit has been exceeded.The contact closes when temperature is rising
Small dimensions
Large setting range
High switching accuracy
Clip mounting
| Switch temperature difference | 7K(±4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Contact resistance | <10mΩ |
| Service life | >100,000 cycles |
| Max. Switching capacity | 250VAC, 10(2)A 120VAC, 15(2)A DC 30W |
| EMC | acc.to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3 |
| Connection | 2-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail,EN60715 or for exit filter EF 118 Series |
| Casing | plastic according to UL94 V-0,light grey |
| Dimensions | 60x33x43mm |
| Weight | approx.40g |
| Fitting position | variable |
| Operating/Storage temperature | -20 to+80℃(-4 to +176°F)/-45 to+80℃(-49 to +176℉) |
| Protection type | IP20 |
| Setting range | Art. No. Contact Breaker (NC) | Art. No. Contact Breaker (NO) | Approvals |
| 0 to +60℃ | 01140.0-00 | 01141.0-00 | CE |
| -10 to +50℃ | 01142.0-00 | 01143.0-00 | CE |
| +20 to +80℃ | 01159.0-00 | 01158.0-00 | CE |
| +32 to +140℉ | 01140.9-00 | 01141.9-00 | CE |
| +14 to +122℉ | 01142.9-00 | 01143.9-00 | CE |
