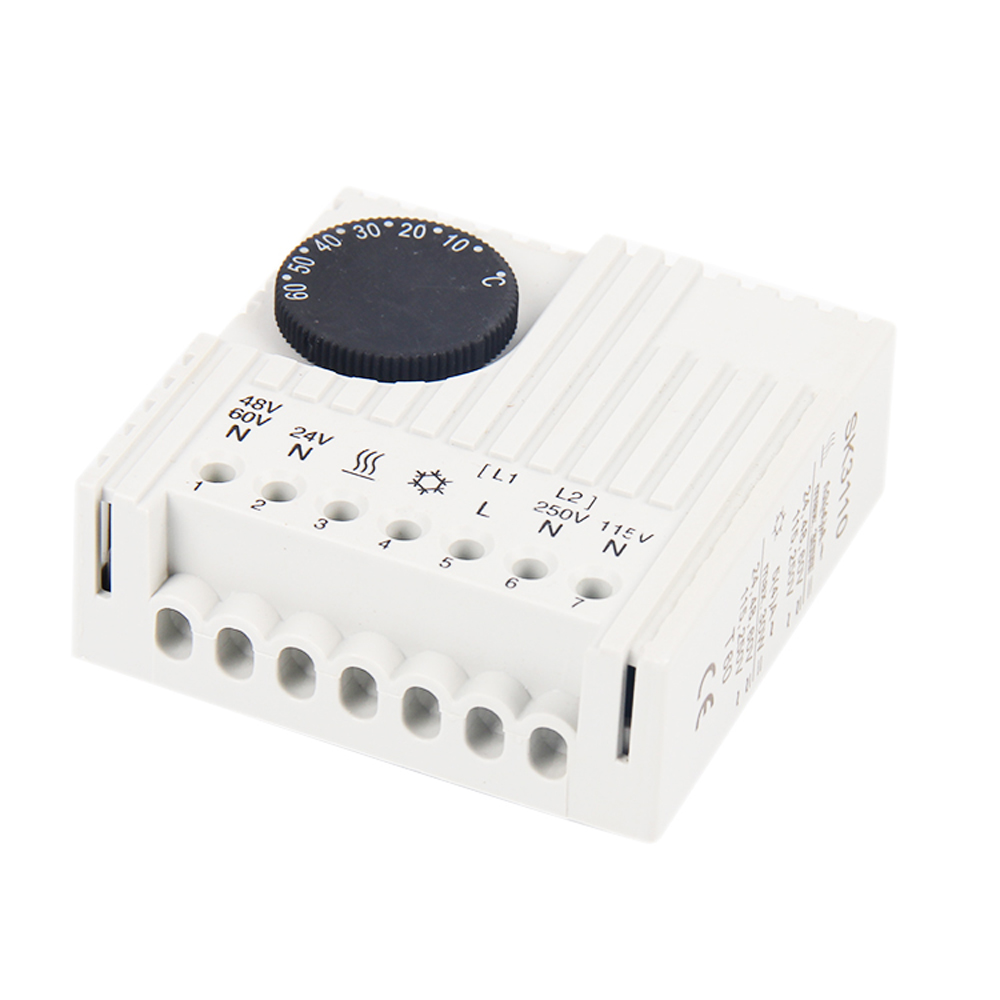

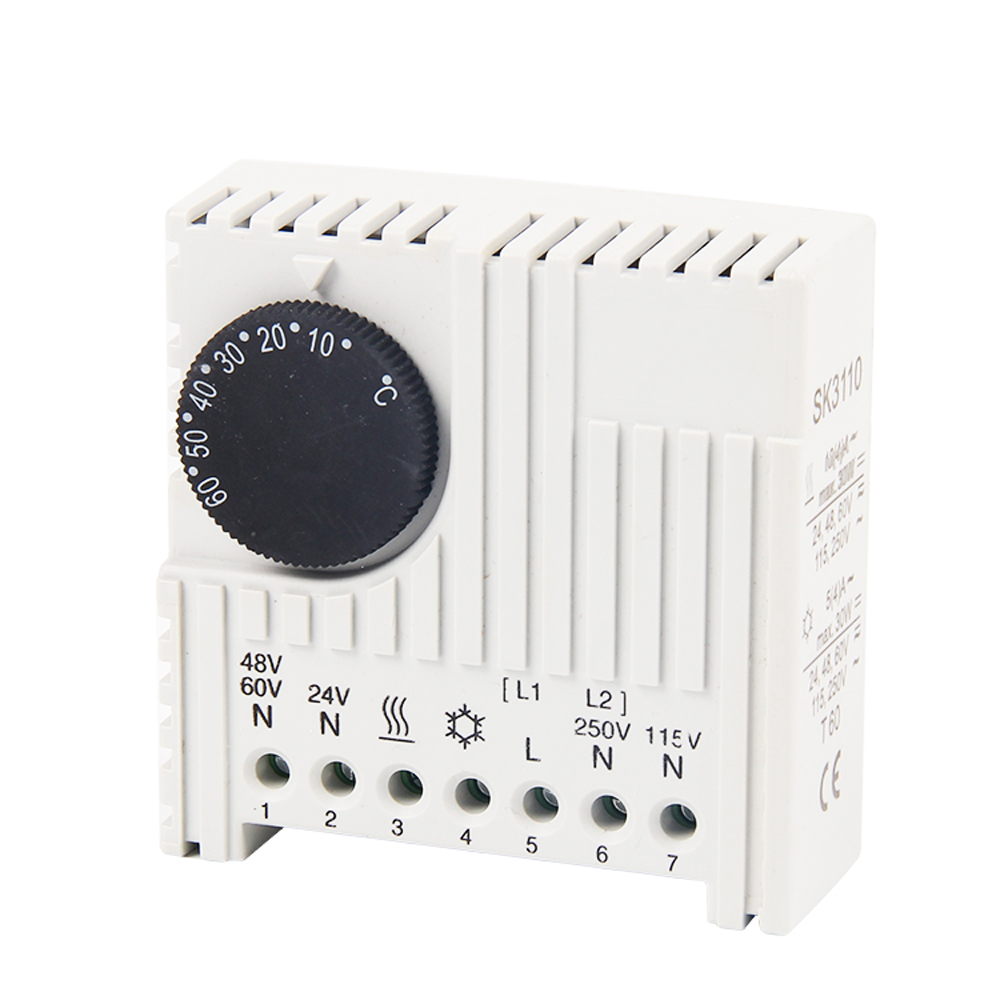

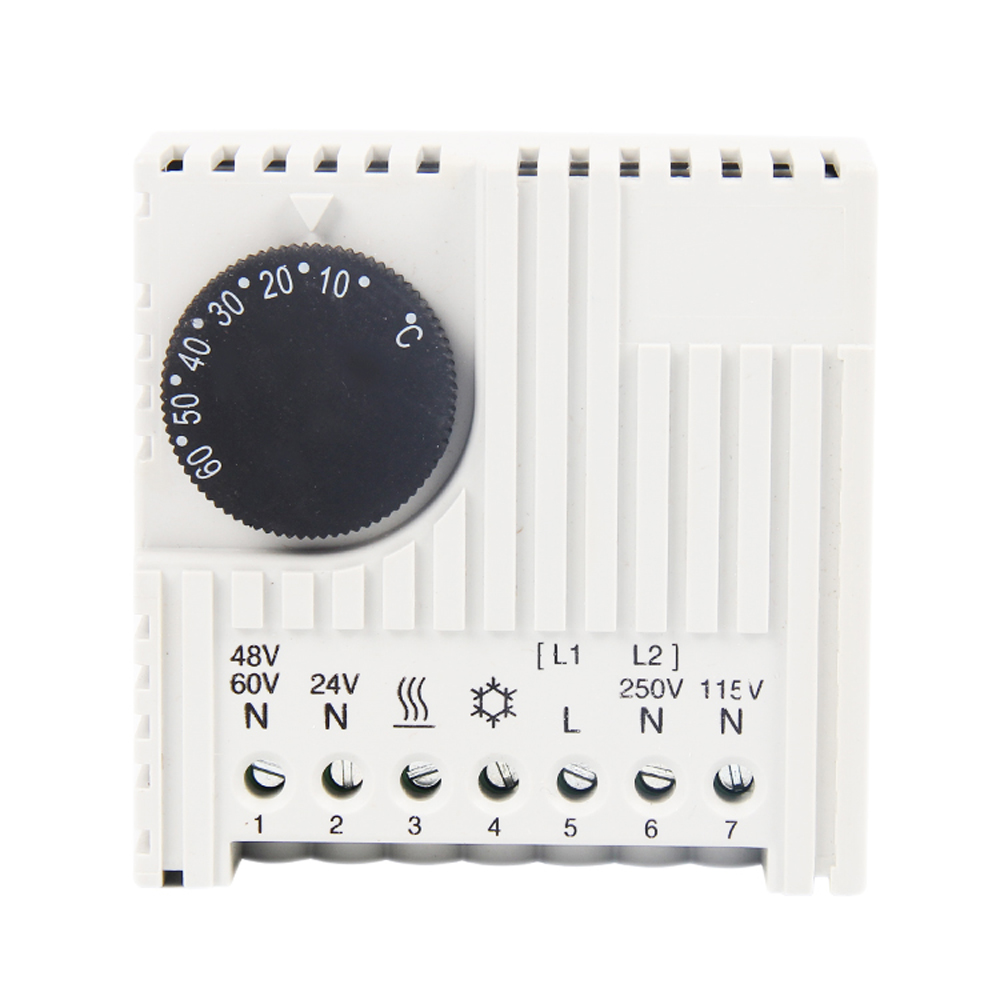

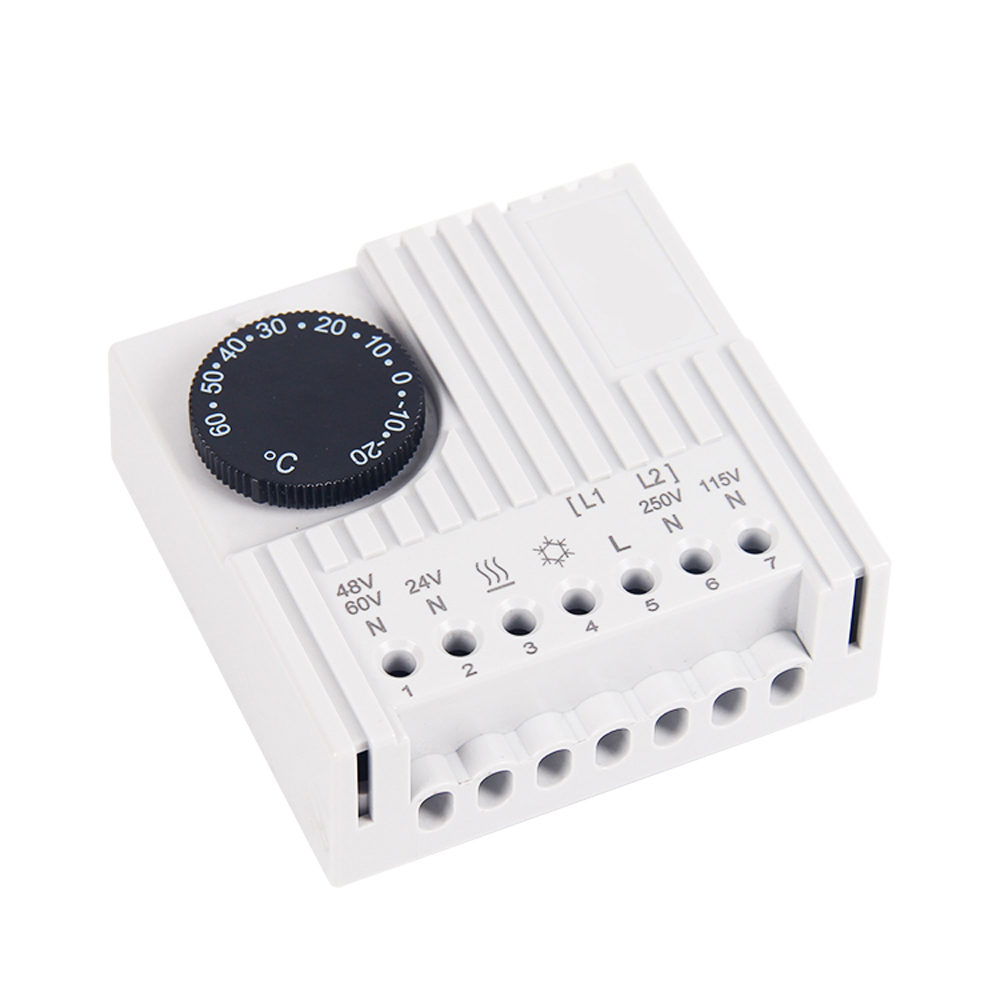

SK3110
Especially used for controlling fan filter, heater and heat exchanger, also could be monitoring the electric cabinetinner temperature when working as signal arouser
● Adjusting range:-20℃ to +60℃
● Weight:105g

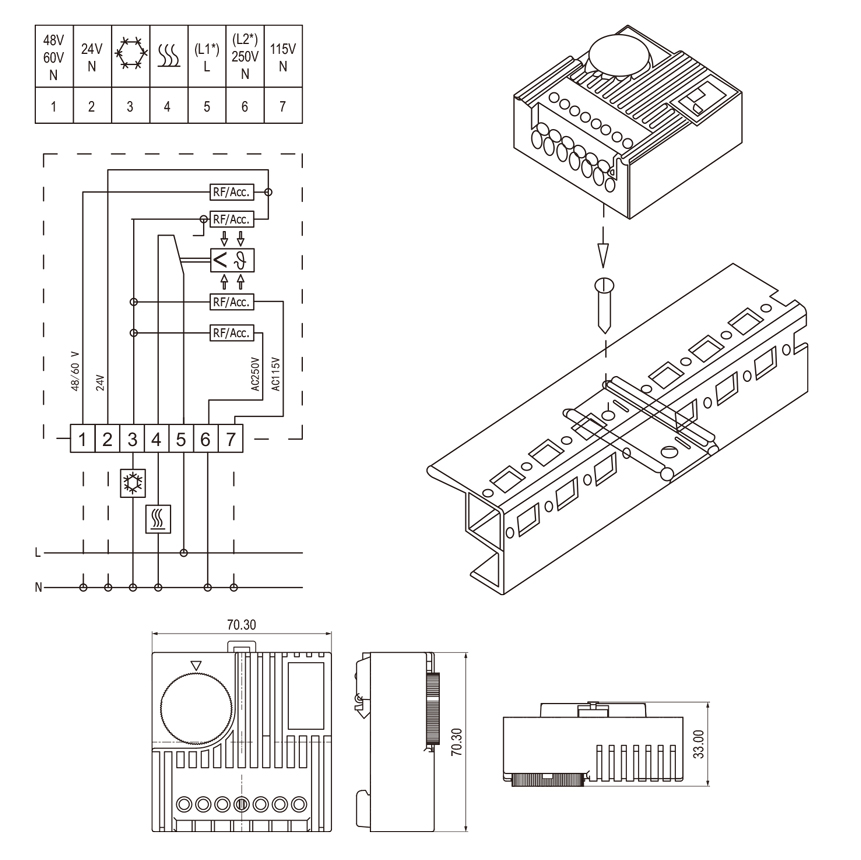

● Size :70×70×33.5mm
● Make bimetal sensor as heat sensitivity set to feedback of heat.
● Contact point scheme: single switch over contact point as instant switch component
● allowed load of contact point
● Switch discrepancy”1K±0.8K
● Voltage scope is wide, any type could be used from 24V to 230V
● Time-saving connection, terminal block could be installed with screw from outside
● Easy installation, it could be installed to 35mm din rail vertically or horizontally
OVERVIEW TECHNICAL DATA
SK3110
|
Operating voltage | 24/48/60/115/250VAC |
Max load | 16A |
Temperature range | -20~60°C |
Function | heating, cooling |
Switching Differential | 1K+/-0.8K |
Sensor | internal |
Ambient temperature | -5~60°C |
Protect class | IP20 |
Materia | fireproof UL 94 V-0 |
Sensor type | NTC |
