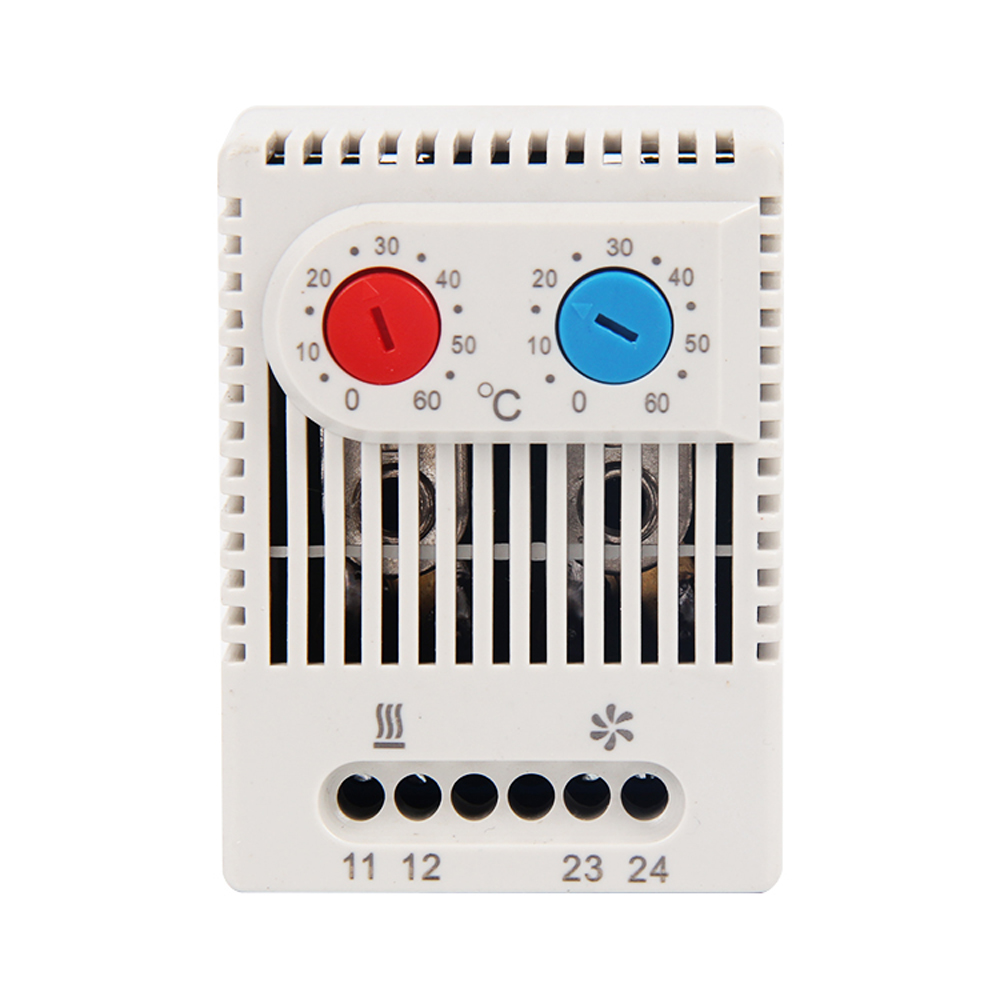

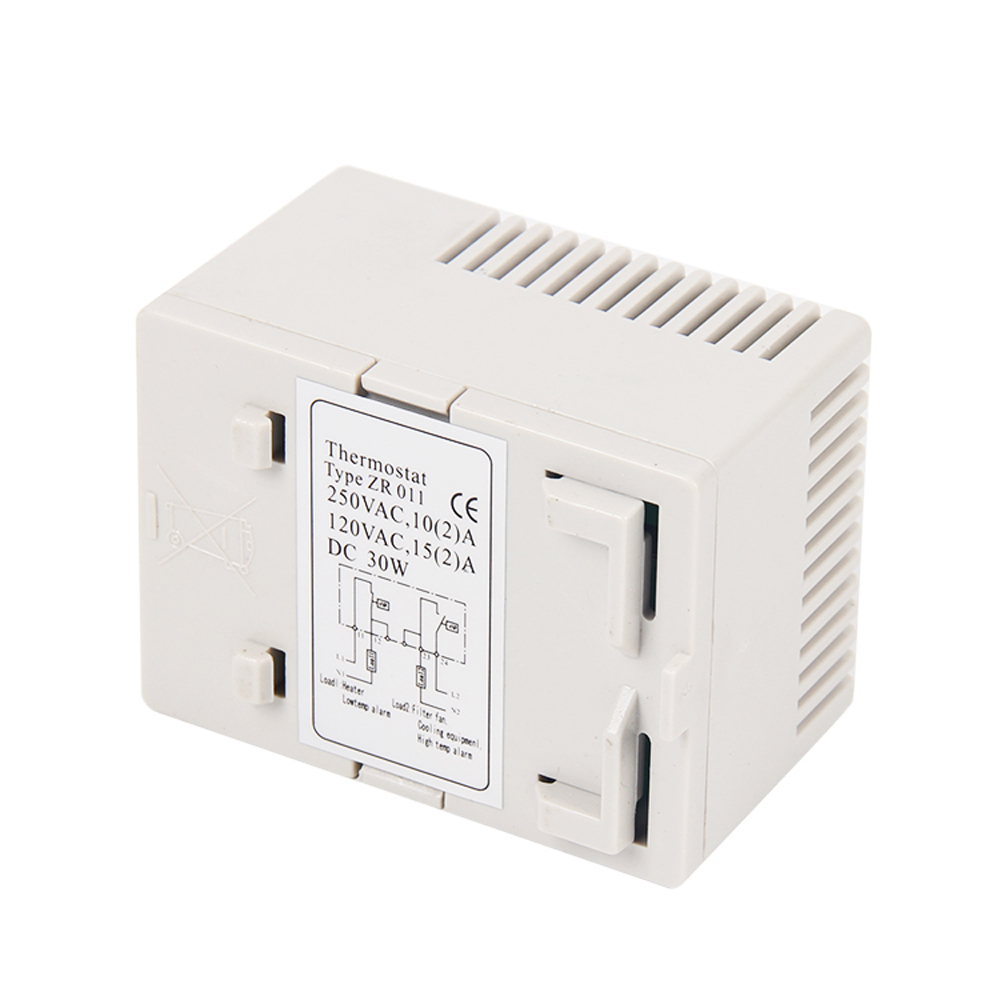

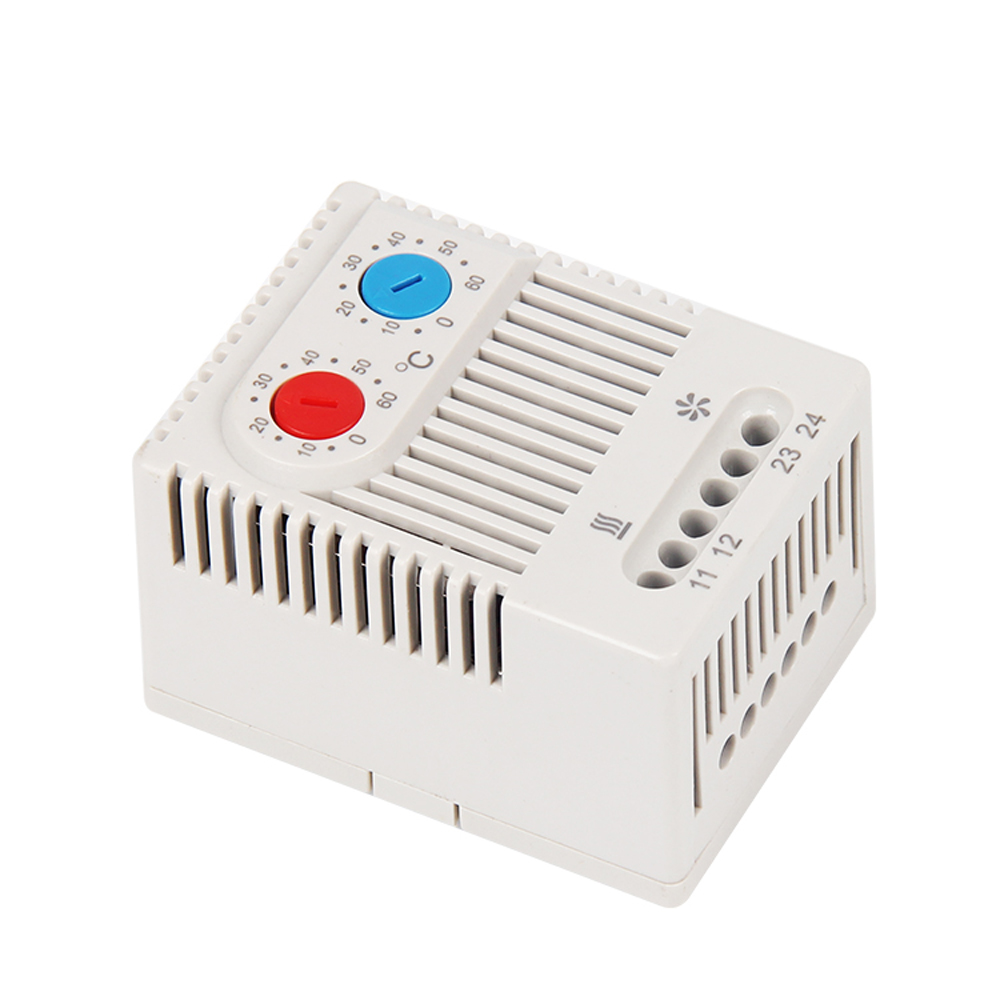

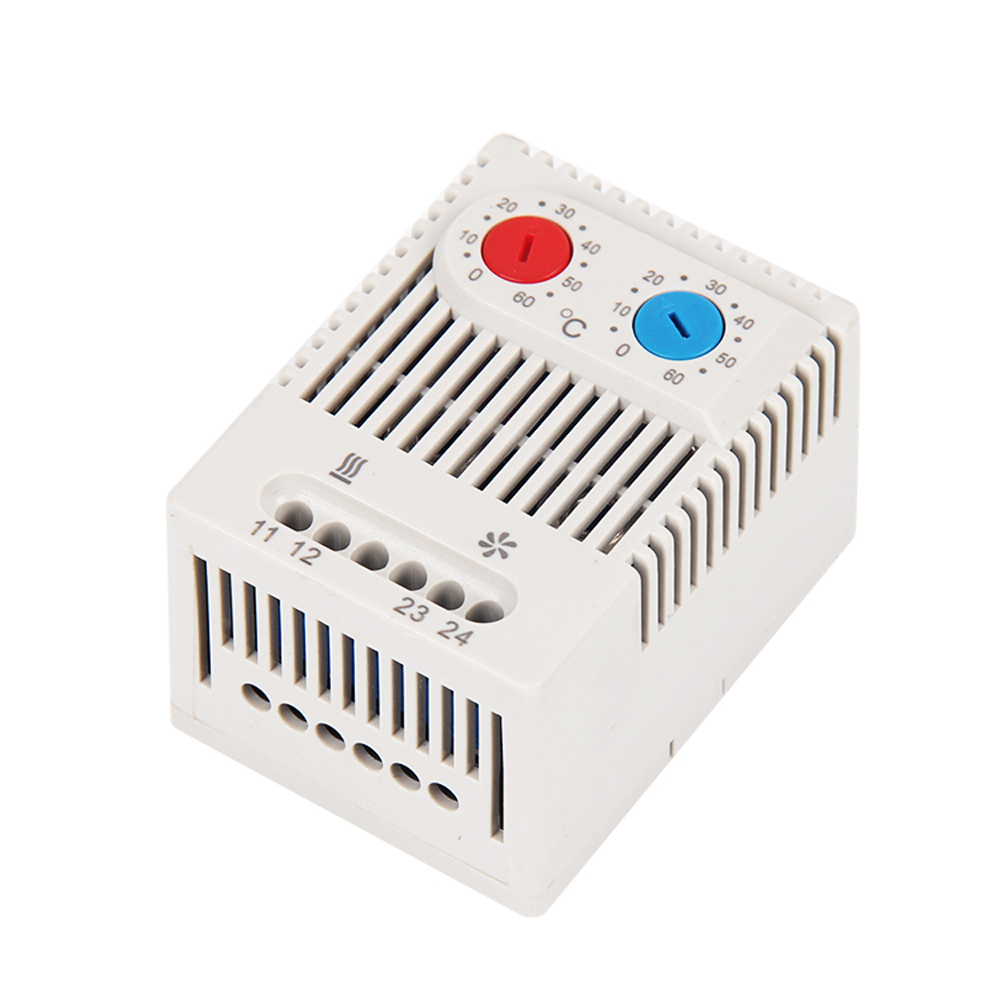

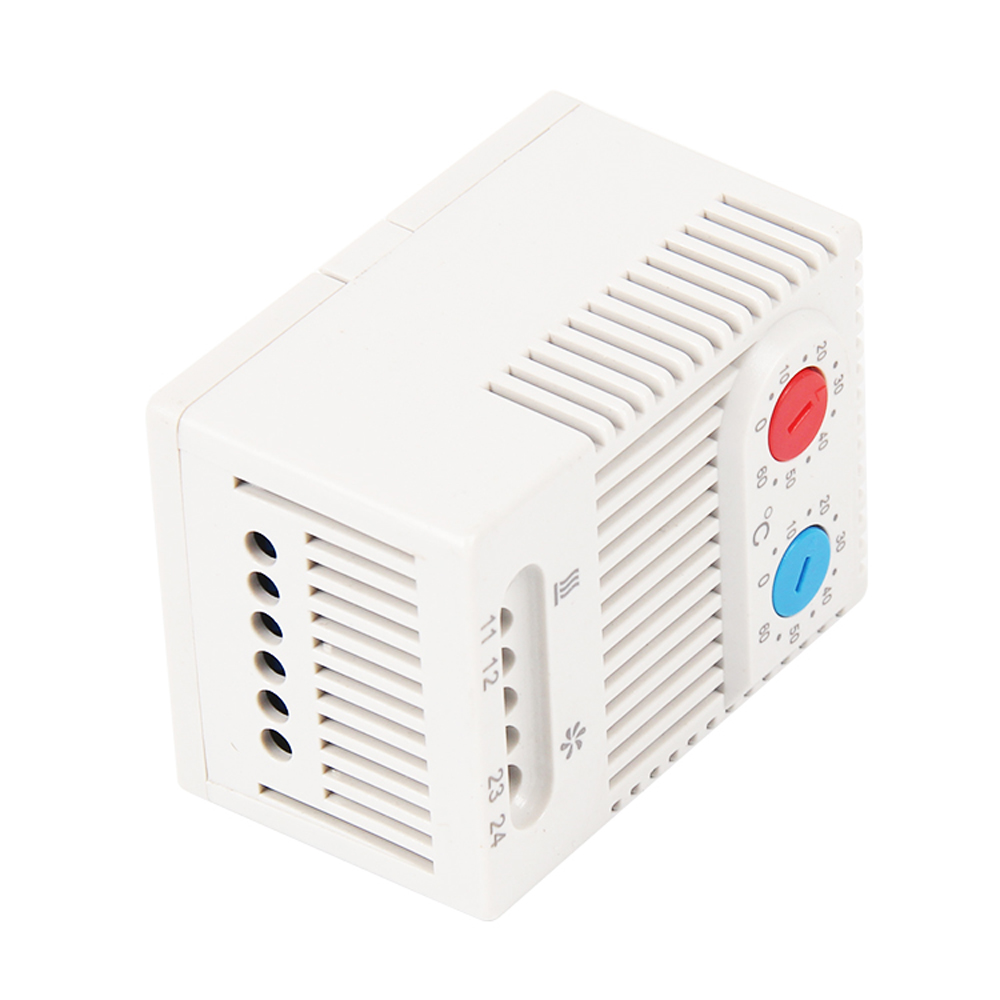

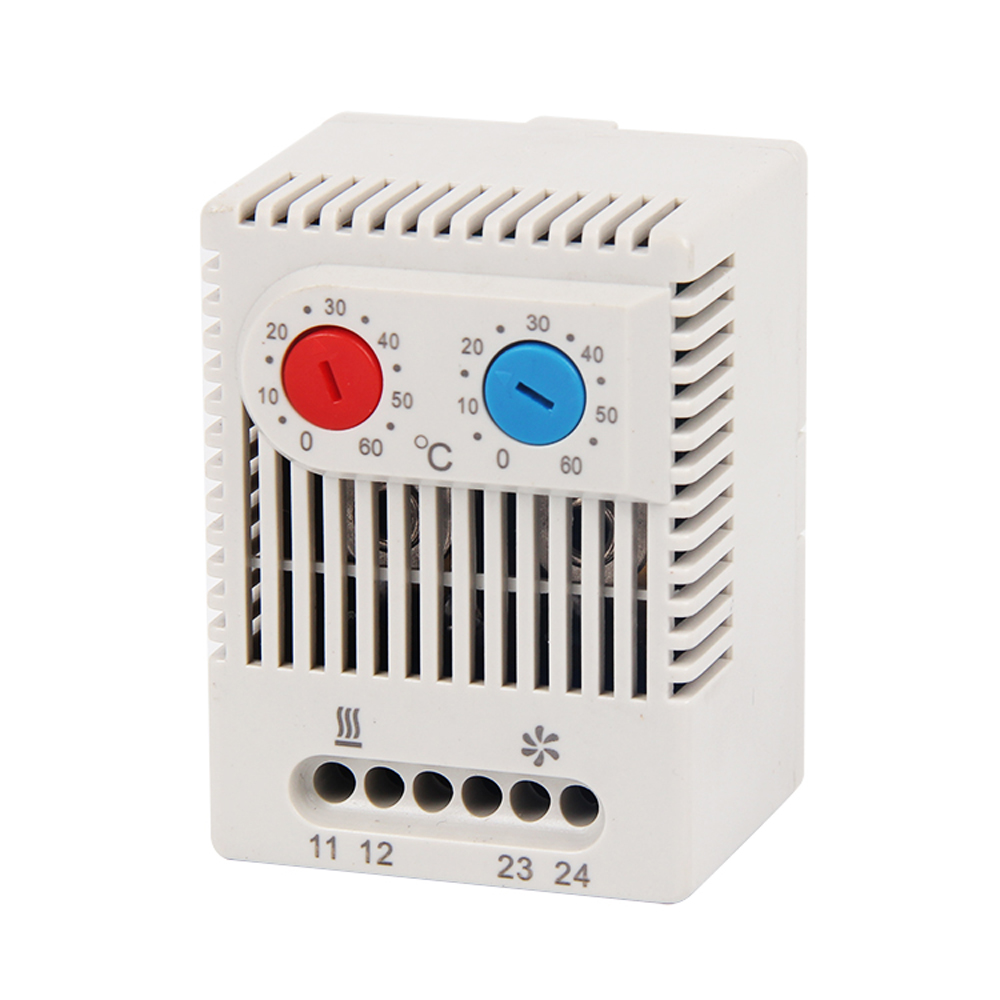

Dual Thermostat ZR 011


Availability:

Quantity:



Inquire Add to Basket

ZR 011

Normally closed (NC) and normally open (NO) thermostats in one casing. Unlike thermostats with changeover contacts, the double thermostat switches independently. This allows heating and cooling devices to be switched in different temperature ranges.

Model:
ZR 011
Brand:
YUZEY

thermostat temperature controllers temperature regulator cabinet thermostat enclosure thermostat cabinet temperature controller enclosure temperature controller thermostat switch mechanical thermostats industrial thermostat

Product Description

ZR 011

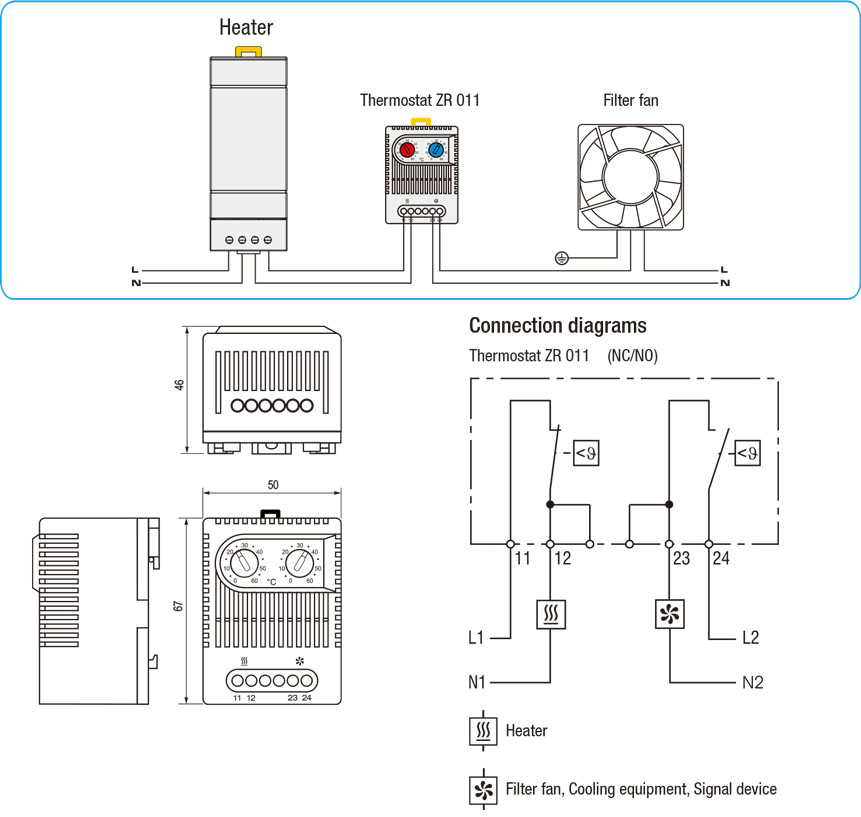

Two thermostats in one casing:

Thermostat (contact breaker, normally closed) for regulating heaters. The contact opens when temperature is rising.

Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.

Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.

Normally closed (NC, heating) and normally open (NO, cooling) in one casing
Snap-action contact enables independent switching
Temperatures can be adjusted separately
High switching capacity
Clip mounting

OVERVIEW TECHNICAL DATA

Switch temperature difference	7K(±4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	<10mΩ
Service life	>100,000 cycles
Max.Switching capacity	250VAC, 10(2)A 120VAC, 15(2)A DC 30W
EMC	acc.to EN 55014-1-2，EN 61000-3-2，EN 61000-3-3
Connection	4-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail,EN60715 or for exit filter EF 118 Series
Casing	plastic according to UL94 V-0,light grey
Dimensions	67x50x46mm
Weight	approx. 90g
Installation position	variable
Operating/Storage temperature	-20 to+80℃(-4 to +176°F)/-45 to+80℃(-49 to +176℉)
Protection type	IP20

PRODUCTS VARIANTS

Art. No.	Setting range		Approvals
01172.0-00	contact breaker,normally closed	0 to +60℃	contact maker, normally open	0 to +60℃
01172.0-01	contact breaker,normally closed	+32 to +140℉	contact maker, normally open	+32 to +140℉
01175.0-00	contact breaker,normally closed	-10 to +50℃	contact maker, normally open	+20 to +80℃
01175.0-01	contact breaker,normally closed	+14 to +122℉	contact maker, normally open	+68 to +176℉
01176.0-00*	contact maker,normally open	0 to +60℃	contact maker, normally open	0 to +60℃
01176.0-01*	contact maker,normally open	+32 to +140℉	contact maker, normally open	+32 to +140℉
