Electronic Relay SM 010


Availability:

Quantity:



Inquire Add to Basket

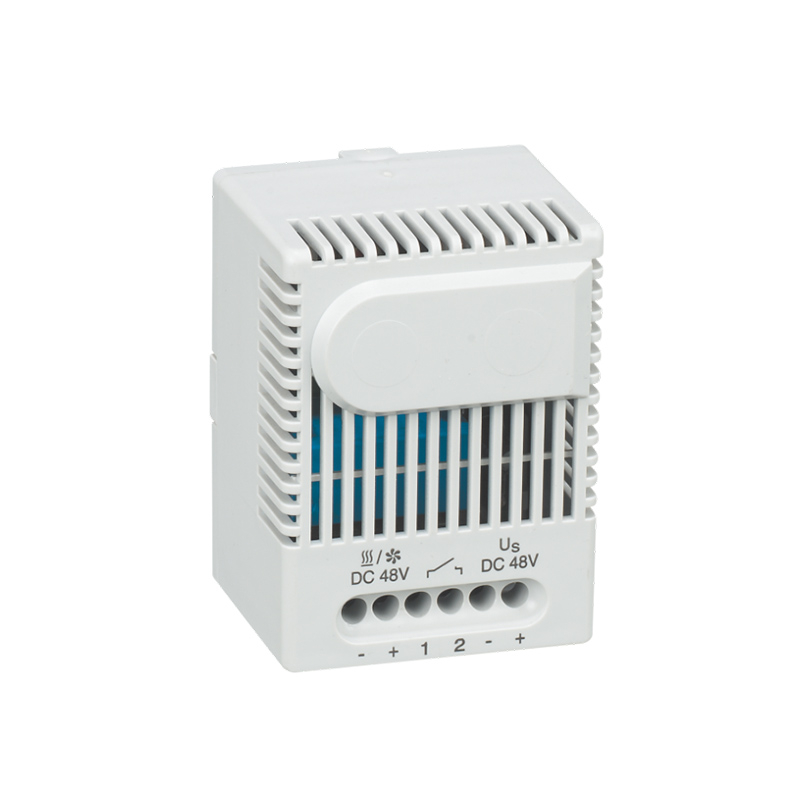

SM 010

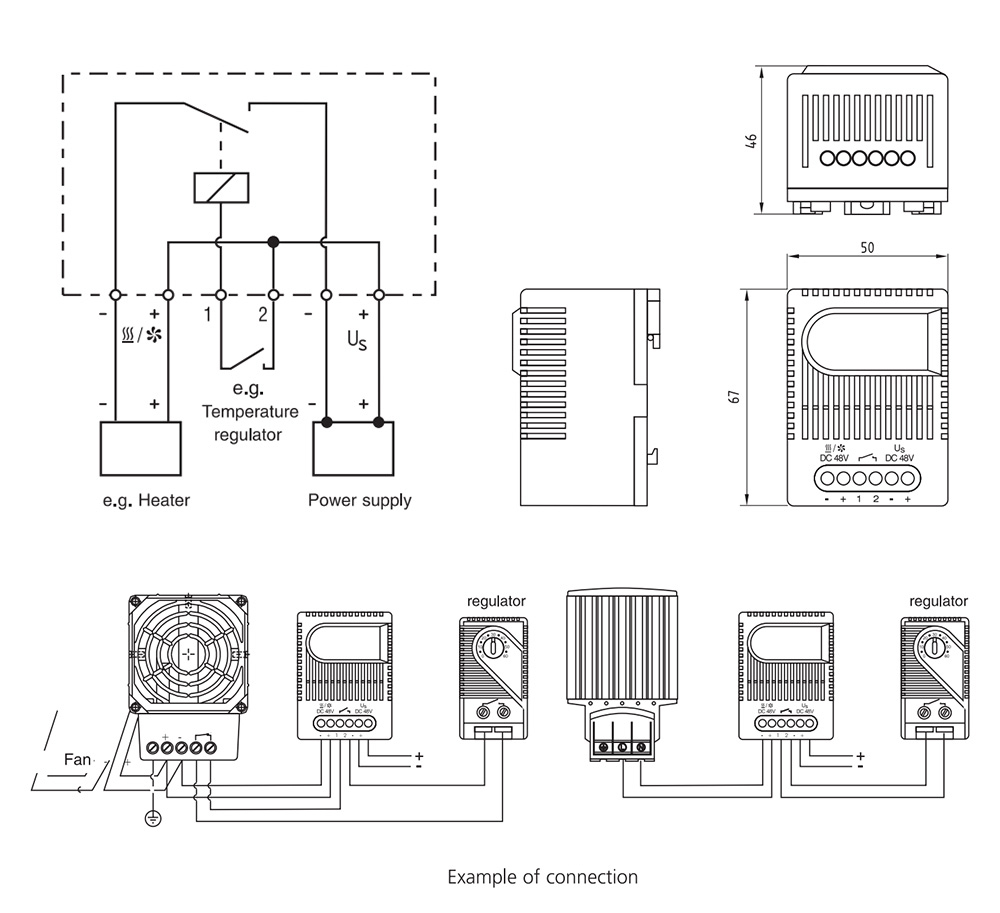

Electronic relay for switching DC appliances with high switching capacity. A separate conventional switch contact is used as controller (e.g. temperature regulator, humidity regulator). The electronic relay is available in 24VDC and 48VDC versions.

Model:
SM 010
Brand:
YUZEY

thermostat temperature controllers electronic relay cabinet thermostat enclosure thermostat electronic thermostat enclosure temperature controller thermostat switch mechanical thermostats industrial thermostat

Product Description

SM 010

● High DC switching capacity

● Compact design
● Simple connection
● Clip mountimg

OVERVIEW TECHNICAL DATA

Contact type	contact maker, normally open (Relay/MOSFET)
Contact resistance	< 10mQ
Service life	> 100,000 cycles
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	6-pole terminal.clamping torque 0.5Nm max.iigid wire 2.5mm2
Mounting	dip for 35mm DIN rail,EN60715 or for exit filter EF 118 Series
Casing	plastic according to UL94 V-0z light grey
Dimensions	67 x 50 x 46mm
Weight	approx. 85g
Installation position	variable
Operating/Storage temperature	-2010+80^(-4 to +176°F) /-4510+80^(-49 to +176°F)
Protection type	IP20
