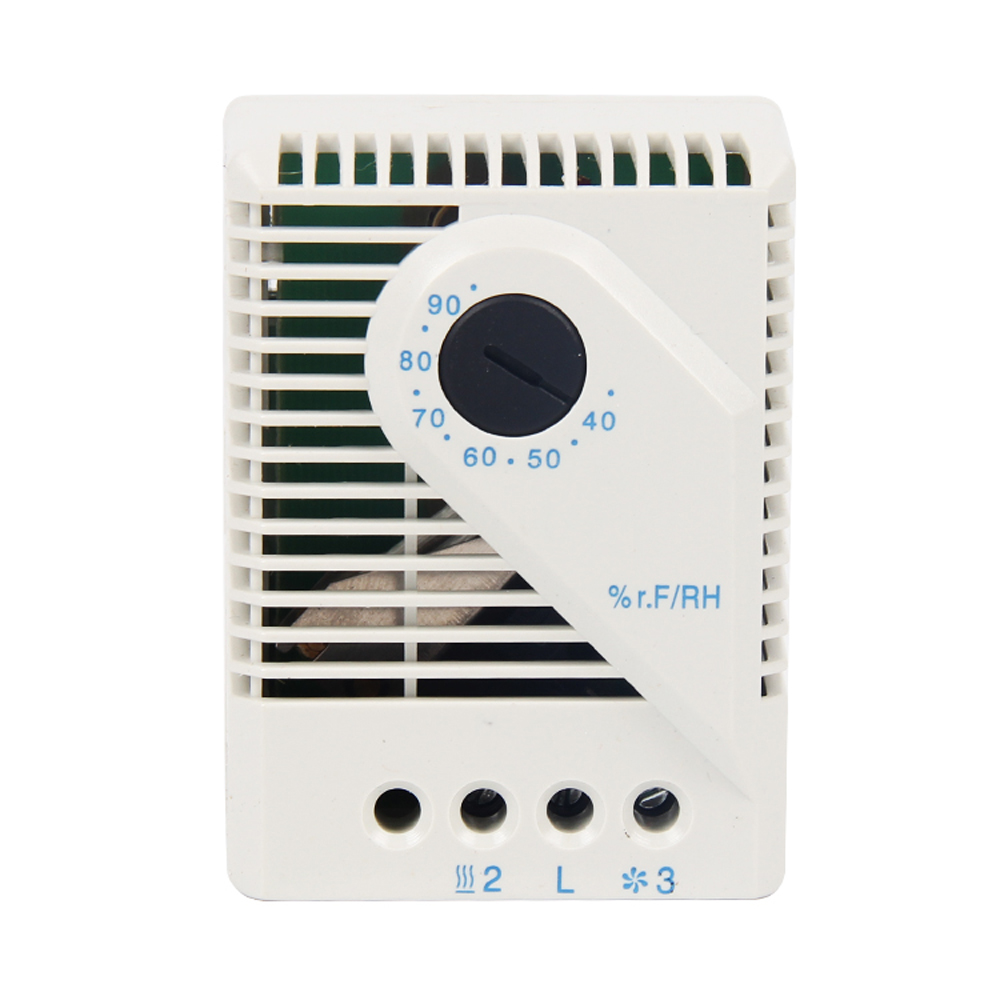

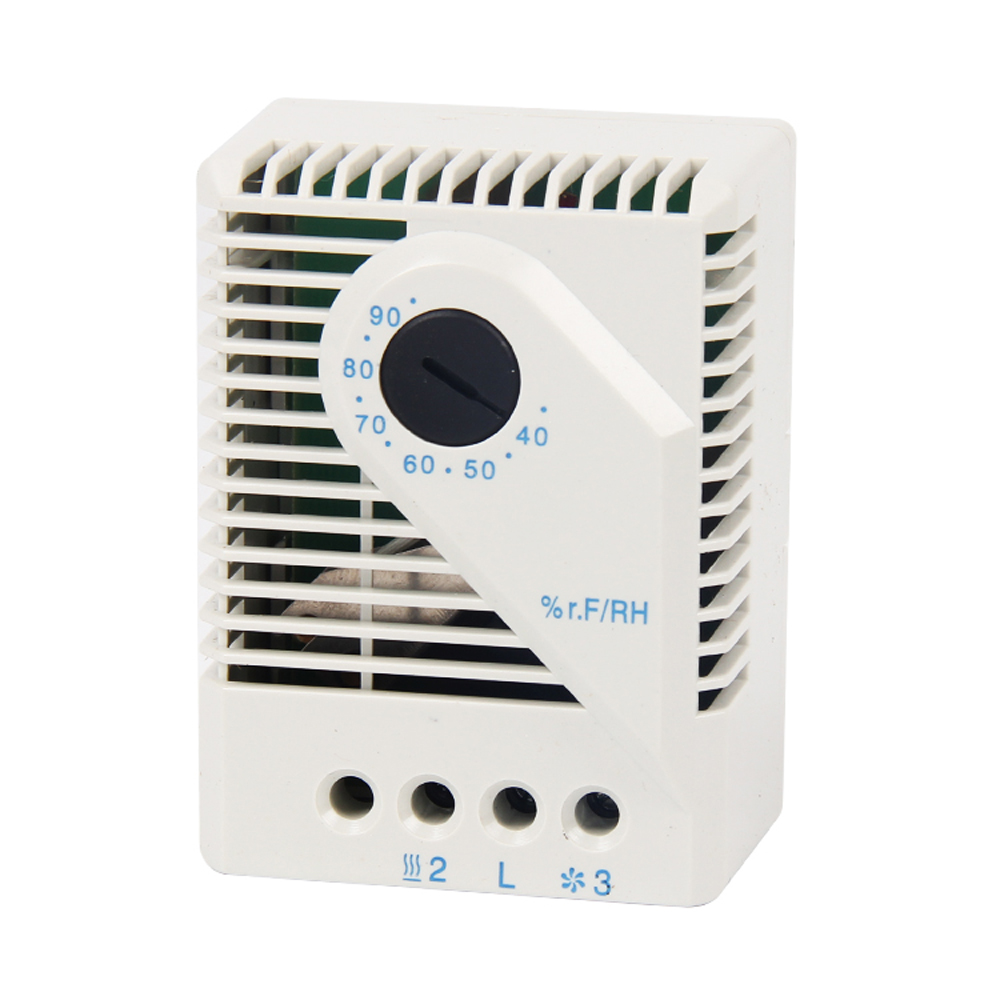

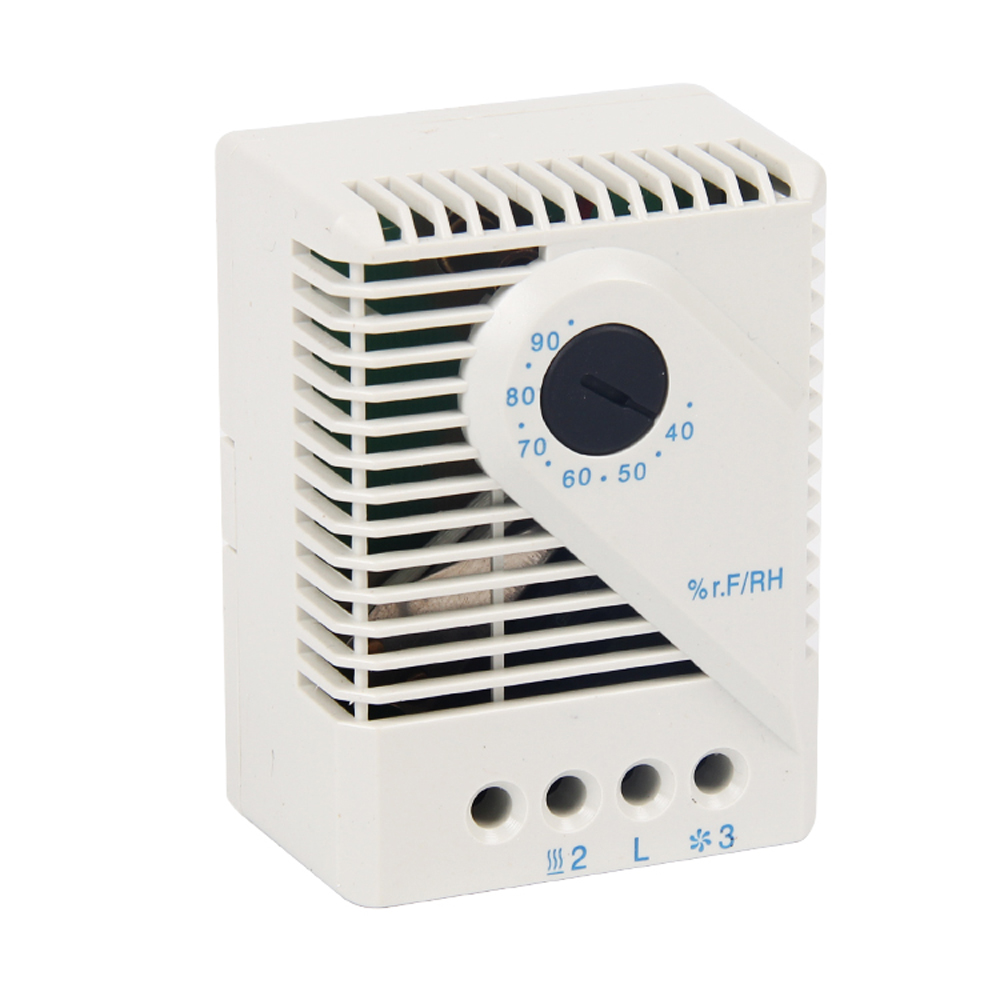

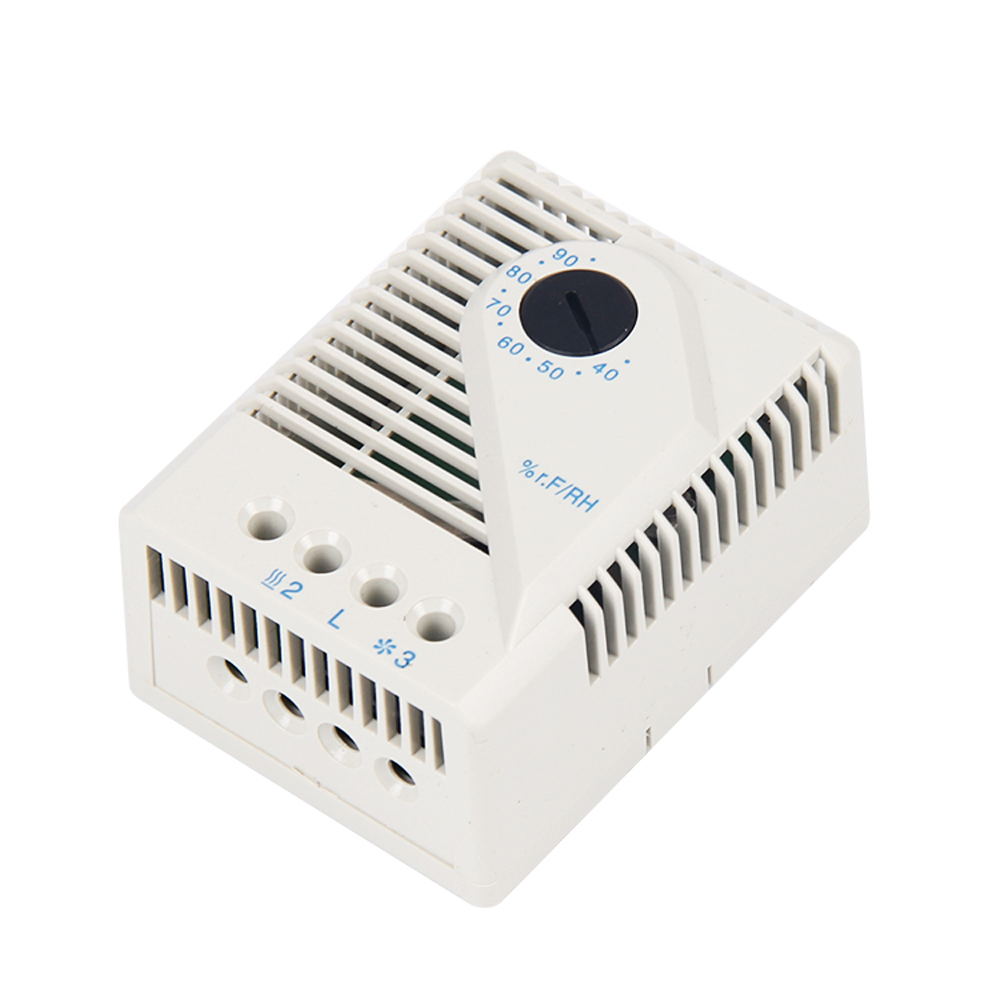

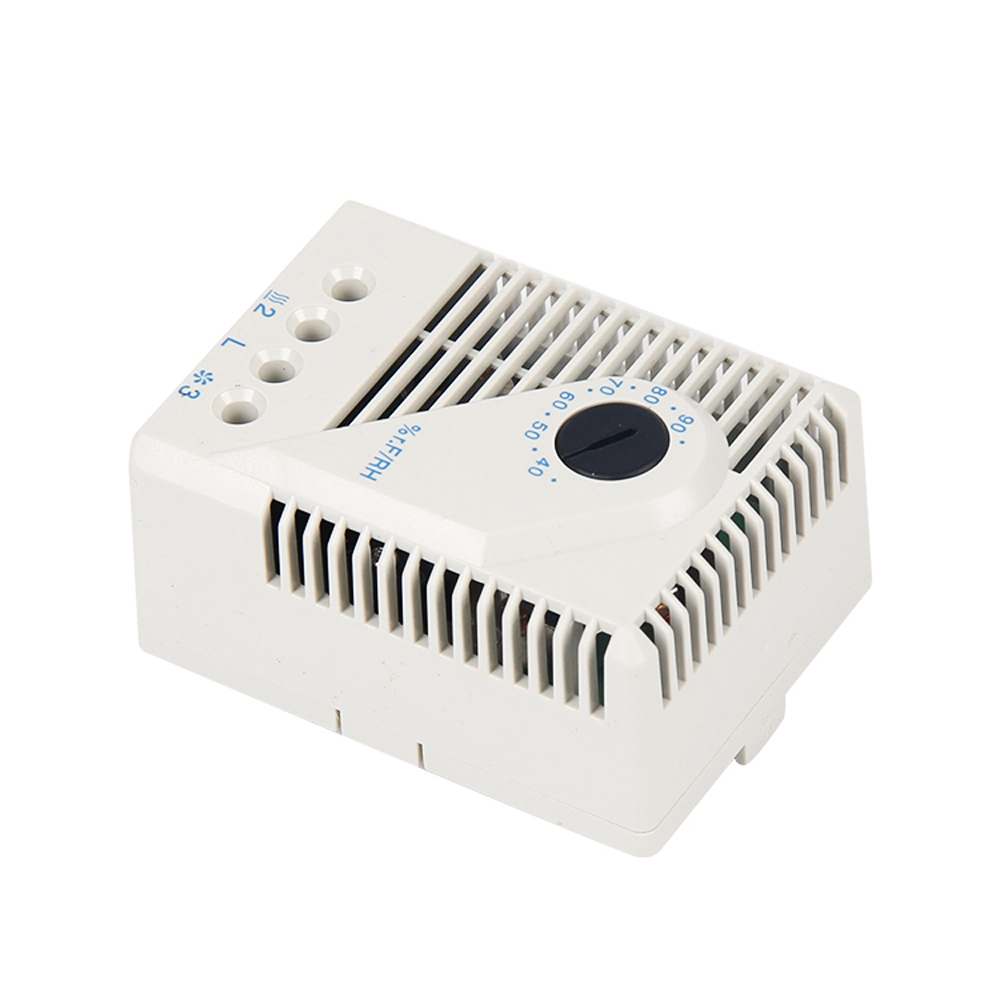

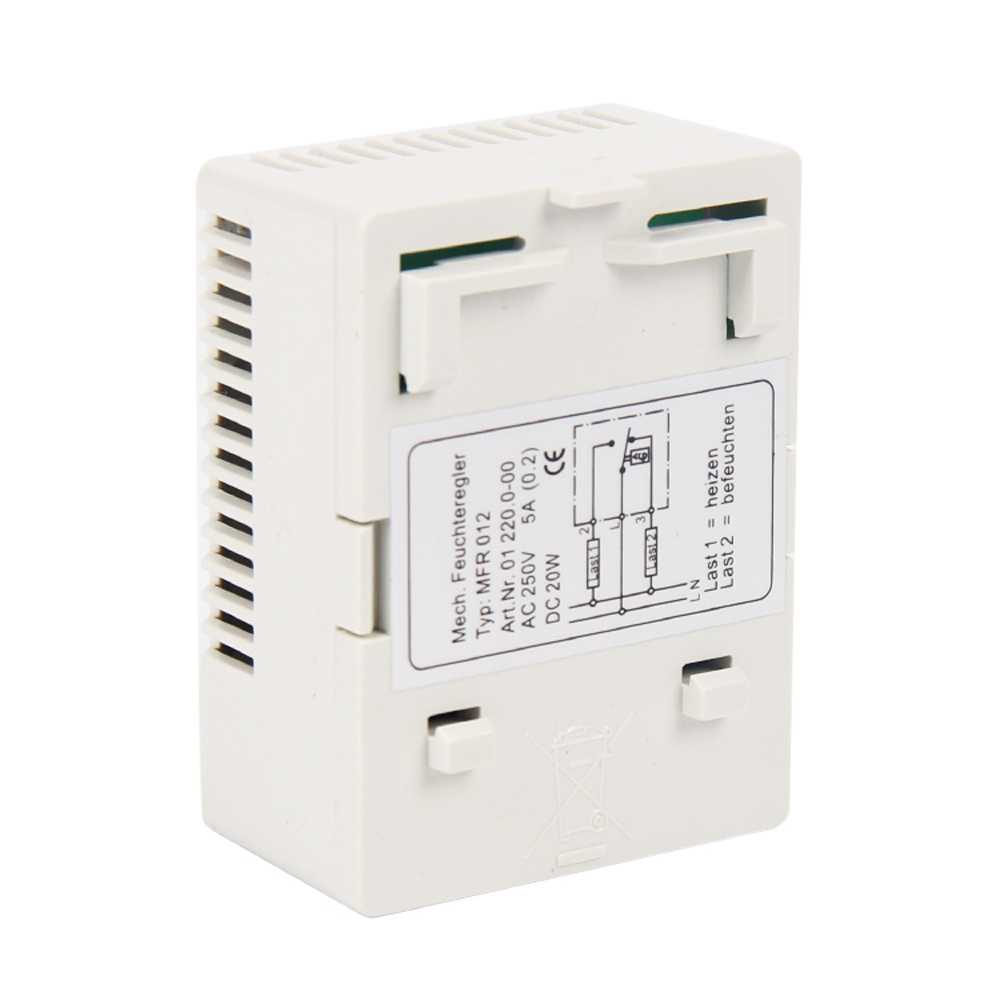

Mechanical Hygrostat MFR 012


Availability:

Quantity:



Inquire Add to Basket

MFR 012

The hygrostat is used to prevent condensate and regulates heating and fans. From a critical relat ive air humidity of 65 %, the temperature is increased so that the dew point is raised.

Model:
MFR 012
Brand:
YUZEY

hygrostat humidity controller humidity regulator cabinet humidity controller enclosure humidity controller cabinet hygrostat enclosure hygrostat hygrostat switch mechanical hygrostat industrial hygrostat

Product Description

MFR 012

The hygrostat is used to prevent condensate and regulates heating and fans. From a critical relat ive air humidity of 65 %, the temperature is increased so that the dew point is raised.

Adjustable relative air humidity
Changeover contact (heating or cooling)
High switching capacity
Clip mounting

OVERVIEW TECHNICAL DATA

Switch difference	4% RH (+3% tolerance)
Permissible air velocity	15m/sec
Contact type	change-over contact
Contact resistance	<10mΩ
Service life	>100,000 cycles
Min.Switching capacity	20V AC/DC,100mA
Max.Switching capacity	250VAC,5(1)A DC 20W
EMC	acc.to EN 55014-1-2,EN 61000-3-2,EN 1000-3-3
Connection	3-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail,EN60715 or for exit filter EF 118 Series
Casing	plastic according to UL94 V-0, light grey
Dimensions	67x50x38mm
Weight	Approx. 60g
Installation position	variable
Operating/Storage temperature	-20 to+80℃(-4 to +176°F)/-45 to+80℃(-49to +176℉)
Protection type	IP20
