24V DC Electronic Thermostat ET 011


Availability:

Quantity:



Inquire Add to Basket

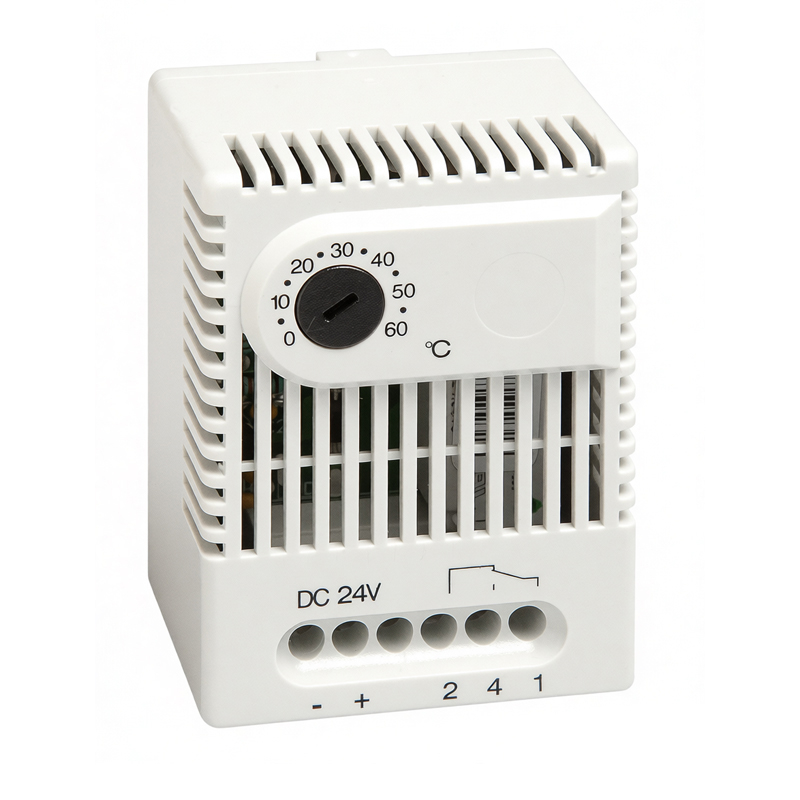

ET 011

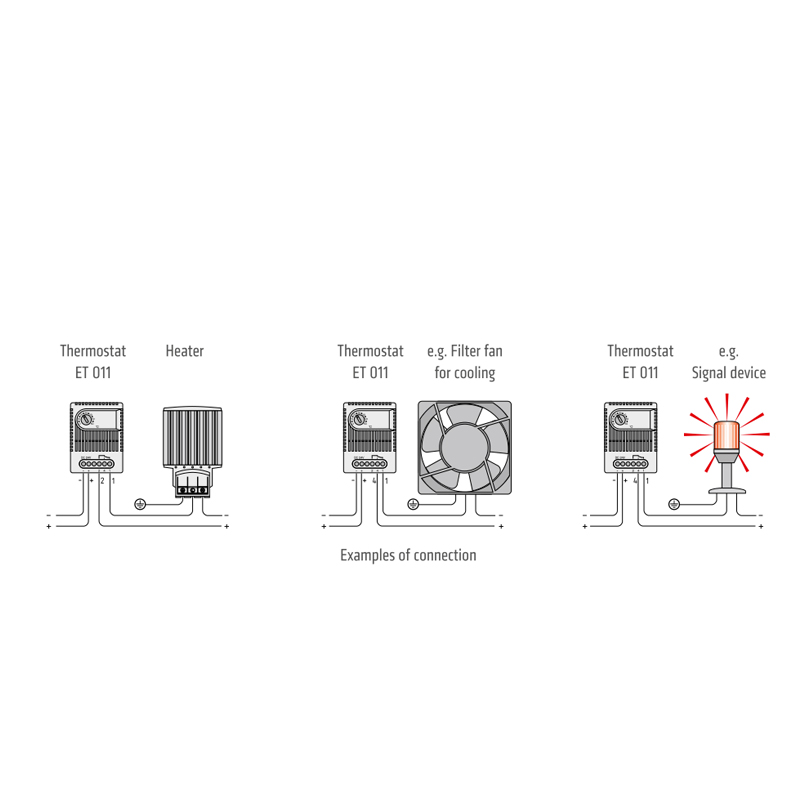

Electronic thermostat for controlling electrical DC 24 V devices with high power. Heaters, cooling devices or signal transmitters can be switched via the potential-free changeover contact. In contrast to mechanical thermostats, the ET 011 is characterized by a low hysteresis (= switching temperature differential). This results in more precise temperature control.

Model:
ET 011
Brand:
YUZEY

thermostat temperature controllers temperature regulator cabinet thermostat enclosure thermostat electronic thermostat enclosure temperature controller thermostat switch mechanical thermostats industrial thermostat

Product Description

ET 011

High DC switching capacity
Small hysteresis
Adjustable temperature
Clip mounting
Changeover contact

OVERVIEW TECHNICAL DATA

Switch temperature difference	approx.3K.
Sensor element	PTC

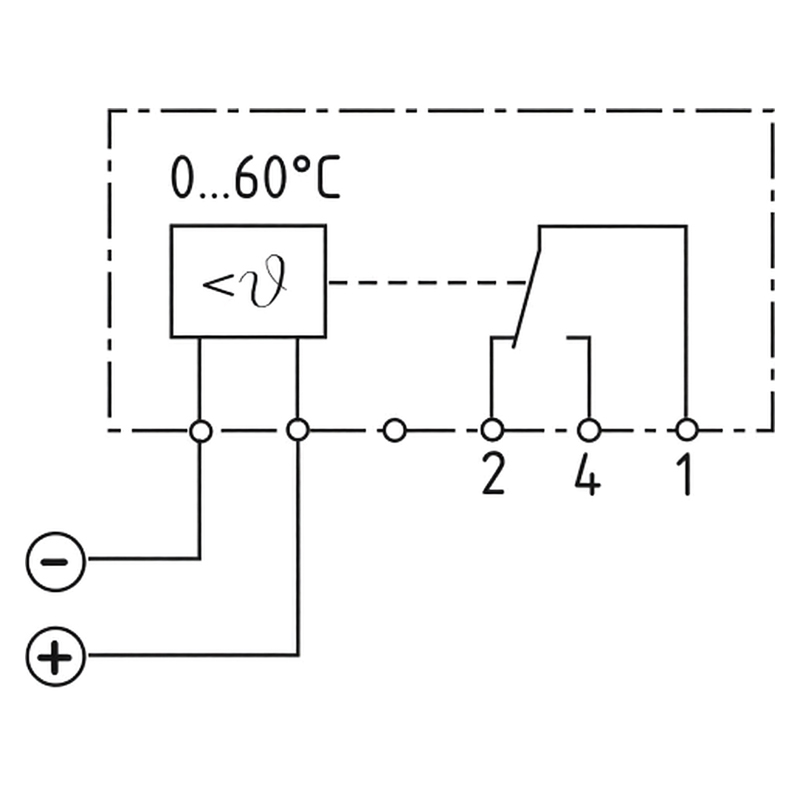

Contact type	change-over
Contact resistance	<10mΩ
Service life	>100,000 cycles
Max.Switching capacity	28VDC,16A
EMC	Acc.to EN 55014-1-2,EN61000-3-2,EN61000-3-3
Connection	5-pole terminal,clamping torque 0.5Nm max.rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail,EN6075 or for exit filter EF 118 Series
Casing	plastic according to UL94 V-0,light grey

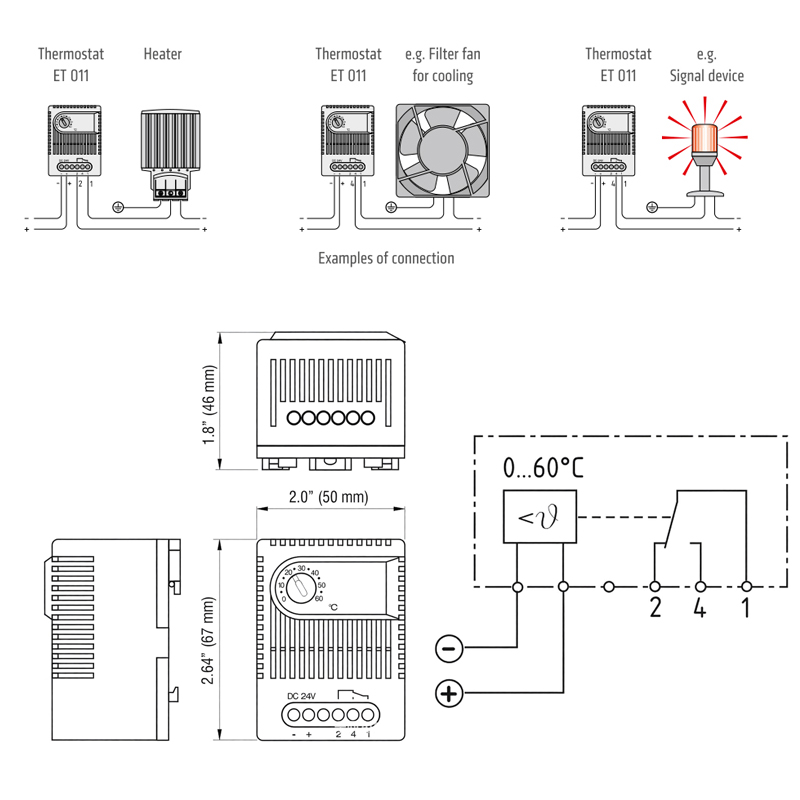

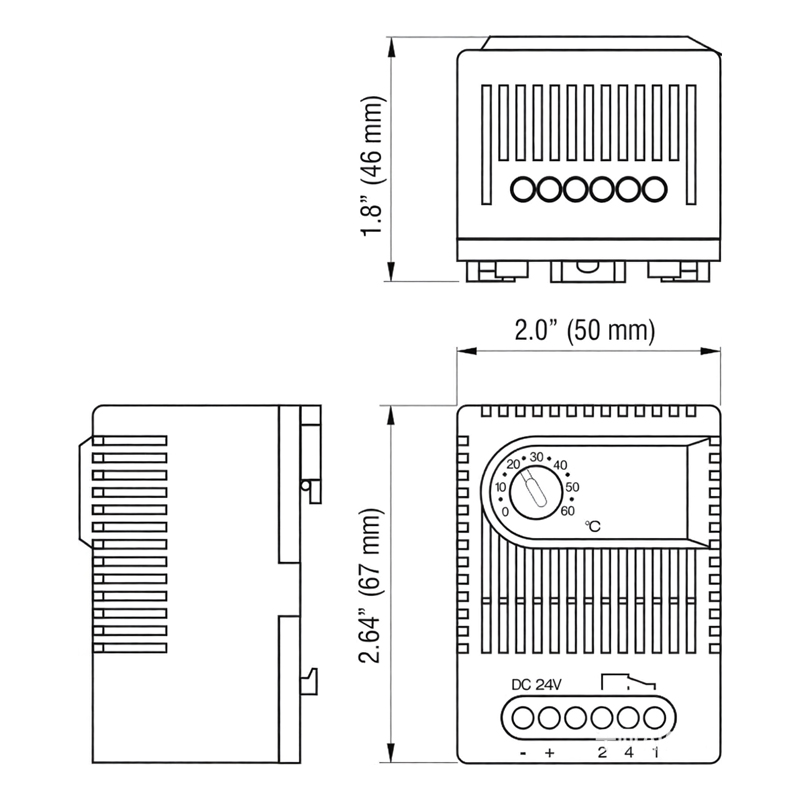

Dimensions	67x50x46mm
Weight	approx. 80g
Installation position	variable
Operating/Storage temperature	0 to+60℃(+32 to +140℉)/-45 to+80℃(-49 to +176℉)
Protection type	IP20
