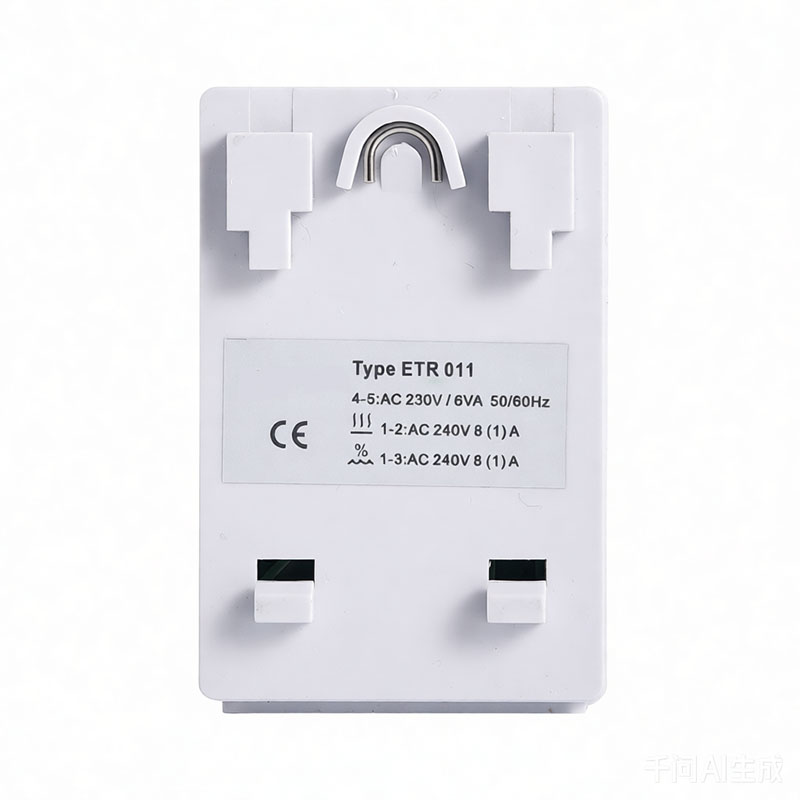

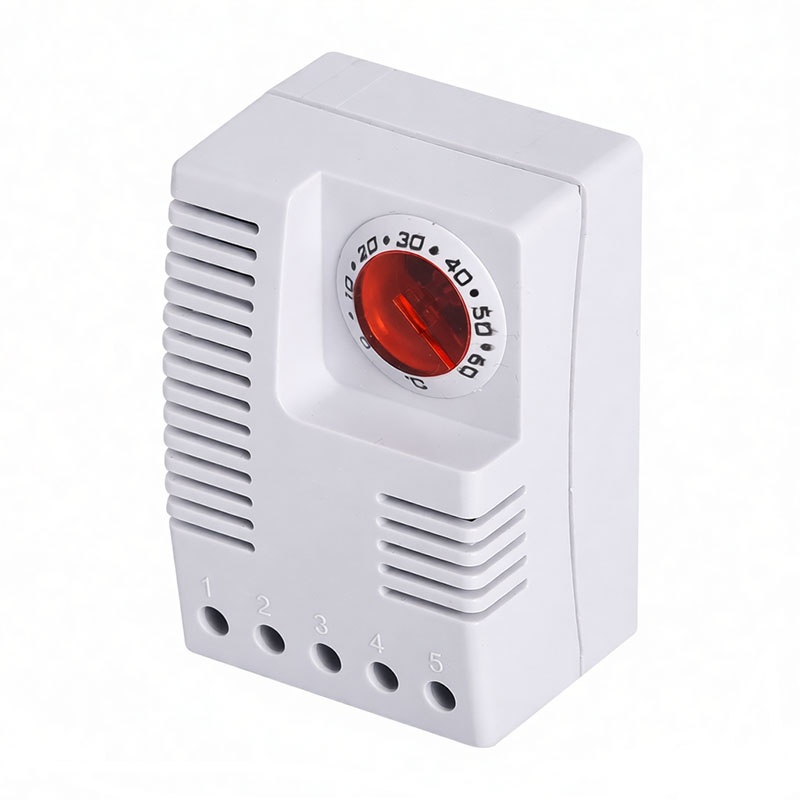

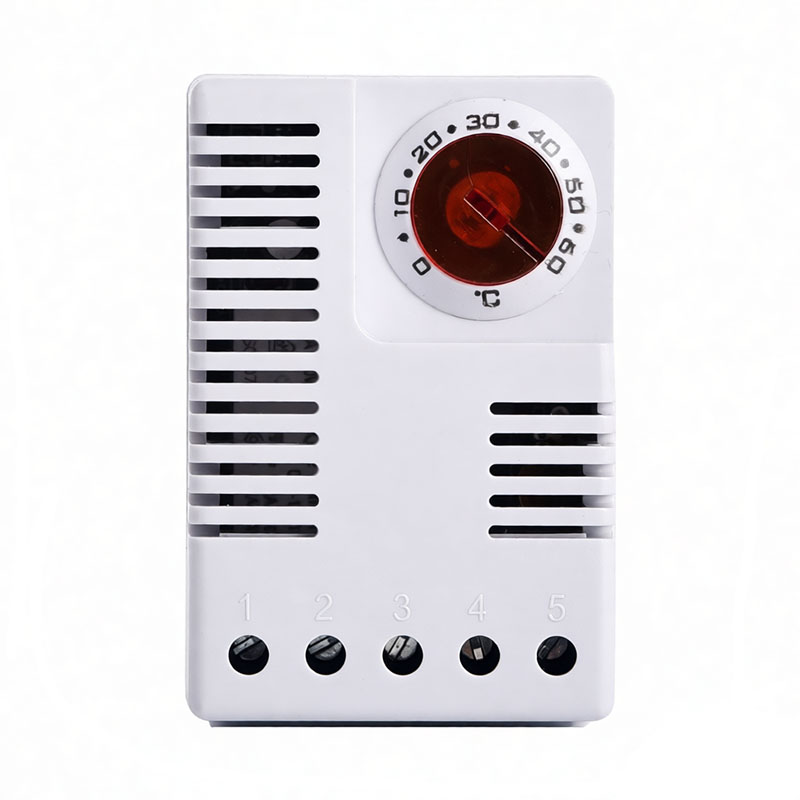

ETR 011
YUZEY
Electronic thermostat for controlling heating, cooling devices, filter fans or signal transmitters. Detects the ambient temperature and switches via the output relays with changeover contact. If, for example, a heating system is in operation, the integrated LED lights up.
Large setting range
Small hysteresis enables precise control
Visual status display (LED)
Clip mounting
Changeover contact (heating or cooling)
| Switch temperature difference | 2K(±1K tolerance)at 25℃/77℉(50% RH) |
| Reaction time(humidity) | approx.5 sec. |
| Contact type | change-over contact(relay) |
| Contact resistance | <10mΩ |
| Service life | NC:>50,000 cycles NO:>100,000 cycles |
| Max.Switching capacity(Relay output) | NC:240VAC,6(1)A NO:240VAC,8(1.6)A NC:120VAC,6(1)A NO:120VAC,8(1.6)A 24VDC,4A |
| EMC | acc.to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3 |
| Optical indicator | LED |

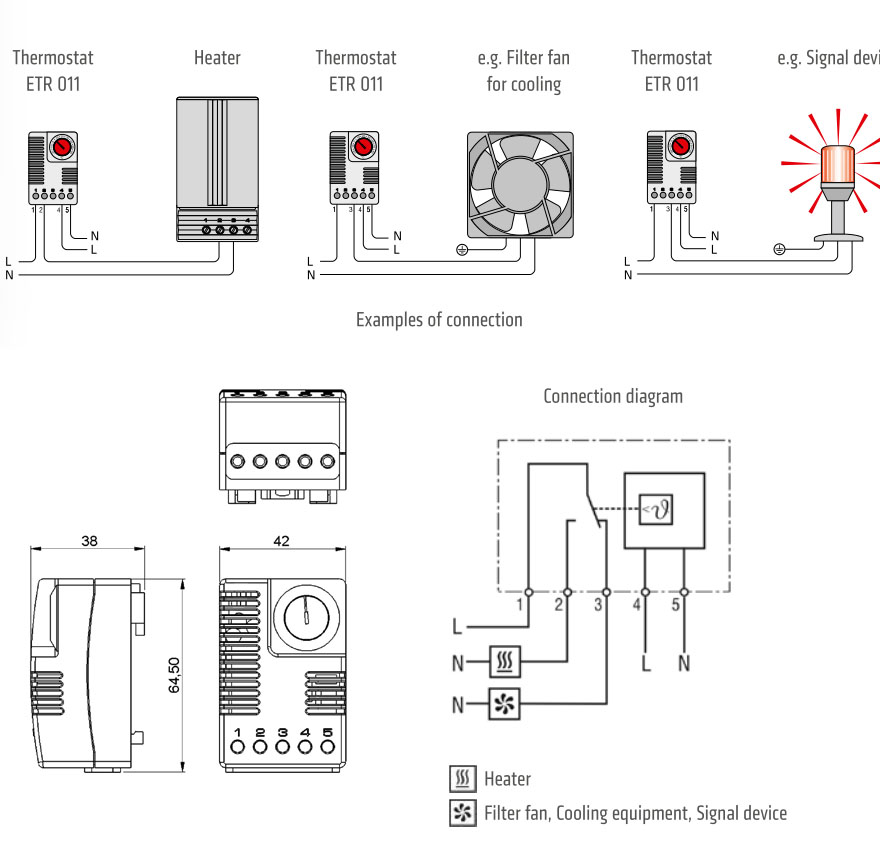

| Connection | 5-pole terminal,clamping torque 0.5Nm max.rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |

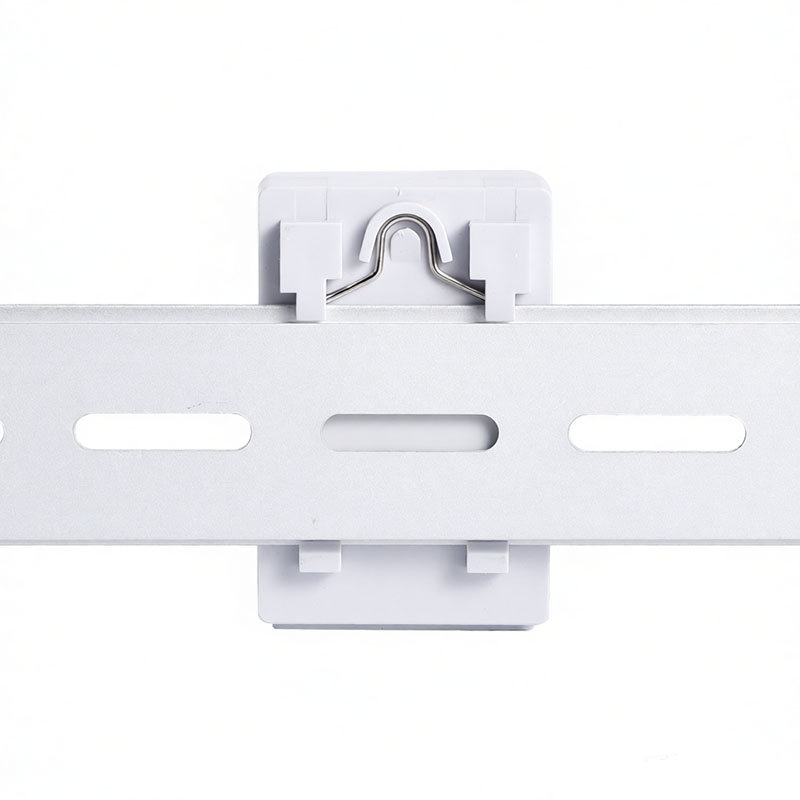

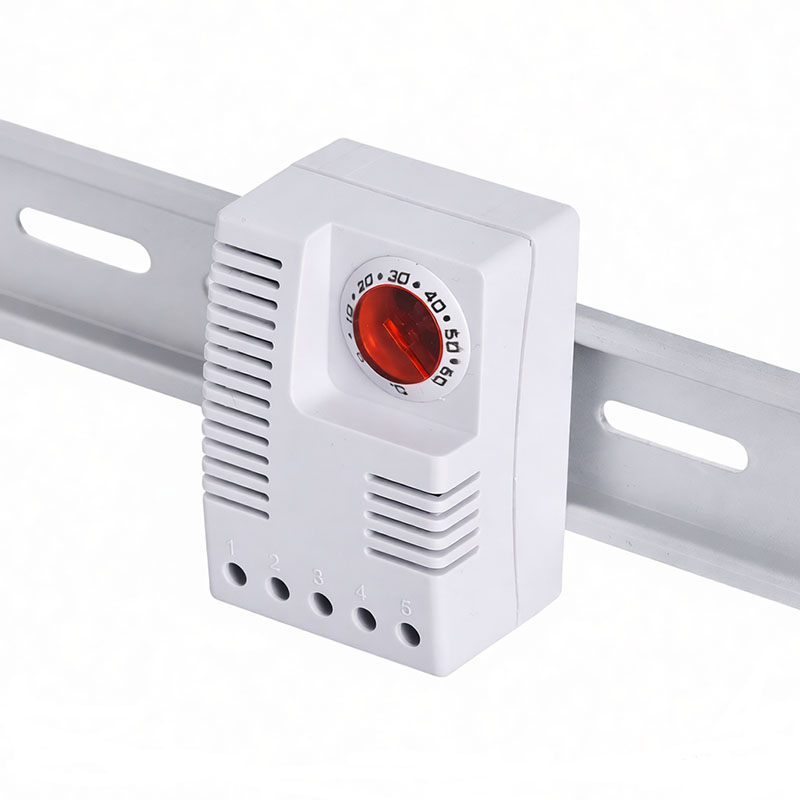

| Mounting | clip for 35mm DIN rail,EN6075 or for exit filter EF 118 Series |
| Casing | plastic according to UL94 V-0,light grey |
| Dimensions | 64.5x42x38mm |
| Weight | approx. 70g |
| Fitting position | variable |
| Operating/Storage temperature | 0 to+60℃(+32 to +140℉)/-20 to+80℃(-4 to +176℉) |
| Protection type | IP20 |
*Connecting terminal “N” (RF heating resistor) causes the thermal feedback to work and so reduces the switch temperature difference to approx.0.5K.
PRODUCTS VARIANTS
| Art.No. | Operating voltage | Setting range temperature | Setting range humidity |
| 01131.0-00 | 230VAC,50/60Hz | -20 to +60℃ | CSA-US(VDE submitted) |
| 01131.9-00 | 120VAC,50/60Hz | -4 to +140℉ | 140℉ CSA-US |
