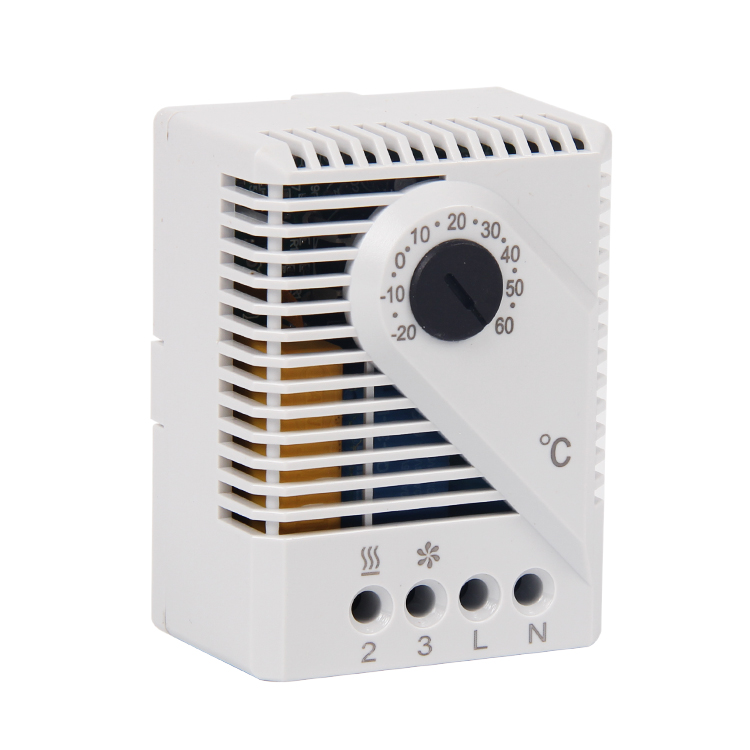

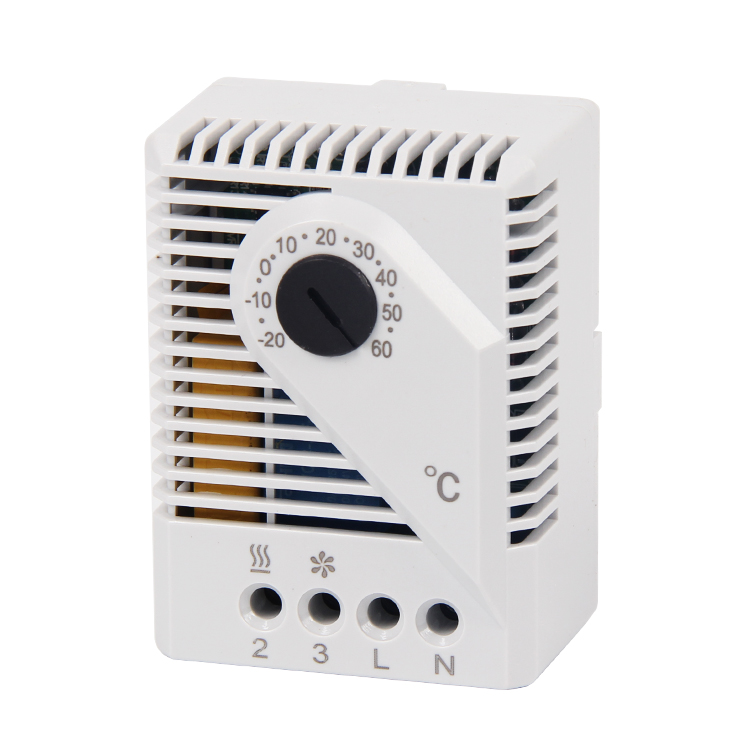

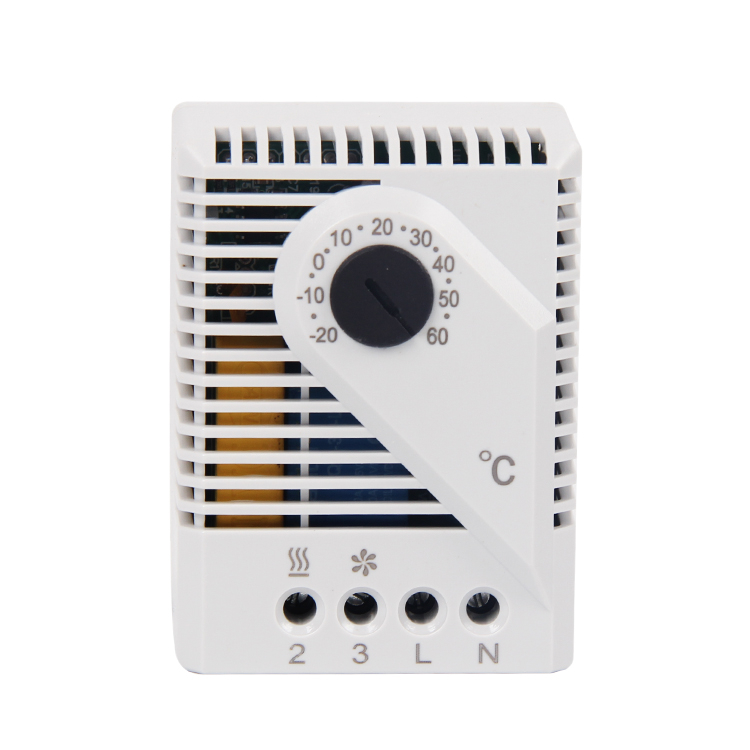

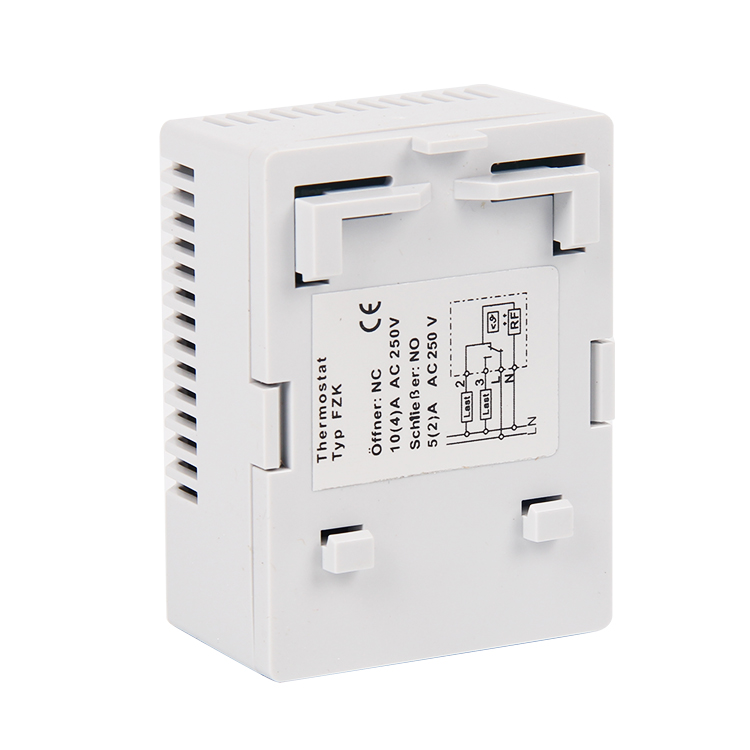

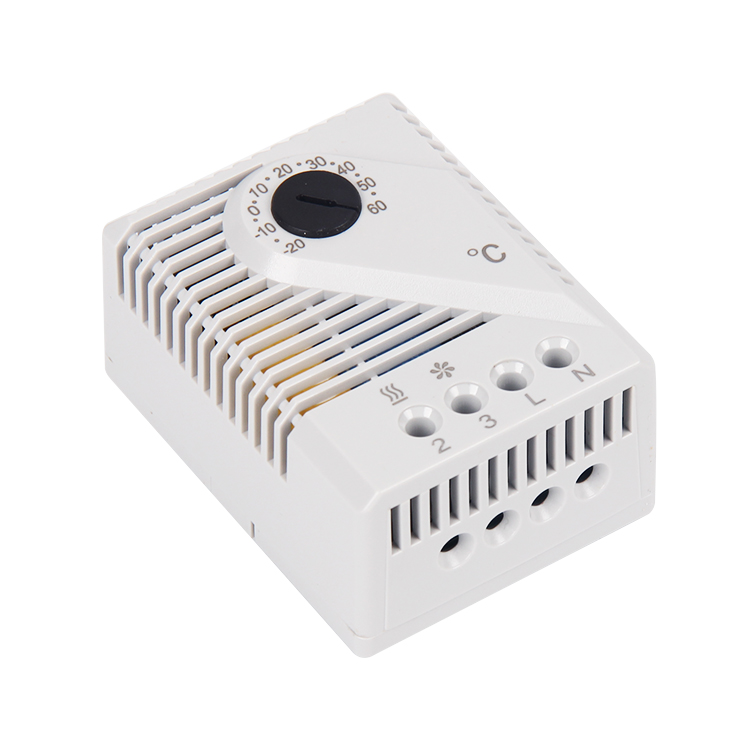

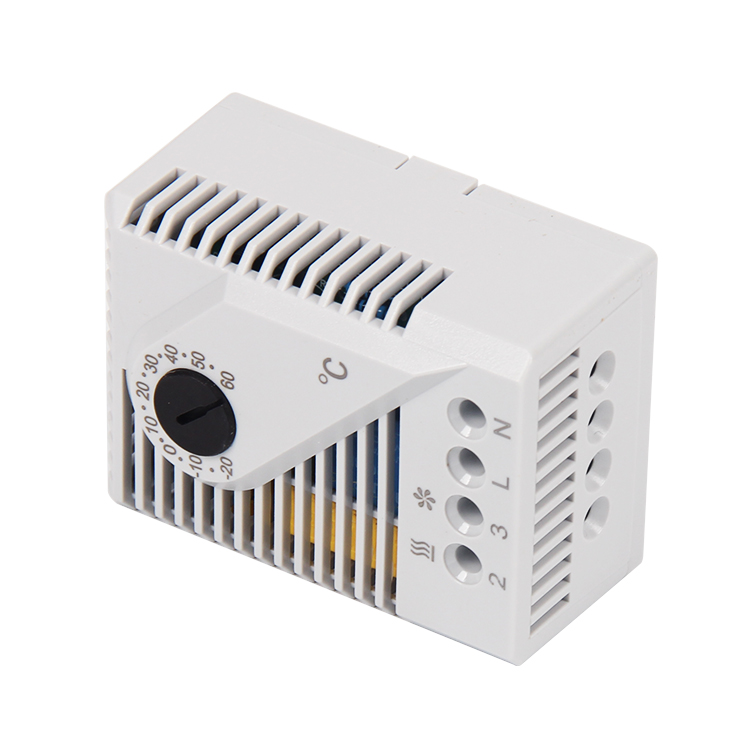

The electronic thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact.
Adjustable temperature
Small hysteresis enables precise control
High switching capacity
Clip mounting
Changeover contact (heating or cooling)
| Switch temperature difference | 4K(±1.5K tolerance) |
| Sensor element | Thermostatic bimetal |
| Contact type | snap-action contact |
| Contact resistance | <10mΩ |
| Service life | >100,000 cycles |
| Max.Switching capacity | 250VAC, 10(4)A 120VAC, 10(4)A DC 30W |
| Max.Switching capacity,NC | 250VAC,5(2)A 120VAC,5(2)A DC 30W |
| EMC | Acc.to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3 |
| Connection | 4-pole terminal,clamping torque 0.5Nm max.rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail,EN60715 or for exit filter EF 118 Series |
| Casing | plastic according to UL94 V-0,light grey |
| Dimensions | 67x50x38mm |
| Weight | Approx. 0.10g |
| Fitting position | variable |
| Operating/Storage temperature | -20 to+80℃(-4 to +176°F)/-45 to+80℃(-49to +176℉) |
| Protection type | IP20 |

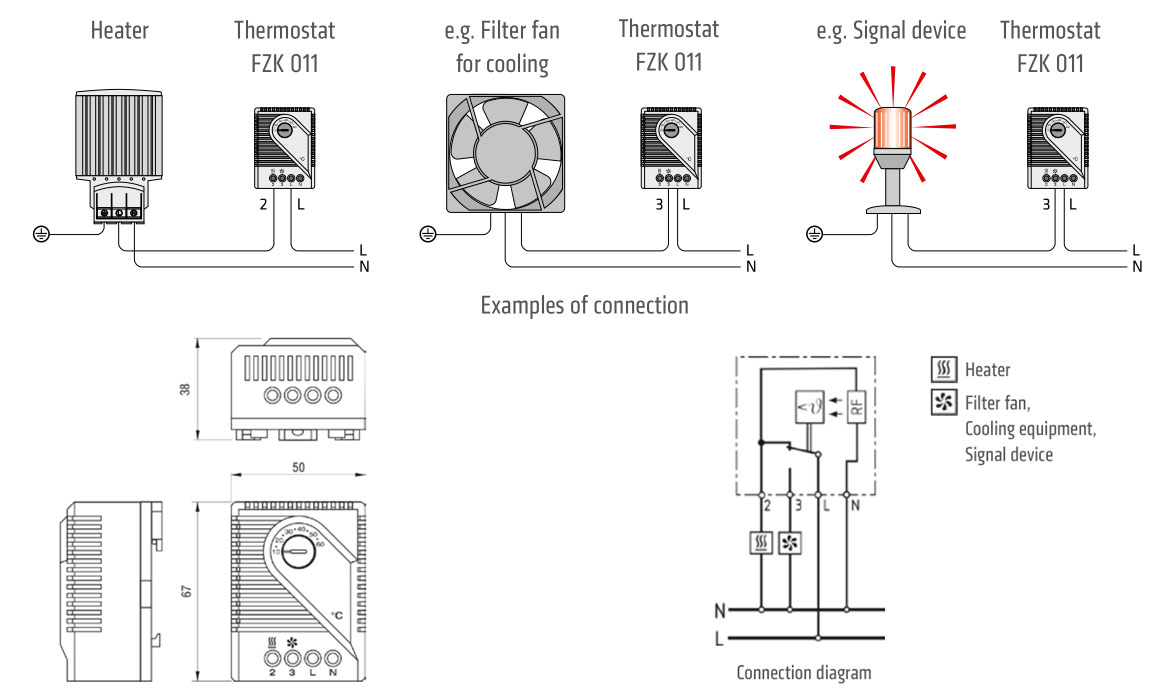

*Connecting terminal “N”(RF heating resistor) causes the thermal feedback to work and so reduces the switch temperature difference to approx.0.5K.
| Art.No. | Operating voltage | Setting range |
| 01170.0-00 | 230VAC | +5 to +60℃ |
| 01170.0-01 | 230VAC | +40 to +140℉ |
| 01170.0-02 | 230VAC | -20 to +30℃ |
| 01170.9-00 | 120VAC | +40 to +140℉ |
| 01170.9-01 | 120VAC | +5 to +60℉ |
