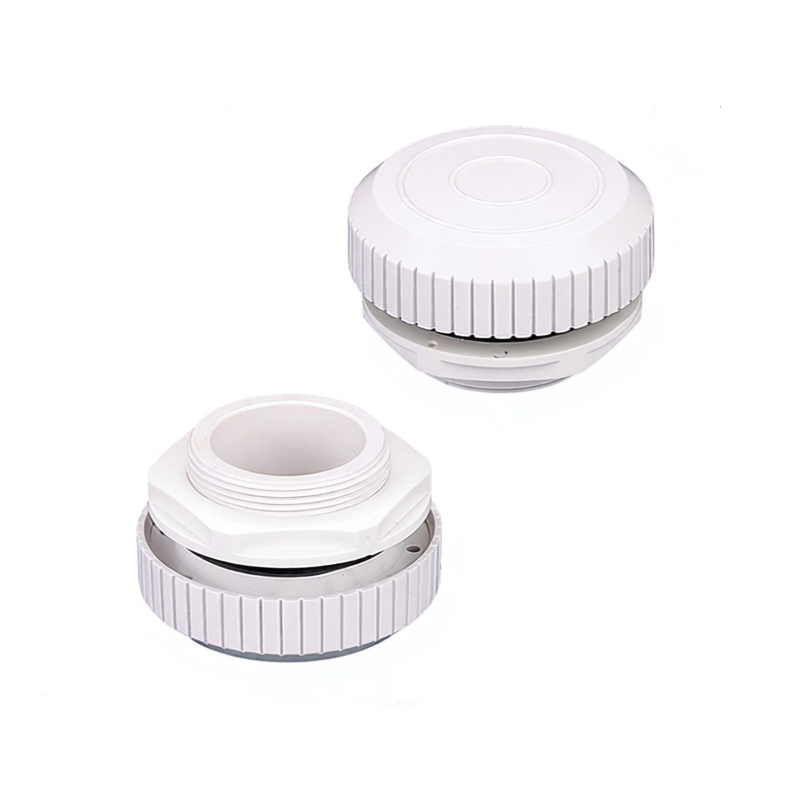

DA 284
YUZEY
Pressure differentials in encIosures with a high degree of Protection are a result of internal and external temperature changes. In the case of negative pressure or partical vacuum. Dust and humiditv can enter the enclosure throuqh the door seaI．When the air inside the enclosure cools down, condensation may occur because the humiditv cannot escape the enclosure. The easy-to-instalI pressure compensation device DA 284 Provides compensation of Pressure at a Protection degree of IP66. Even with a sIight overpressure. a waterproof membrane inside the Plug aIIows the humidity to escape whilst bIocking water and dirt from entering the enclosure
● High degree of protection
● Waterproof membrane
● Easy to install
| Mounting | thread M40 x 1.5with nut |
| Torque | 5Nm(max.10Nm) |
| Depthin enclosure | approx.16mm |
| Material | plastic，light grey |
| Sealing | sealing gasket NBR |
| Filter | waterproof membrane |
| Air permeability | 1200l/h at a pressure difference of min.70mbar |

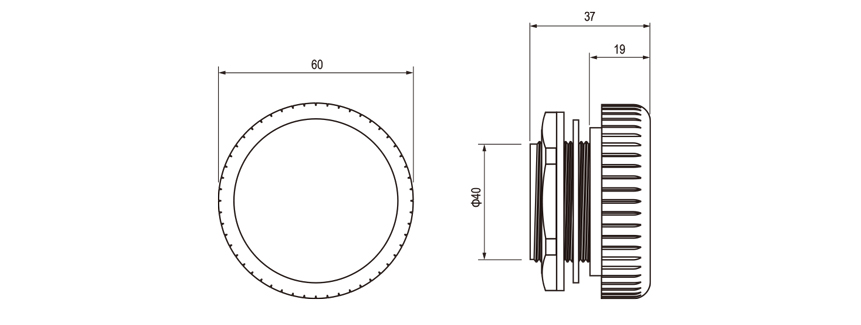

| Dimensions | Φ60x37mm |
| Fitting position | variable |
| Operating/Storage temperature | -35 to+70°C(-31 to+158°F) |
PRODUCT VARIANTS
| Art. No. | Protection type | Packing unit. | Weight (approx.) |
| 28400.0-00 | IP66(EN 60529)/IPX9K(EN 40050-9) | 2 pieces | 90g(45g/piece) |
| 28400.0-01 | IP66(EN 60529)/IPX9K(EN 40050-9) | 1 pieces | 45g |
INSTALLATION
Make cut-out Ø 40.5+0.5mm in enclosure wall for size M40 or Ø 12+0.2mm for size M12, and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
