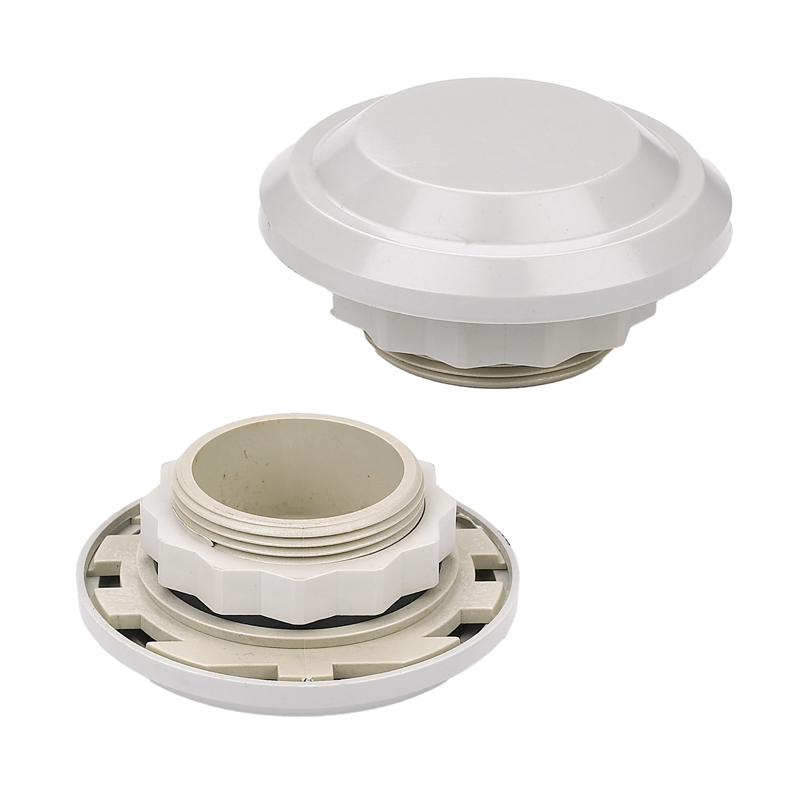

Pressure compensation device DA 084


Availability:

Quantity:



Inquire Add to Basket

DA 084

It has become more and more important to provide a protected enclosure environment for valuable and crucial electrical and electronic components.

Model:
DA 084
Brand:
YUZEY

Pressure Compensation Device Breather Vent Plug enclosure Pressure compensation device cabinet Pressure compensation device enclosure Breather Vent Plug cabinet Breather Vent Plug industrial Breather Vent Plug industrial Pressure compensation device DA 084 Ventilation Pressure Reducing Valve

Product Description

DA 084

It has become more and more important to provide a protected enclosure environment for valuable and crucial electrical and electronic components.

● In a tightly closed enclosure, pressure differentials can occur during extreme temperature variations, such as day/night operation.

● When this occurs, the risk of dust and humidity being absorbed into the control panel increases dramatically.

● The specially designed pressure compensation plug DA 084 permits a controlled change in pressure.

● It can be installed easily in any enclosure. Because of the pressure compensation plug’s high degree of protection (IP45), the protection type of the enclosure will not be affected.

OVERVIEW TECHNICAL DATA

Mounting	PG 29 thread with union nut
Material	plastic according to UL94 V-0
Air interface	approx. 7cm²

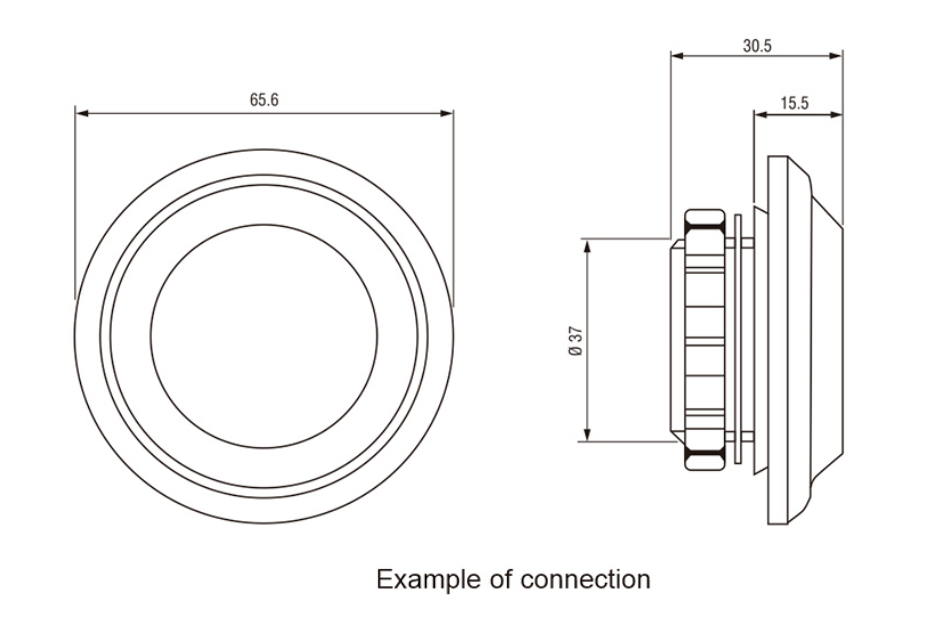

Dimensions	Φ65.5×30.5mm
Installation position	variable
Operating/Storage temperature	-45 to+70°C(-49 to+158°F)

PRODUCTS VARIANTS

Art. No.	Model	Protection type	Packing unit.	Weight (approx.)
28400.0-00	without gasket	IP45	1 piece	62g(31g/piece)
28400.0-04	with gasket	IP55	1 piece	62g(31g/piece)
