Electrical socket for installation on 35 mm DIN rail. Quick, screwless electrical connection using pressure clamps. Designs with and without fuse are available.
● Versions with and without fuse
● Quick mounting
● Electrical connection with pressure clamps
● Large variety of country-specific versions
| Connection | 3x pressure clamps for stranded and rigid wire 0.5-2.5mm² |
| Mounting | clip for 35 mm DIN rail, EN 60715 |
| Casing | plastic according to UL94 V-0, light grey |

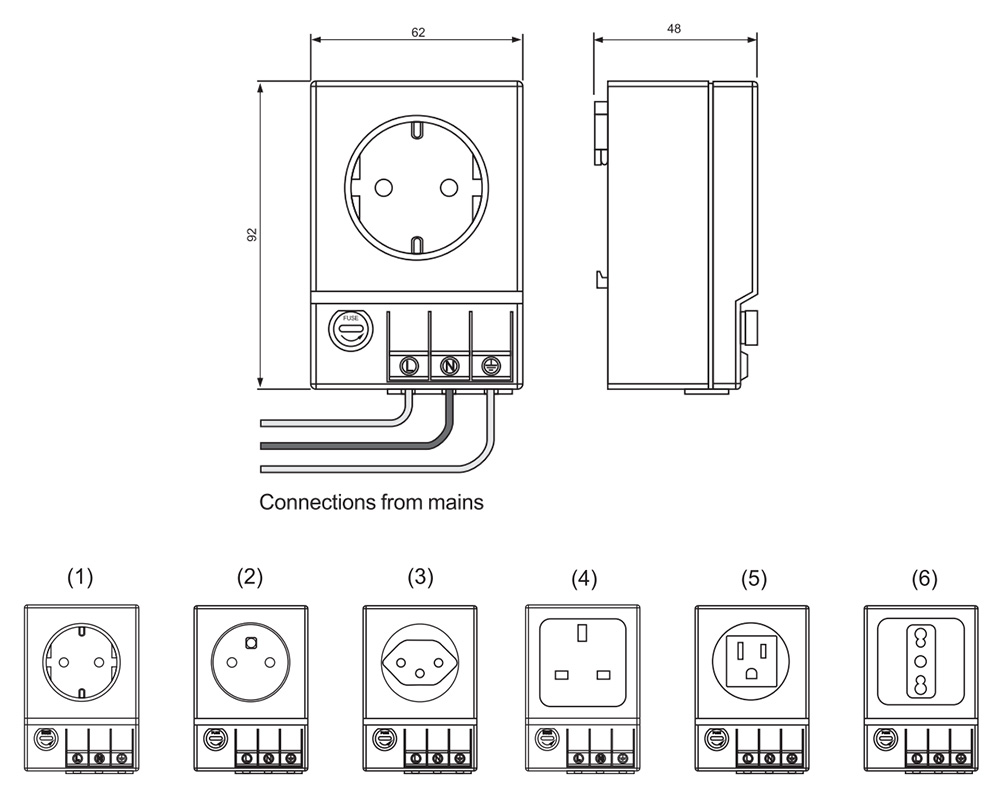

| Dimensions | 92x62x48mm |
| Weight | approx. 0.2kg |
| Fitting position | variable |
| Operating/Storage temperature | -45 to+70°C(-49 to +158°F) |
| Operating/Storage humidity | Max 90% RH (non-condensing) |
| Protection type/Protection clas | IP20/(earhed) |
PRODUCTS VARIANTS
| Art. No. | Operating voltage | Socket | Model | Nominal Current |
| 03500.0-00 | 250VAC | Germany/Russia(1) | with fuse* | 6.3A |
| 03500.0-01 | 250VAC | Germany/Russia(1) | without fuse | 16.0A |

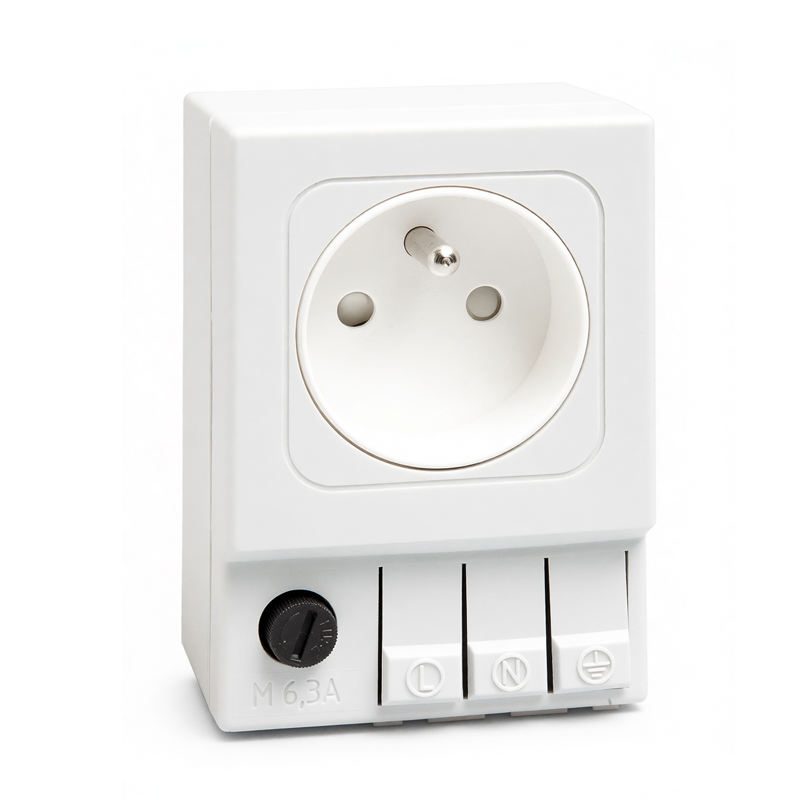

| 03501.0-00 | 250VAC | F/PL/CZ/SK(2) | with fuse* | 6.3A |
| 03501.0-01 | 250VAC | F/PL/CZ/SK(2) | without fuse | 16.0A |

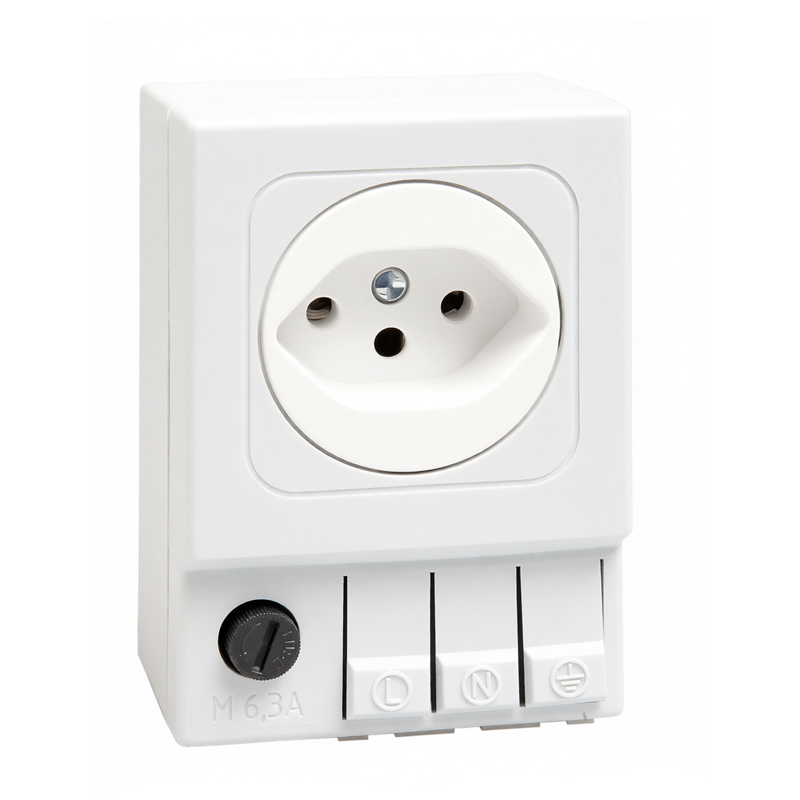

| 03502.0-00 | 250VAC | Switzerland(3) | with fuse* | 6.3A |
| 03502.0-01 | 250VAC | Switzerland(3) | without fuse | 10.0A |

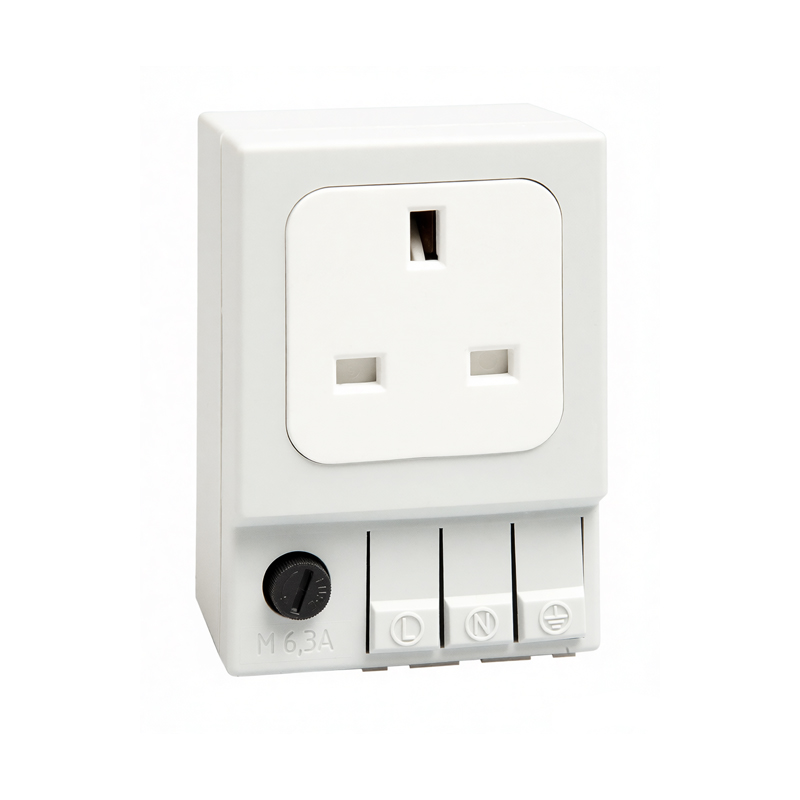

| 03503.0-00 | 250VAC | UK/lreland(4) | with fuse* | 6.3A |
| 03503.0-01 | 250VAC | UK/lreland(4) | without fuse | 13A |

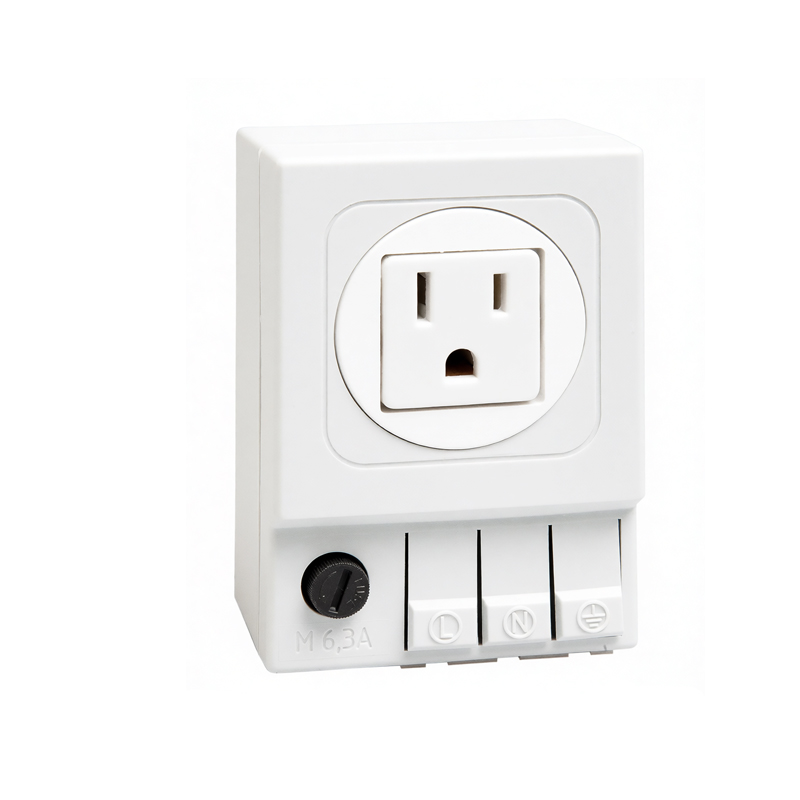

| 03504.0-00 | 125VAC | USA/Canada(5) | with fuse* | 6.3A |
| 03504.0-01 | 125VAC | USA/Canada(5) | without fuse | 15.0A |

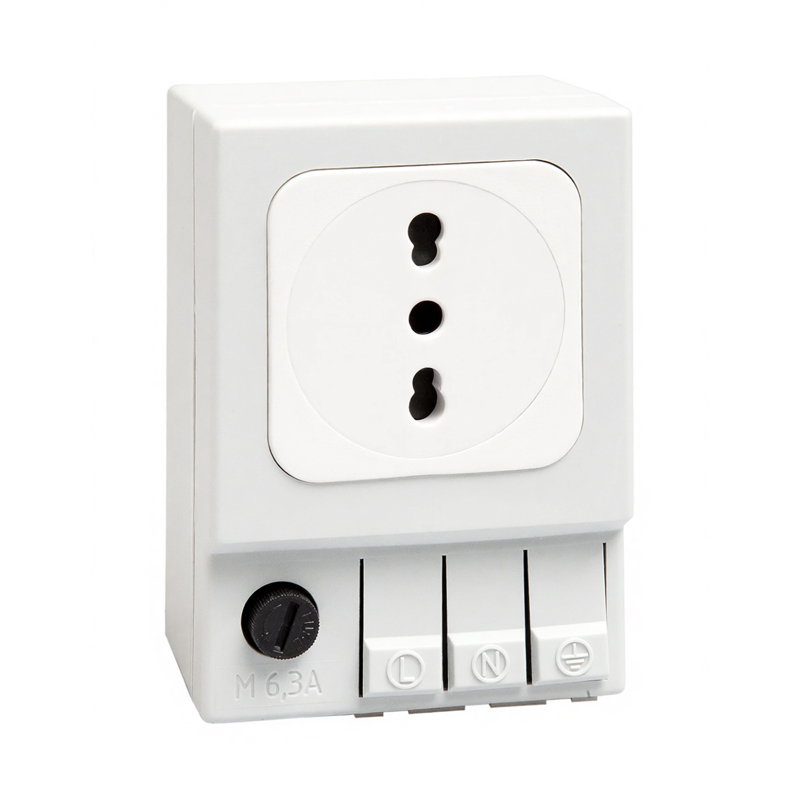

| 03505.0-00 | 250VAC | taly(6) | with fuse* | 6.3A |
| 03505.0-01 | 250VAC | taly(6) | without fuse | 16.0A |
