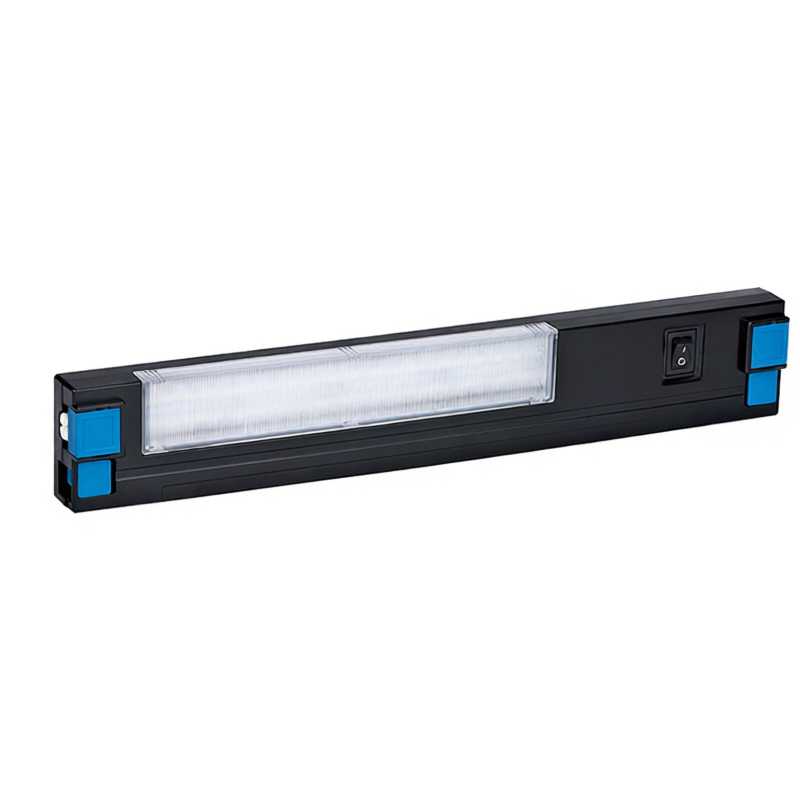

LED Enclosure Lamp
YUZEY
The lamp series LED 035 is suitable for all types of panels and enclosures, especially where space is at a premium. The lamps have a very long service life thanks to the use of LED technology. Three different fixing options provide more flexibility for installation. The power output allows up to 5 lamps to be connected to each other. Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs the lamp can quickly be connected.
Wide voltage range: 48V-265VAC/DC
With super magnetic to protect from falling down from top of cabinet or side of cabinet
Durable and maintenance-free thanks to LED technology
With two fixing type: magnet fixing type and screw fixing type
On/off switch or motion detector
With daisy chain connector
LED 035 | |
Power consumption | max. 5W |
Luminosity | 400Lm at 120° (1,200Lm at 360° or equivalent 95W light bulb) |
Lamp type | LED, angle of radiation 120° light color: daylight, color temperature: 6,000K to 7,000K |
Service life | 60,000h at +20°C (+68°F) |
Connection | 2-pole connector with snap lock AC: max. 2.5A / 240VAC, color: white DC: max. 2.5A / 60VDC, color: blue |
Mounting | magnet fixing or screw fixing (M5), clip fixing (M6), torque 2Nm max. |
Casing | plastic, transparent |

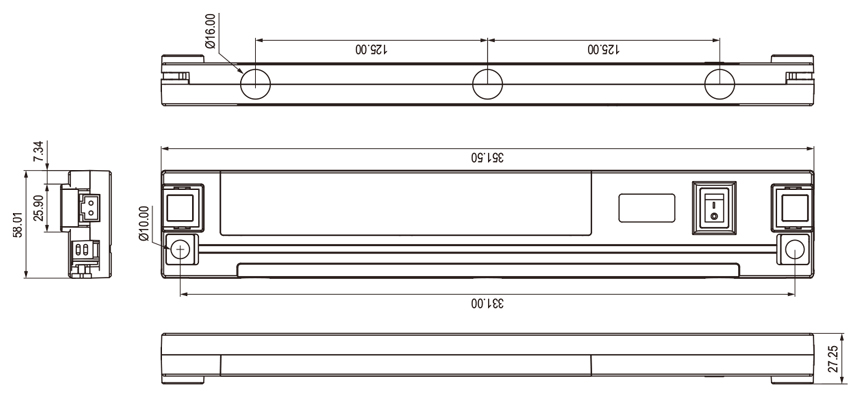

Dimensions | see drawings |
Weight | 0.2kg |
Operating/Storage temperature | -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F) |
Operating/Storage humidty | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Mounting options, with two types:
1. Magnet Fixing: The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure.
2. Screw Fixing: A classic is the LED 035 with screw fixing. The clip holders exclusively designed for clip fixing of the LED 035 positioned anywhere in the cabinet by simply screwing the holders to the cabinet wall. The lamp is snapped into the clip holders and can be turned in both directions. With a total rotation angle of 180° it provides perfect illumination within the cabinet or enclosure.
Note: The lamp must not be used for household lighting.
PRODUCT VARIANTS
Art. No. | Fixing type | Switch | Operating voltage |
035M | Magnet fixing | on/off light switch | 48-265VAC/DC(min. 48V, max. 265V) |
035S | Screw fixing | on/off light switch | 48-265VAC/DC(min. 48V, max. 265V) |
035SM | Magnet fixing+Screw fixing | on/off light switch | 48-265VAC/DC(min. 48V, max. 265V) |
