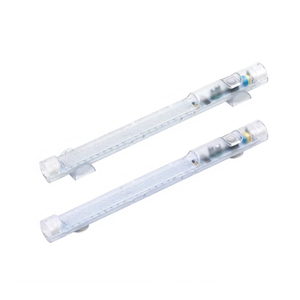

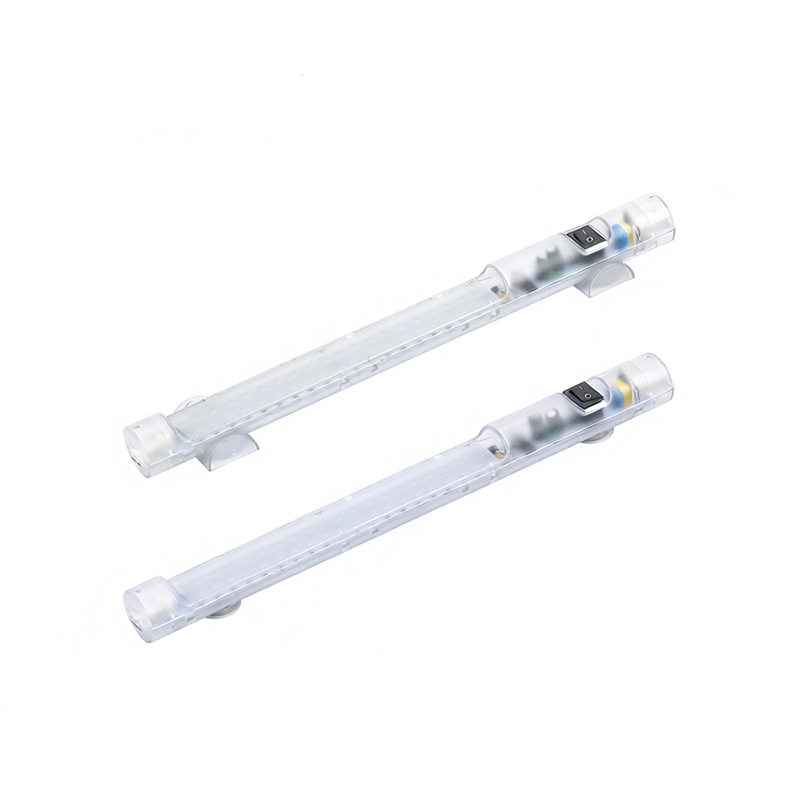

LED Enclosure Lamp
YUZEY
LED lights with Multi Wide Voltage are ideal for flexible use in enclosures and casings of different sizes. Multi Wide Voltage supports both AC and DC voltages, ensuring maximum flexibility in the application. Fewer versions mean optimized processes in procurement and materials management. The mounting kit supplied also enables simple and versatile installation.
Multi-wide-range voltage (AC, DC)
Internal power unit for easy connection
Durable and maintenance-free thanks to LED technology
Daisy chain (up to 10 lights)
On/off switch or motion detector
Mounting kit for magnet, screw and clip fixing
LED 025 | |
Power consumption | max. 5W |
Luminosity | 400Lm at 120° (1,200Lm at 360° or equivalent 95W light bulb) |
Lamp type | LED, angle of radiation 120° light color: daylight, color temperature: 6,000K to 7,000K |
Service life | 60,000h at +20°C (+68°F) |
Connection | 2-pole connector with snap lock AC: max. 2.5A / 240VAC, color: white DC: max. 2.5A / 60VDC, color: blue |
Mounting | magnet fixing or screw fixing (M5), clip fixing (M6), torque 2Nm max. |
Casing | plastic, transparent |

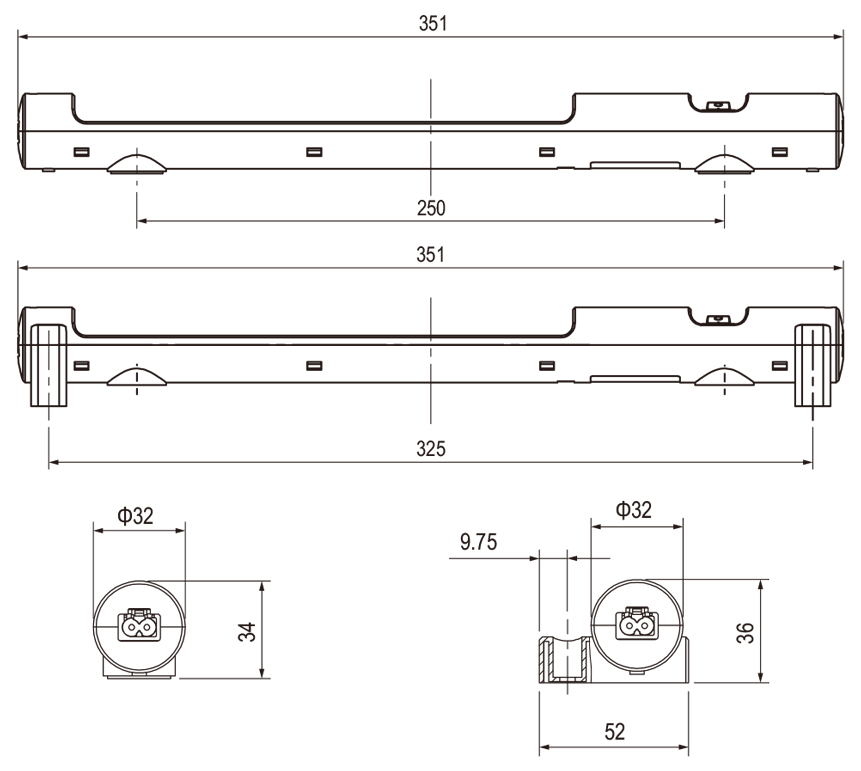

Dimensions | see drawings |
Weight | 0.2kg |
Operating/Storage temperature | -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F) |
Operating/Storage humidty | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Mounting options: The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. A classic is the LED 025 with screw fixing. The clip holders exclusively designed for clip fixing of the LED 025 can be positioned anywhere in the cabinet by simply screwing the holders to the cabinet wall. The lamp is snapped into the clip holders and can be turned in both directions. With a total rotation angle of 180° it provides perfect illumination within the cabinet or enclosure.
Note: The lamp must not be used for household lighting.
PRODUCTS VARIANTS
Art. No. | Fixing type | Switch | Operating voltage |
02540.0-00 | Magnet fixing | on/off light switch | 48-265VAC/DC(min. 48V, max. 265V) |
02540.0-01 | Screw fixing | on/off light switch | 48-265VAC/DC(min. 48V, max. 265V) |
