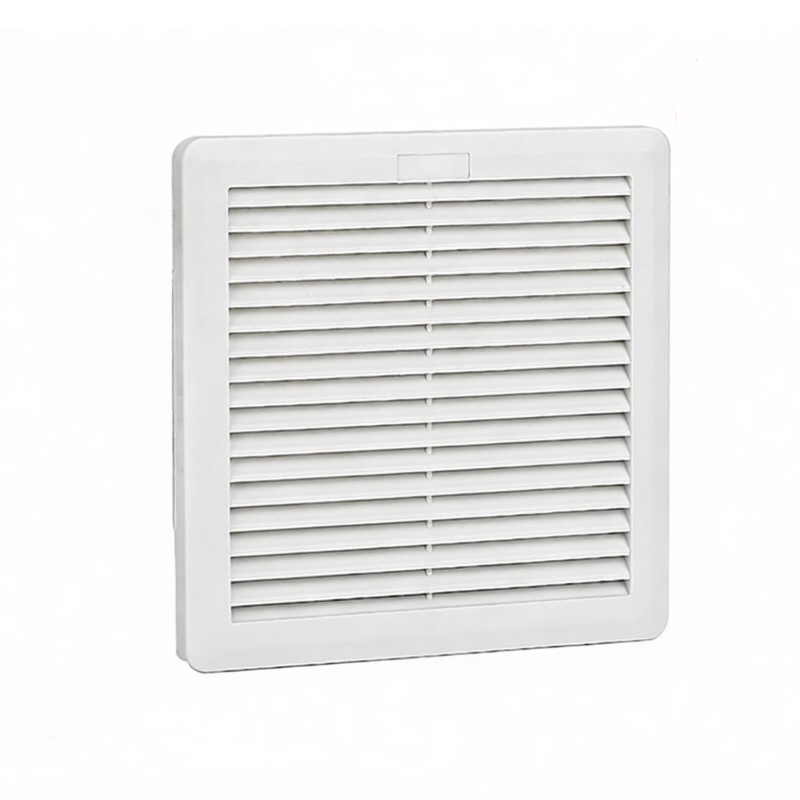

Filter Fan SF200


Availability:

Quantity:



Inquire Add to Basket

SF200

Optimal control cabinet cooling is an investment in long-term success. Prevent excessive temperatures, which can occur in tightly fitted control cabinets and may lead to malfunctioning of electrical and electronic components. Our filter fans and fans for control cabinets reliably prevent overheating and damage to components.

Model:
SF200
Brand:
YUZEY

Filter Fan Cabinet Filter Fan Enclosure Filter Fan industrial filter fan exhaust fan Fan Filter ventilation fan Stego Filter Fan cabinet fan cabinet filter

Product Description

SF200

Optimal control cabinet cooling is an investment in long-term success. Prevent excessive temperatures, which can occur in tightly fitted control cabinets and may lead to malfunctioning of electrical and electronic components. Our filter fans and fans for control cabinets reliably prevent overheating and damage to components.

OVERVIEW TECHNICAL DATA

Axial fan, ball bearing	service life L10 at +40°C (+104°F): min. 37,000 h, fan body aluminium, rotor metal
Connection	3-pole clamp for 2.5mm², clamping torque 0.8Nm max.
Enclosure cut-out	177 x 177mm
Mounting frame	Screw Fixing Type, Easy to open the cover
Filter mat	G4 acc. to DIN EN 779, filtering degree 94%
Filter material	New ABS material confirm to RoHS, Fireproof or not fireproof can be choose
Operating/Storage temperature	-25 to +65°C (-13 to +149°F) / -40 to +70°C (-40 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP54 / I (earthed)

PRODUCTS VARIANTS

Model	Power Supply	Fan Size (mm)	Air Flow Rate (free blow) (m3/h)	Air flow Rate (with Mat) (m3/h)	Power Consumption (W)	Current Consumption (A)	Noise Level (dBA)
SF200	-	without fan	-	-	-	-	-
SFF200A-230A-C	230VAC	120×120×38	138/162	100	21/18	0.12	43/48
SFF200A-230B-C	230VAC	120×120×25	96/112	65	45640	0.07	43/48
SFF200-230C-C	230VAC	150×150×50	272/316	200	26/28	0.23/0.2	54/59
SFF200-230D-C	230VAC	Ø172×55	272/316	200	26/28	0.23/0.2	52/62
SFF200-230E-C	230VAC	172×150×51	272/316	200	26/28	0.23/0.2	52/62
SFF200A-115A-C	115VAC	120×120×25	96/112	65	21/18	0.22/0.18	43/48
SFF200A-115B-C	115VAC	120×120×38	138/162	100	21/18	0.22/0.18	43/48
SFF200-115C-C	115VAC	150×150×50	272/316	200	26/28	0.43/0.4	54/59
SFF200-115D-C	115VAC	Ø172×55	272/316	200	26/28	0.43/0.4	52/62
SFF200-115E-C	115VAC	172×150×51	272/316	200	26/28	0.43/0.4	52/62
SFF200A-D1-C	120&230VAC	120×120×38	138/162	100	19/15	0.18/0.12	43/48
SFF200-D2-C	120&230VAC	172×150×51	272/316	200	26/28	0.13/0.11	52/62
SFF200A-400A-C	400VAC	120×120×38	138/162	100	21/18	0.09/0.07	43/48
SFF200-400B-C	400VAC	150×150×50	138/162	200	26/28	0.13/0.11	43/48
SFF200-400C-C	400VAC	Ø172×55	272/316	200	26/28	0.13/0.11	52/62
SFF200-400D-C	400VAC	172×150×51	272/316	200	26/28	0.13/0.11	52/62
SFF200A-12A-C	12VDC	120×120×38	180	120	7.2	0.6	48
SFF200-12B-C	12VDC	172×150×51	374	260	12	1	62
SFF200A-24A-C	24VDC	120×120×38	180	120	9.6	0.4	48
SFF200-24B-C	24VDC	172×150×51	374	260	12	0.5	48
SFF200A-48A-C	48VDC	120×120×38	180	120	9.6	0.2	48
SFF200-48B-C	48VDC	172×152×51	374	260	12	0.25	48
